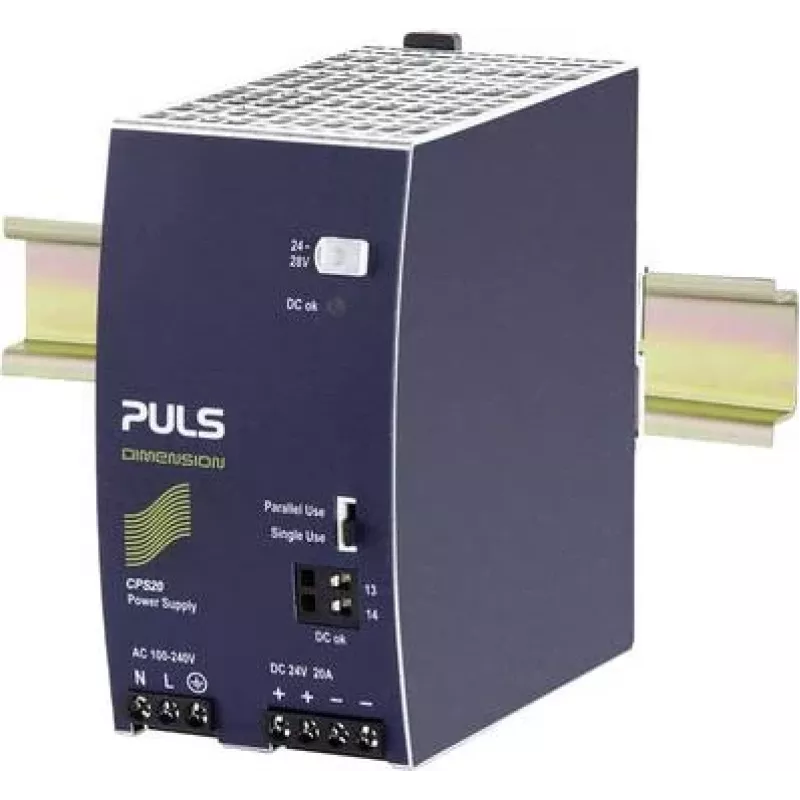

PULS DIMENSION CPS20.241 fuente de alimentación para carril DIN 24V DC 20A 480W

DIN rail power supply delivering 24 V DC at 20 A with 480 W output, engineered for industrial control panels and automation systems. Its active power factor correction and 95.2% efficiency ensure stable performance across a wide input range.

Advantages

High efficiency reduces energy costs and heat generation. Convection cooling eliminates fan noise and maintenance. Adjustable output voltage from 24 to 28 V DC allows fine-tuning for specific loads. Robust protection features safeguard against overload, short circuits, and overtemperature.

Suitable for

• Industrial automation and control systems
• Machinery requiring reliable 24 V DC power
• Building automation and process control
• Test and measurement equipment

Key specifications

• Output: 24 V DC (adjustable 24–28 V DC), 20 A, 480 W
• Input: 100–240 V AC nominal (85–264 V AC operating), 110–150 V DC
• Efficiency: 95.2% at 230 V AC, full load
• Mounting: DIN rail TS35/7.5 or TS35/15
• Operating temperature: -25 °C to +70 °C
• Protection: overload, short-circuit, output overvoltage, overtemperature
• Connection: screw terminals
• Degree of protection: IP20
• Cooling: convection, fanless

Recommendations

Verify input voltage and load requirements before installation. Mount in an enclosure with adequate ventilation and ensure proper wiring torque on screw terminals.
