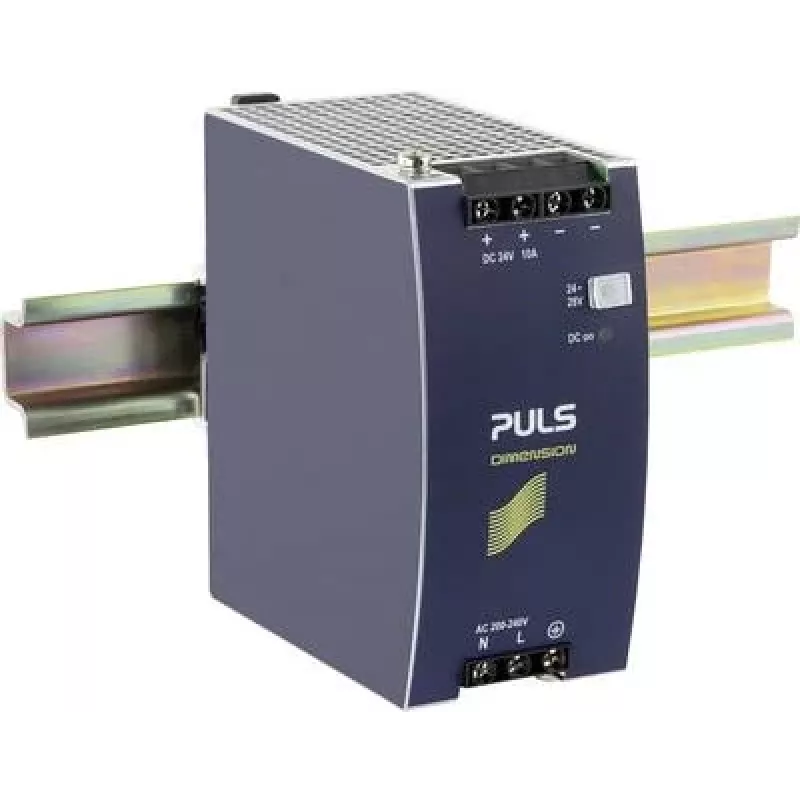

PULS DIMENSION CS10.244 fuente de alimentación para carril DIN 24V DC 10A 240W

Industrial control systems and automation equipment demand a reliable DC power source that fits directly onto a DIN rail and delivers stable 24 V output under varying loads. The PULS DIMENSION CS10.244 solves this by converting a wide range of AC or DC input voltages into a regulated 24 V DC output with up to 10 A current and 240 W power, in a compact convection-cooled housing that requires no fan and mounts on standard TS35 rails.

Who is it for

This power supply is built for system integrators, panel builders, and maintenance engineers who need a dependable DIN rail power unit for industrial machinery, process control, or building automation. It suits applications where space is limited, ambient temperatures vary, and downtime is not an option.

Main features

• Wide input voltage range: 100-240 V AC (85-264 V AC) or 88-300 V DC
• Nominal output: 24 V DC, 10 A, 240 W
• Output voltage adjustable from 24 to 28 V DC
• High efficiency up to 94.5% at 230 V AC
• Convection cooling, no fan, silent operation
• Overload and short circuit protection with hiccup mode and auto-recovery
• Hold-up time greater than 20 ms at 230 V AC and 240 W
• Parallel operation supported for redundancy or increased power
• MTBF over 1,000,000 hours per IEC 61709
• Screw terminal connections

Specifications

• Input voltage AC: 100-240 V AC (85-264 V AC)
• Input voltage DC: 88-300 V DC
• Nominal output voltage: 24 V DC
• Output voltage adjustment range: 24-28 V DC
• Nominal output current: 10 A
• Nominal output power: 240 W
• Efficiency: up to 94.5% at 230 V AC, 24 V, 10 A
• Mounting: DIN rail TS35/7.5 or TS35/15
• Operating temperature: -25°C to +70°C
• Protection class: IP20
• Overload protection: yes, hiccup mode, auto-recovery
• Short circuit protection: yes, hiccup mode, auto-recovery
• Hold-up time: > 20 ms at 230 V AC, 240 W
• Cooling: convection, no fan
• MTBF: > 1,000,000 hours (IEC 61709)
• Connection: screw terminals
• Parallel operation: yes
• Safety standards: UL 60950-1, UL 508, IEC/EN 60950-1, IEC/EN 62368-1

Tips

Ensure adequate ventilation around the unit to maintain the specified operating temperature range. For redundant power systems, connect multiple units in parallel as supported. Use appropriate wire sizes for the screw terminals to handle the rated current.
