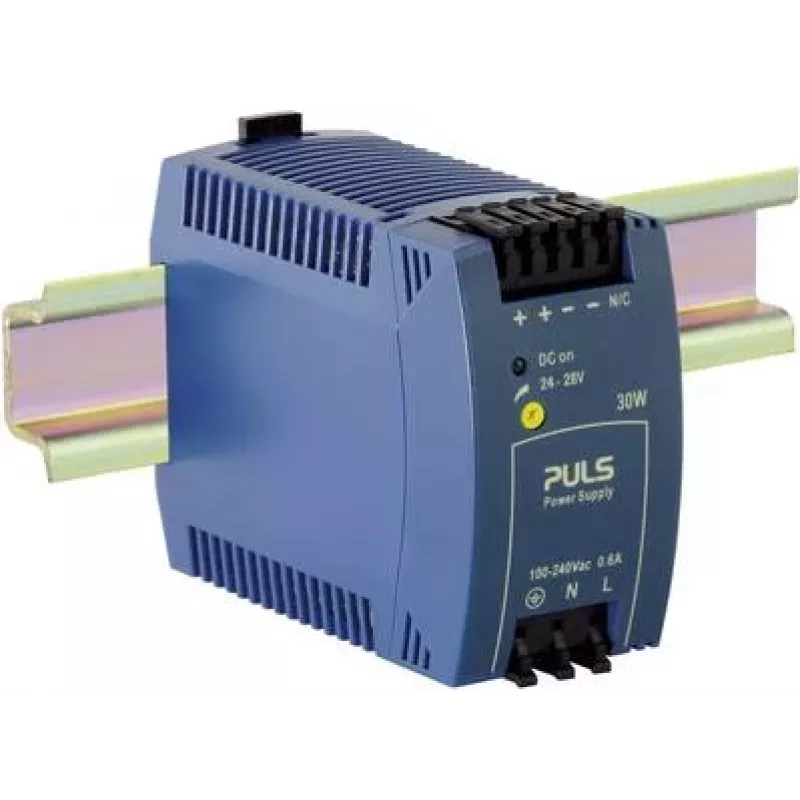

PULS MiniLine ML30.100 fuente de alimentación para carril DIN 24V DC 1,3A 30W

The PULS MiniLine ML30.100 is a compact DIN rail power supply that delivers 24 V DC at 1.3 A, providing 30 W of reliable power in a space-saving plastic housing. Unlike many power supplies in its class, it offers a wide input voltage range of 85–264 V AC and 110–150 V DC, making it suitable for a variety of industrial applications worldwide.

Highlights

• Output: 24 V DC, 1.3 A, 30 W
• Wide input range: 85–264 V AC, 110–150 V DC
• High efficiency: 87.5% at 230 V AC
• DIN rail mounting (TS35/7.5 or TS35/15)
• Compact plastic housing, IP20 protection
• Adjustable output voltage: 24–28 V DC

In daily use

The ML30.100 is designed for reliable operation in industrial control panels and automation systems. Its screw terminals provide secure connections, and the built-in protections against overload, short-circuit, over-temperature, and over-voltage ensure long-term stability. The operating temperature range of -10°C to +70°C allows use in demanding environments, while the hold-up time of more than 20 ms at 230 V AC helps bridge short power interruptions.

Full specifications

• Output voltage: 24 V DC
• Output current: 1.3 A
• Output power: 30 W
• Input voltage AC: 85–264 V AC
• Input voltage DC: 110–150 V DC
• Input frequency: 45–65 Hz
• Efficiency: 87.5% at 230 V AC
• Ripple & noise: < 50 mVpp
• Output voltage adjustment: 24–28 V DC
• Hold-up time: > 20 ms at 230 V AC
• Operating temperature: -10°C to +70°C
• Protection: overload, short-circuit, over-temperature, over-voltage
• Connection: screw terminals
• Degree of protection: IP20
• MTBF: > 1,000,000 h
• Housing material: plastic

Final note

The PULS MiniLine ML30.100 combines proven reliability with a compact design, making it a solid choice for powering sensors, controllers, and other 24 V DC devices in industrial settings.
