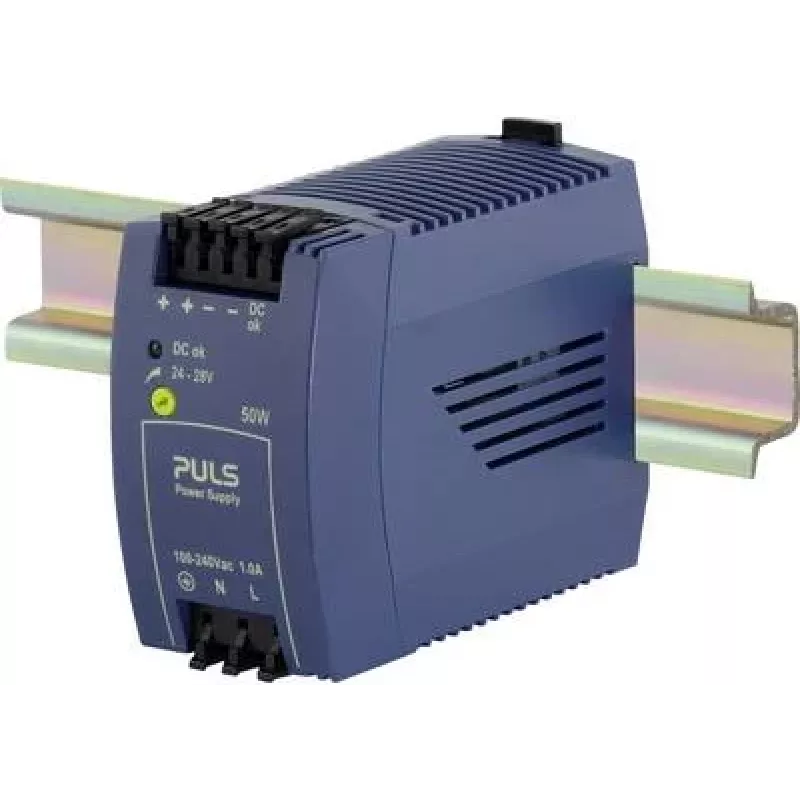

PULS ML50.101 fuente de alimentación para carril DIN 24V 2,1A 50W

DIN rail power supply unit delivering a stable 24 V DC output with 2.1 A current and 50 W power, ideal for industrial control systems and automation applications.

Advantages

High efficiency of 90.5% reduces energy consumption and heat generation. Wide input voltage range of 90-264 V AC ensures compatibility with various mains supplies. Robust metal housing with plastic front provides durability in demanding environments. Screw terminals allow secure and easy wiring. Protection against overload, short circuit, overvoltage, and overtemperature enhances system reliability.

Suitable for

• Industrial automation and control cabinets
• Building automation systems
• Machine building and process control
• Test and measurement equipment

Key specifications

• Output: 24 V DC, 2.1 A, 50 W
• Input: 90-264 V AC, 45-65 Hz
• Efficiency: 90.5%
• Mounting: DIN rail TS35/7.5 or TS35/15
• Operating temperature: -25 to +70 °C
• Output voltage adjustment: 24-28 V DC
• Ripple & noise: <50 mVpp
• MTBF: >1,000,000 hours
• Approvals: UL 60950-1, UL 508, IEC/EN 60950-1, CE, RoHS, EAC

Recommendations

For reliable 24 V DC power in industrial environments, the PULS ML50.101 offers high efficiency and comprehensive protection in a compact DIN rail format.
