PULS ZM1.WALL soporte de montaje en pared para fuentes de alimentación para carril DIN

Convert any PULS DIN-rail power supply into a fixed screw-mount installation with the ZM1.WALL bracket. Precision-formed from galvanized steel, it provides a corrosion-resistant mounting platform for industrial environments.

Overview

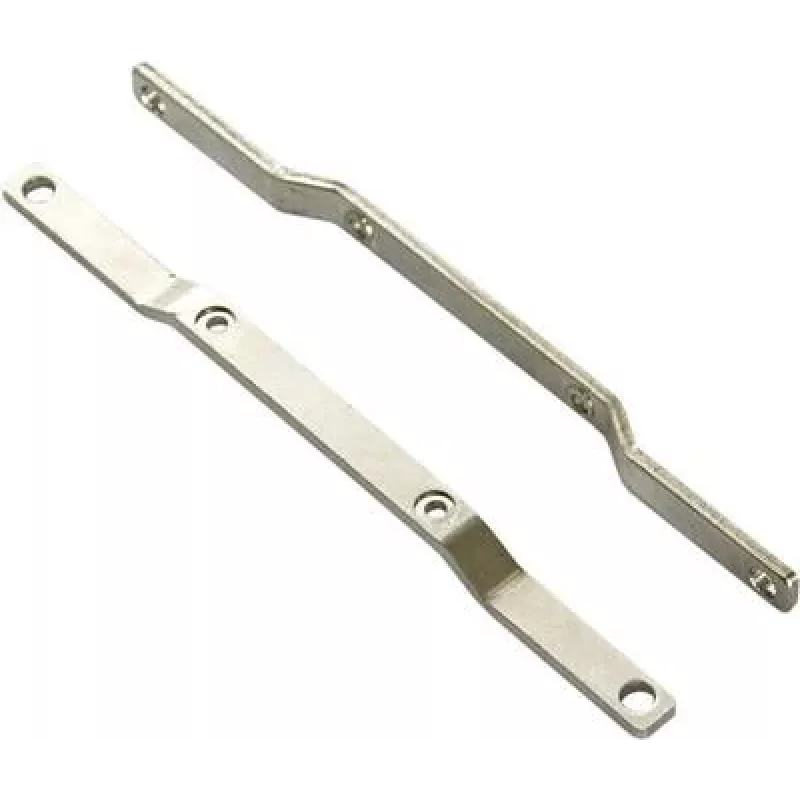

The PULS ZM1.WALL is a wall mounting bracket engineered for the DIMENSION, PIANO, and MINI LINE series power supplies. It allows direct attachment to walls or flat surfaces, eliminating the need for DIN rails in permanent installations.

What stands out

• Galvanized steel construction for long-term durability
• Multiple screw holes for secure wall fixation
• Utilizes existing DIN-rail mounting points on the PSU
• Flexible mounting orientation (vertical or horizontal)

Technical details

• Product Type: Wall Mounting Bracket
• Material: Steel
• Mounting Method: Screw Mount
• Compatibility: PULS DIMENSION, PIANO, MINI LINE series
• Color: Metallic (Galvanized Steel)
• Installation Type: Fixed Installation
• Corrosion Resistance: Yes
• Manufacturer Series: ZM1

Our verdict

A simple, robust solution for panel builders and machine integrators who need to mount PULS power supplies without a DIN rail.
