Pulsador antivandálico DimasTech PD220 de 25 mm Blackline Dot RGB

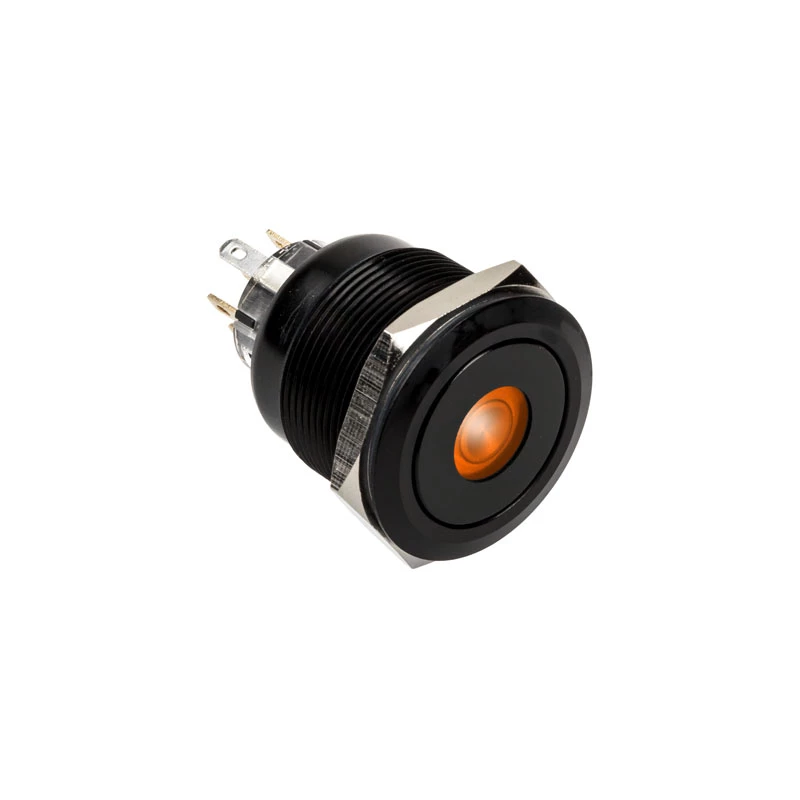

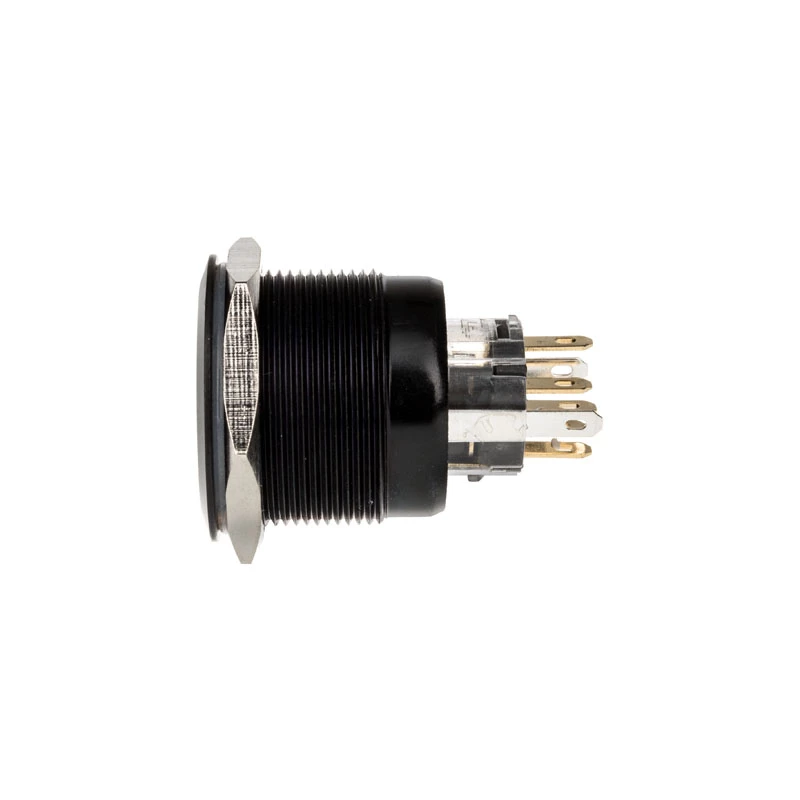

The DimasTech PD220 vandal-resistant 25mm push button Blackline Dot RGB is a compact illuminated mechanical switch intended for control panels and public installations. Its 25 mm actuator and robust metal housing provide resistance to tampering and heavy use, while the integrated RGB LED allows multicolour indication for status, mode or feedback. The switch is designed for applications where a small footprint, visible signalling and durable construction are required.

Advantages

The push button combines a vandal-resistant metal bezel and a sealed actuator to protect internal contacts from force and contaminants. RGB illumination enables colour coding of states without additional indicators. The compact 25 mm diameter saves panel space and the mechanical switching mechanism provides tactile feedback and reliable operation over repeated cycles.

Suitable for

• Access control panels and entry systems
• Industrial control panels and machine interfaces
• Self-service kiosks, ticketing and vending machines
• Public installations, transport terminals and information points

Key specifications

• Actuator diameter: 25 mm

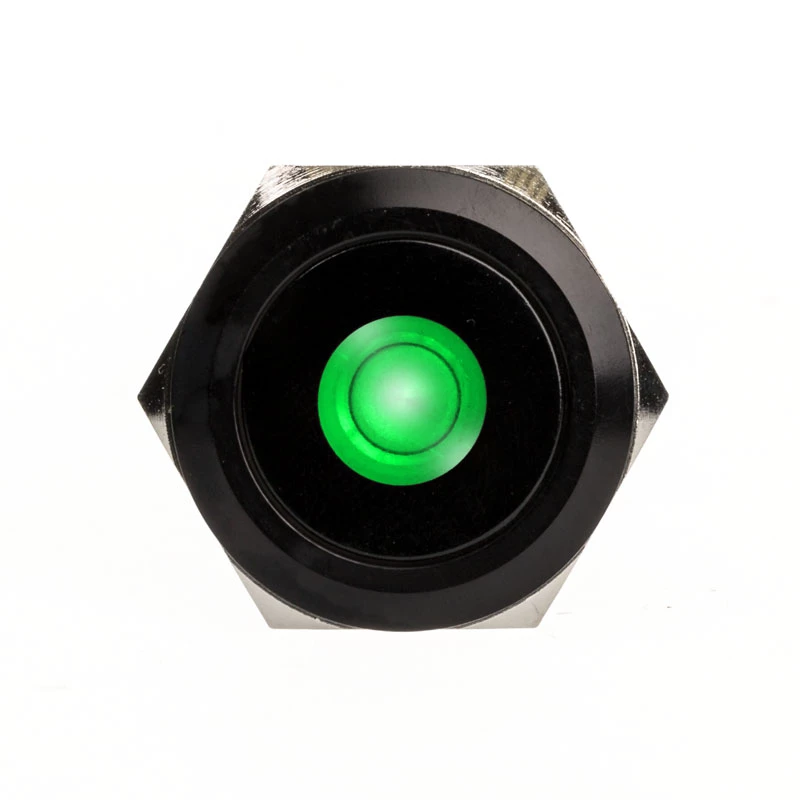

• Illumination: integrated RGB LED for multicolour indication
• Construction: metal bezel with sealed actuator for vandal resistance
• Switch type: mechanical push button with tactile feedback

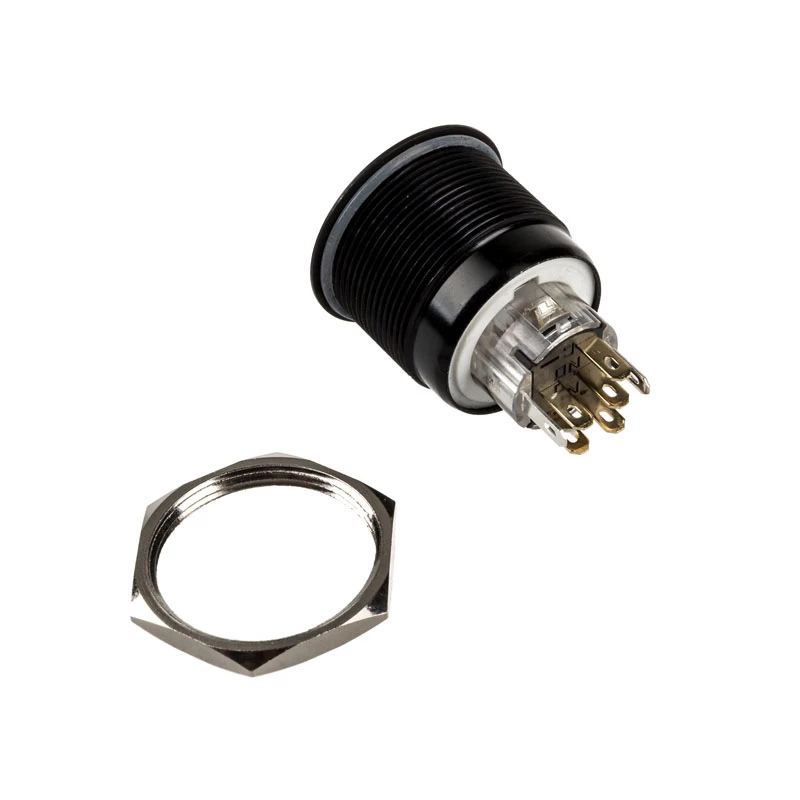

• Mounting: panel mount designed for control panel installation
• Colour: black bezel and actuator (Blackline finish)

How to use

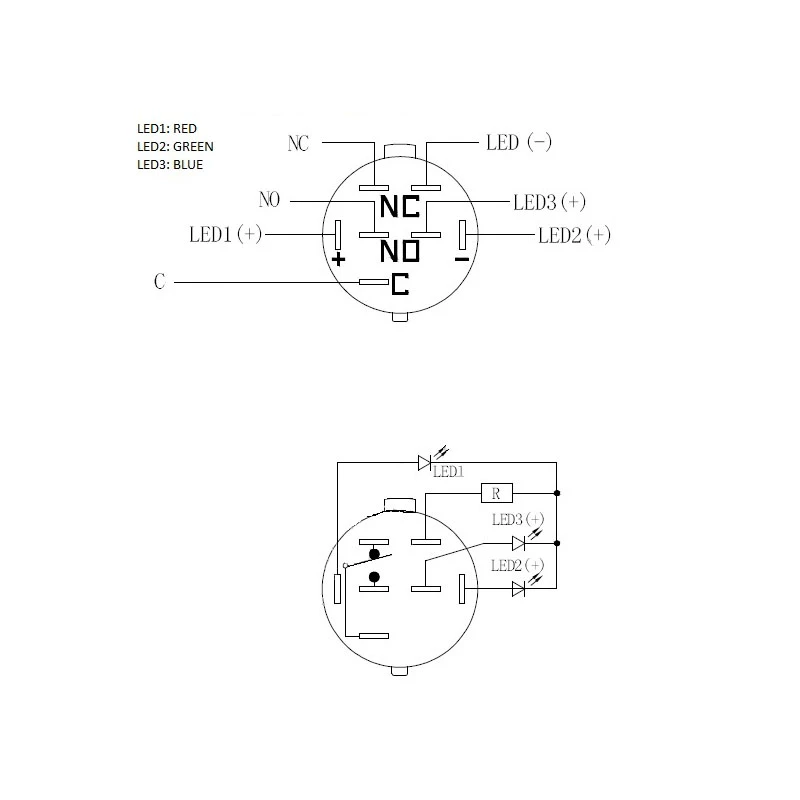

Install the push button into the panel cut-out sized for a 25 mm actuator and secure it according to the manufacturer’s mounting method. Connect the LED leads to the control circuitry or driver that provides the required RGB signalling and wire the switch contacts into the control or signalling circuit. Use appropriate protection and wiring practices for the installation environment, and verify correct colour mapping and switching function before putting the system into regular operation.

Recommendations

For best long-term performance, mount the switch in panels with adequate reinforcement to prevent housing deformation and route wiring to avoid mechanical strain. Use a suitable LED driver or controller to manage RGB colours and brightness, and select contact wiring consistent with the voltage and current limits of the connected control equipment.
