Pulsador DELOCK 22049 22 mm, 5× conexiones de soldadura, montaje en panel

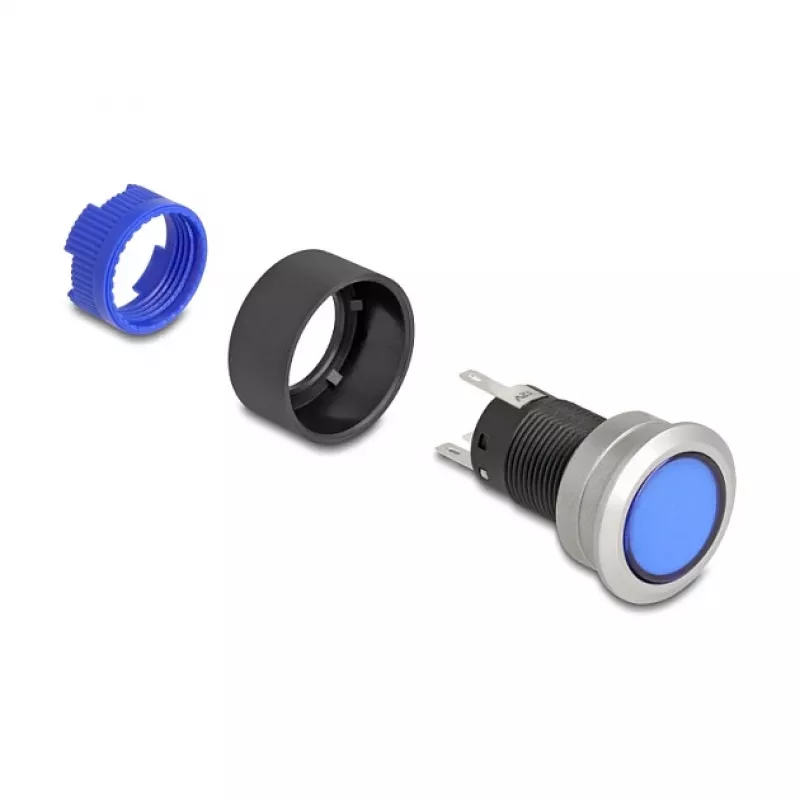

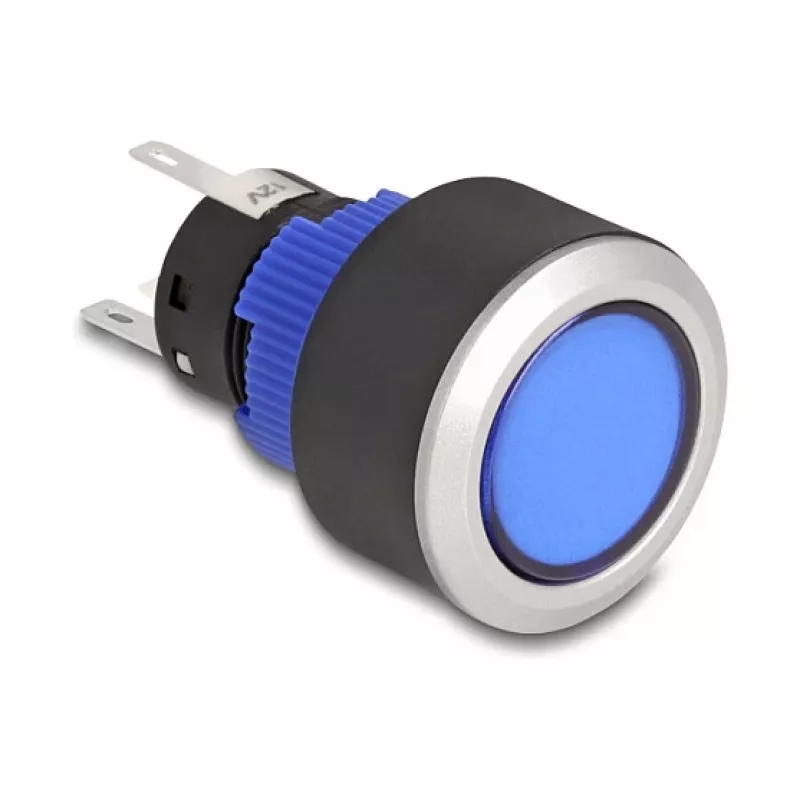

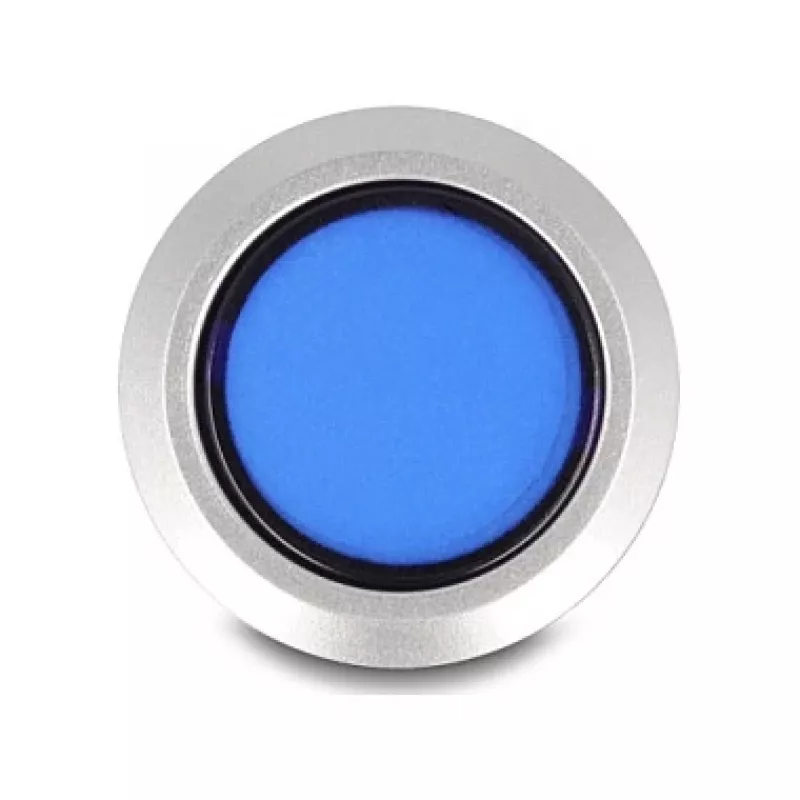

DELOCK Push Button 22 mm model 22049 is a panel-mount switch designed for installation in control panels, instrument housings, and custom electronic assemblies. The switch features a 22 mm mounting diameter and five solder terminals that allow for flexible wiring and reliable soldered connections. It can be used to implement on/off switching or configured for momentary control depending on the wiring and circuit design.

Advantages

This push button provides a compact footprint suitable for standard 22 mm panel holes and robust solder terminals that simplify permanent connections. The panel-mount design ensures secure mechanical fixation and consistent actuation. Its construction is intended for reliable electrical contact and straightforward integration into control panels, test rigs, and enclosures where a manual input is required.

Suitable for

• Control panels and operator consoles
• Industrial and laboratory equipment front panels
• Custom electronic enclosures and prototypes
• Switching circuits requiring soldered terminal connections

Key specifications

• Mounting diameter: 22 mm panel hole

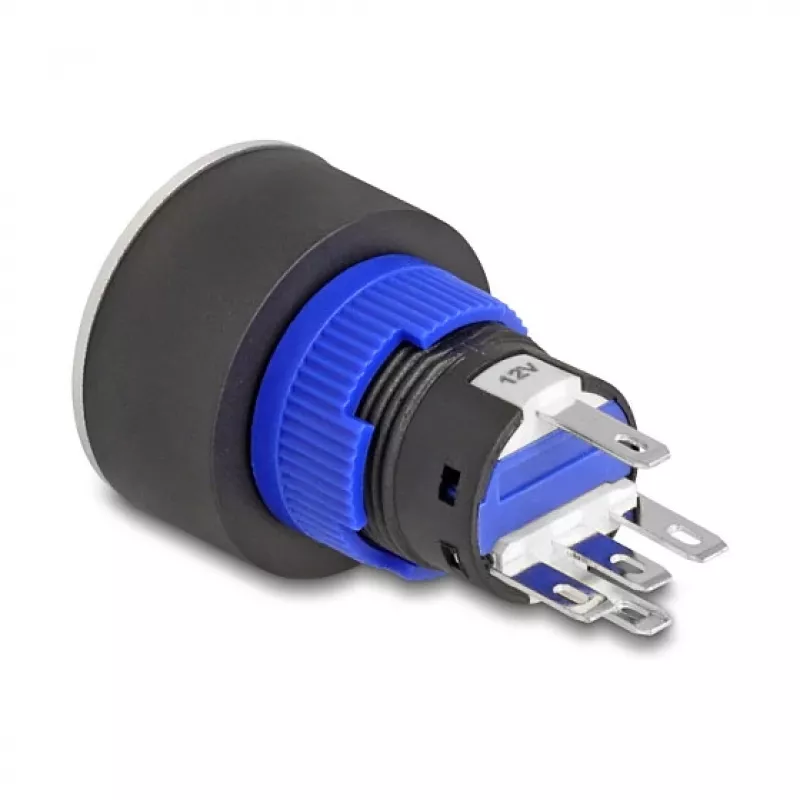

• Terminal type: five solder terminals for electrical connections
• Mounting style: panel-mount
• Actuation: manual push button suitable for on/off or momentary configurations depending on wiring
• Construction: durable housing designed for panel integration

How to use

Drill or prepare a 22 mm diameter cutout in the panel where the push button will be installed. Insert the switch from the front side of the panel and secure it according to the product's panel-fixing mechanism. Connect wires by soldering them to the five solder terminals in the arrangement required by the circuit—observe polarity and contact assignments defined by your wiring diagram. After soldering, verify connections with a continuity tester before applying power. Ensure the panel and surrounding enclosure provide adequate strain relief and insulation for the soldered leads.

Recommendations

Use suitable solder and correct soldering temperature to avoid damage to the terminals. Verify that the switch's mechanical mounting is secure and that the panel material can support repeated actuation. For safety and reliable operation, follow applicable electrical standards and protect exposed solder joints from short circuits and mechanical stress.
