Pulsador Hager WDE505601 1 polo 1 NA 250 V AC 10 A montaje empotrado

Rated for 10 A at 250 V AC, this 1-pole push-button delivers reliable momentary switching in a single modular unit. The flush-mounted design integrates seamlessly into standard wall boxes, while screw terminals accept rigid conductors from 1.5 to 2.5 mm².

Overview

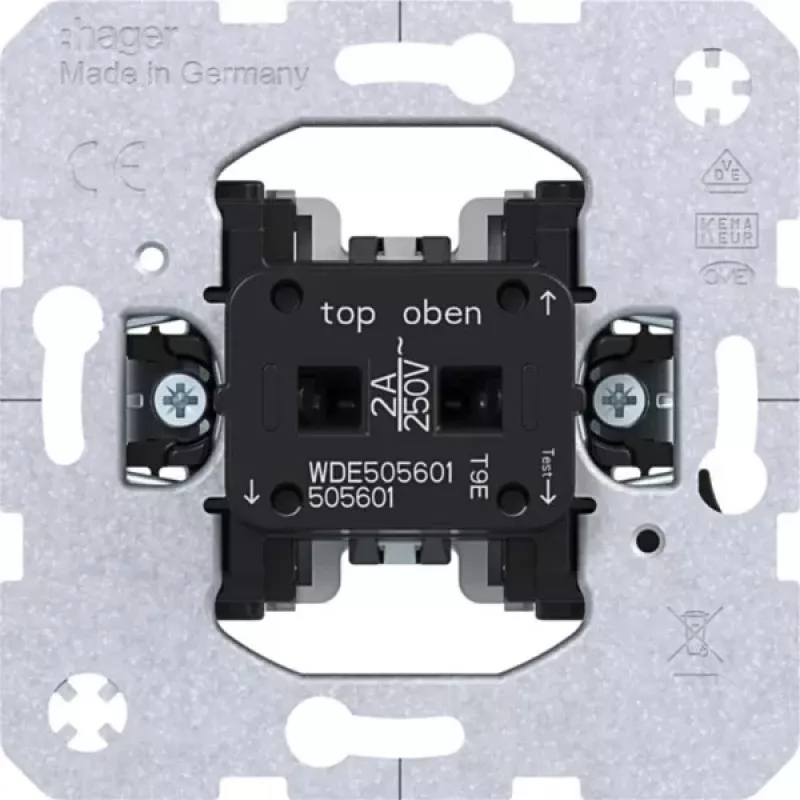

The Hager WDE505601 is a mechanical push-button switch with a 1 NO (normally open) contact configuration. It is built from halogen-free thermoplastic and rated IP20 for indoor use. The modular insert is compatible with Hager frames and covers, making it suitable for lighting control, doorbells, or signaling circuits.

What stands out

• 1 NO contact for momentary switching
• 10 A / 250 V AC rating handles common lighting loads
• Flush-mounted, 1-module design fits standard installations
• Halogen-free thermoplastic housing
• Screw terminals for secure wiring

Technical details

• Switch type: Push-button (momentary)
• Number of poles: 1
• Contact configuration: 1 NO
• Rated voltage: 250 V AC
• Rated current: 10 A
• Mounting type: Flush-mounted
• Connection type: Screw terminals
• Material: Thermoplastic
• Halogen-free: Yes
• IP protection class: IP20
• Operating temperature range: -5 to +40 °C
• Terminal capacity (rigid): 1.5 - 2.5 mm²
• Number of modules: 1

Our verdict

A straightforward, dependable push-button for standard indoor switching tasks. Its halogen-free construction and Hager system compatibility make it a practical choice for new installations or replacements.
