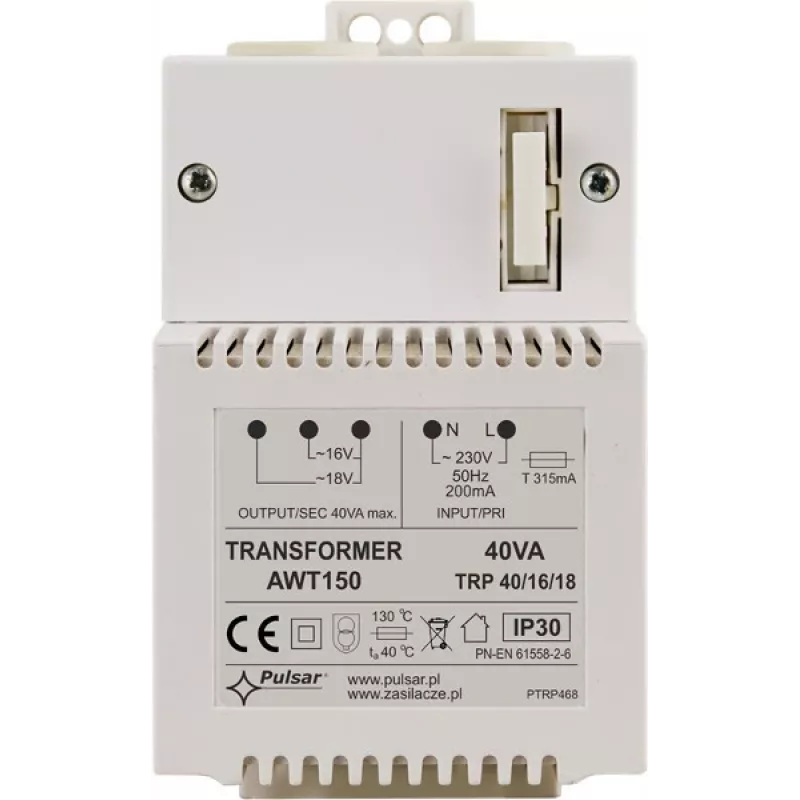

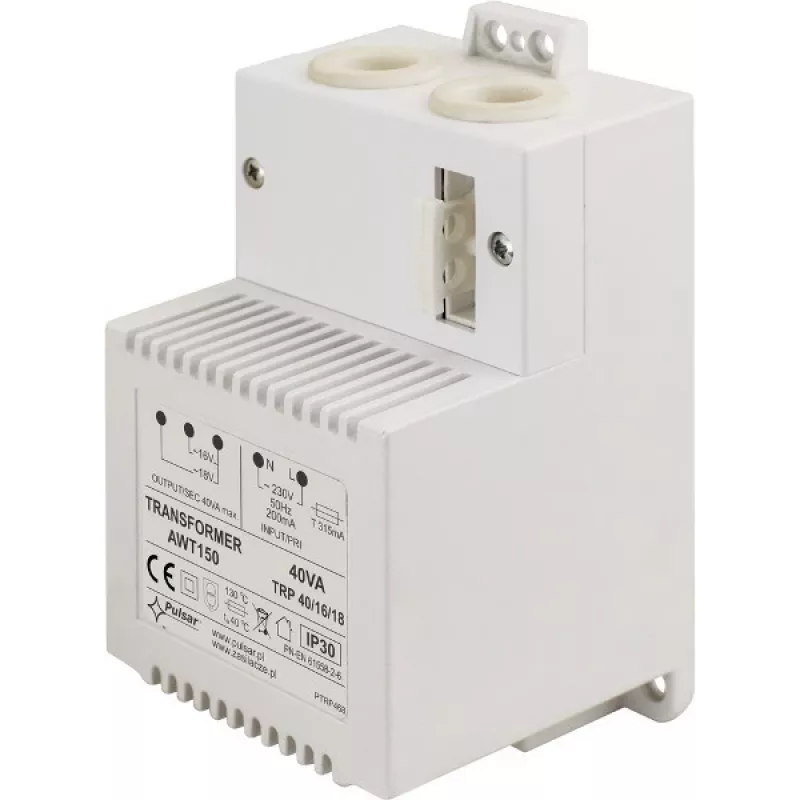

Pulsar AWT150 Transformador de alimentación 40VA 16V/18V AC

The Pulsar AWT150 is a high-quality AC power transformer designed for security systems, access control, and general electronics. With a robust 40VA apparent power rating, it provides dual output voltages of 16V AC (2.5A) and 18V AC (2.22A) for versatile applications. Encapsulated construction and Class II insulation ensure safety and durability, while overload and short-circuit protection safeguard connected devices.

Advantages

Reliable dual-output transformer with screw terminals for easy panel mounting. Compact and efficient design suitable for continuous operation in demanding environments.

Suitable for

• Security systems and alarms
• Access control systems
• General electronic devices requiring AC power

Key specifications

• Input: 230V AC, 50/60 Hz
• Output 1: 16V AC / 2.5A
• Output 2: 18V AC / 2.22A
• Power: 40 VA
• Protection: Overload, Short-circuit
• Mounting: Panel mount with screw terminals
• Operating temperature: -10°C to +40°C
• Insulation class: Class II
• Enclosure rating: IP20
• Compliance: CE

Recommendations

Ideal for powering access control panels, CCTV cameras, and other security electronics. Ensure proper ventilation and avoid exposure to moisture.
