Pulsar AWZ514 Módulo de relé, 1x SPDT, 10-16V DC, 1A, bornes de tornillo

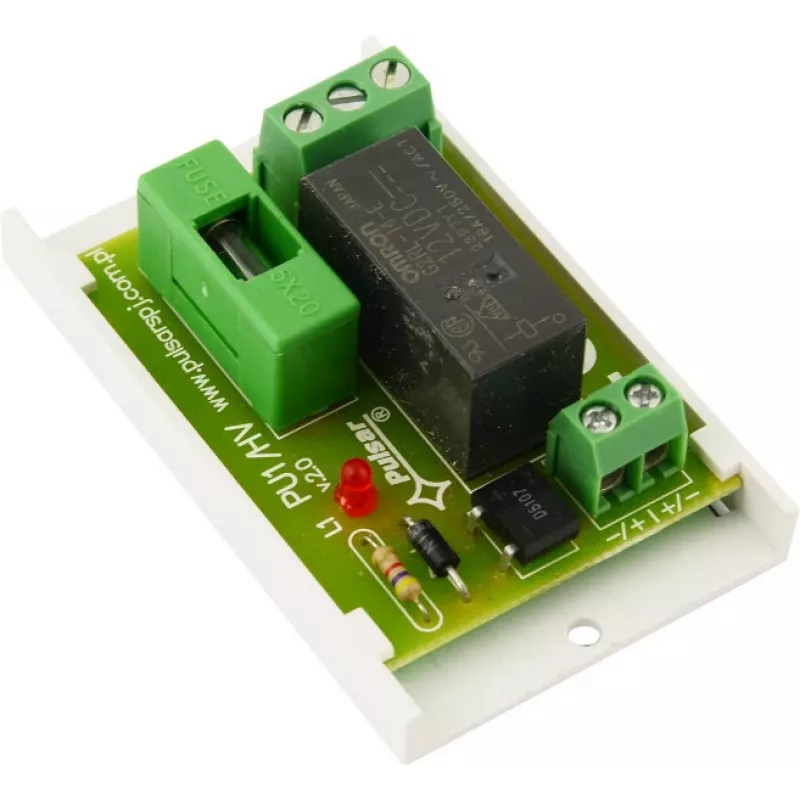

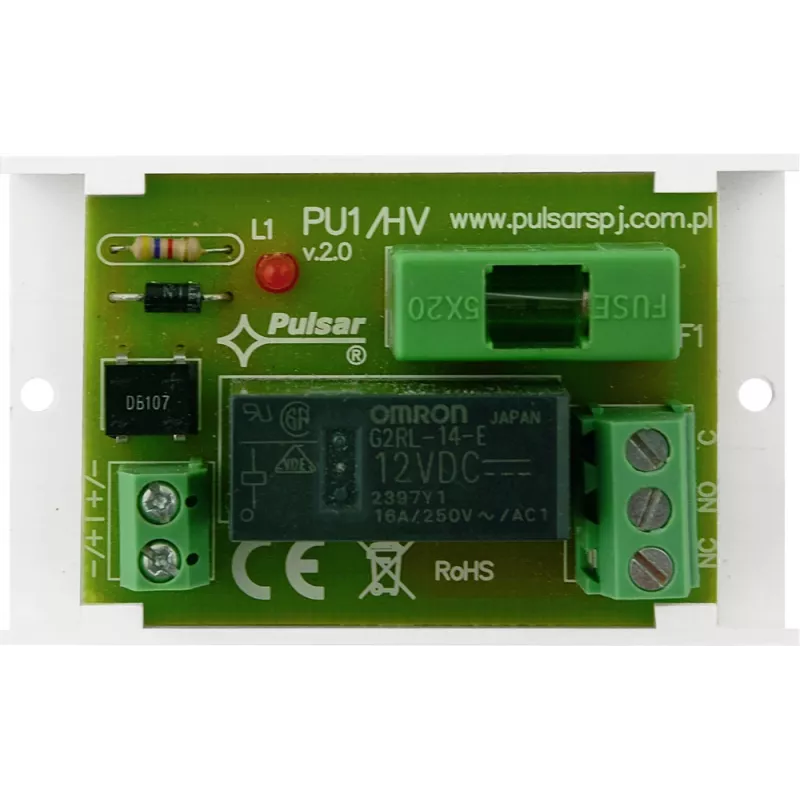

The Pulsar AWZ514 is a high-quality relay module designed for use in alarm systems, access control, CCTV, and automation applications. It features a single SPDT (Single Pole Double Throw) relay with screw terminals for secure connections. The module operates on a 10-16V DC input voltage and supports a maximum contact current of 1A at up to 30V DC or 50V AC. It includes a LED indicator for relay status and offers protection features such as short-circuit and reverse polarity protection. The surface-mount design allows for easy installation in various enclosures.

Advantages

Reliable switching with galvanic isolation between coil and contacts ensures safe operation. The LED indicator provides clear visual feedback of relay status. Screw terminals simplify wiring and maintenance. Protection features safeguard the module and connected equipment.

Suitable for

• Alarm systems
• Access control systems
• CCTV systems
• Automation projects

Key specifications

• Number of Relays: 1
• Relay Type: SPDT
• Input Voltage (Coil): 10-16V DC
• Max Contact Current: 1A
• Max Contact Voltage (DC): 30V DC
• Max Contact Voltage (AC): 50V AC
• Contact Configuration: C (Common), NO (Normally Open), NC (Normally Closed)
• Terminal Type: Screw terminals
• LED Indicator: Yes (Relay status)
• Operating Temperature: -10°C to +40°C
• Protection Features: Short-circuit protection (SCP), Reverse polarity protection
• Mounting Type: Surface mount
• Galvanic Isolation: Yes

Recommendations

For optimal performance, ensure the input voltage is within the specified range and the load does not exceed the maximum contact ratings. Use appropriate gauge wire for screw terminals.
