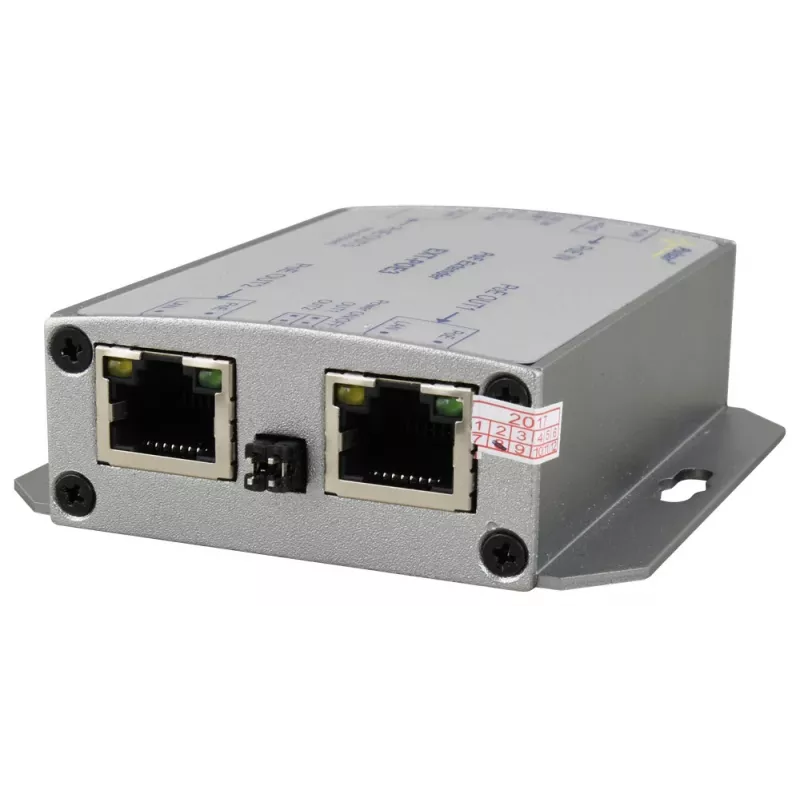

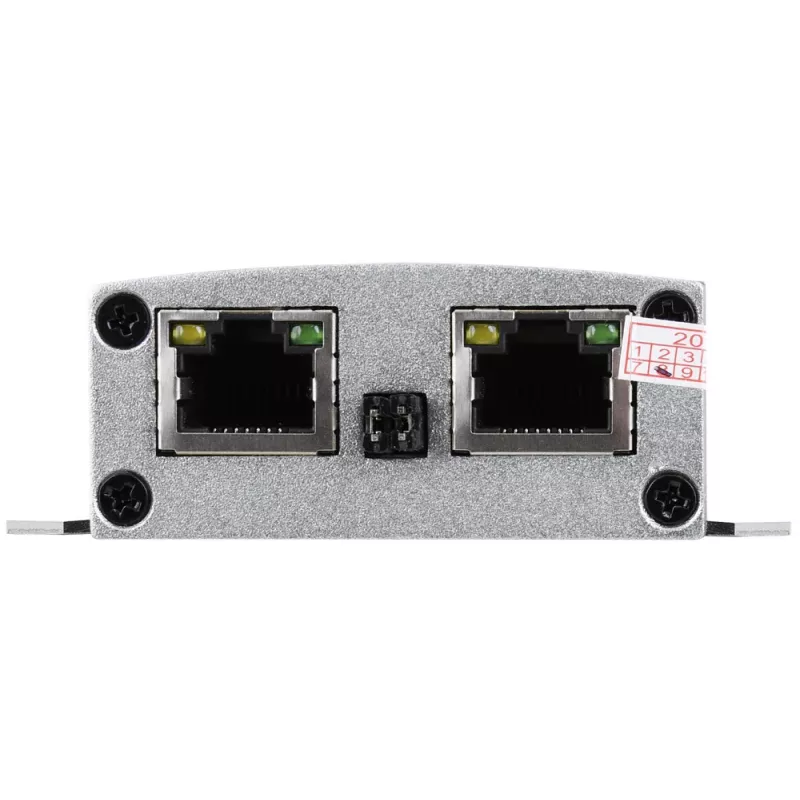

Pulsar EXT-POE3 extensor PoE para 3 cámaras IP

The Pulsar EXT-POE3 is a PoE extender designed to increase the range of Ethernet data and PoE power by an additional 100 metres. It allows three PoE IP cameras to be connected using a single cable.

Key features

• Extends Ethernet data and PoE power range by an additional 100 m
• Enables connection of three PoE IP cameras using one cable
• PoE IN input compliant with IEEE802.3af/at
• PoE OUT1 and PoE OUT2 outputs compliant with IEEE802.3af/at
• PoE OUT3 output not compliant with IEEE802.3af
• PoE output current: 0.6 A per port for OUT1/OUT2; 0.3 A per port for OUT3 (total 0.6 A max.)
• Protections: OLP, SCP
• Designed for operation in 10 Mbit/s and 100 Mbit/s networks
• Optical indication of operating status
• Mounting: mounting screws

Specifications

• Brand: Pulsar
• Model: EXT-POE3
• Power supply: compliant with 802.3af/at (44–57 VDC)
• Current consumption of module circuits: <30 mA
• Module power: 30 W max.
• Output voltage: compliant with supply voltage
• Output current: 0.6 A for PoE OUT1/2 ports, 0.3 A for PoE OUT3 port (Σ=0.6 A max.)
• Input power pairs: PoE IN 1/2 (+), 3/6 (−), 4/5 (+), 7/8 (−)
• Output power pairs: PoE OUT1/2 4/5 (+), 7/8 (−)
• Overload protection: OLP
• Short-circuit protection: SCP
• PoE OUT1/2: 105% ÷ 150% of rated output current, automatic recovery
• PoE OUT3: PTC 0.5 A, polymer fuse
• Optical signalling: LAN LED (yellow) – LAN connection status; PoE LED (green) – presence of voltage at power input/output
• Operating conditions: environmental class II, −10°C to 40°C
• Dimensions (L×W×H): 81 × 77 × 26 mm (±2 mm)
• Mounting: mounting screws ×2 (holes Ø 6 mm)
• Connectors: PoE input/output RJ45 8P8C
• Storage temperature: −20°C to +60°C
• Declarations: CE, RoHS
