LevelOne HVE-9007 Extensor AV transmisor y receptor AV blanco

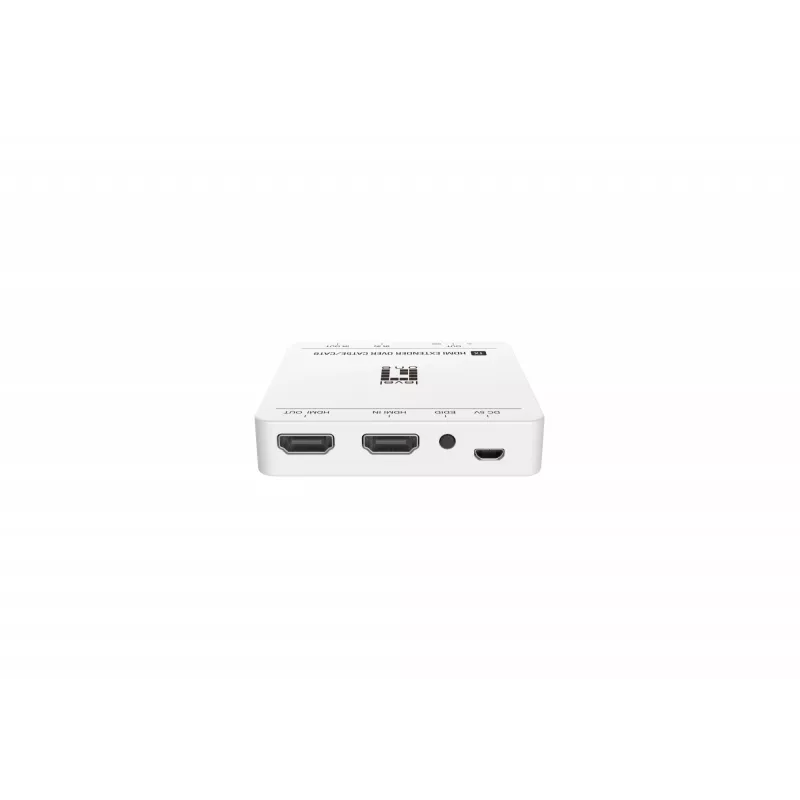

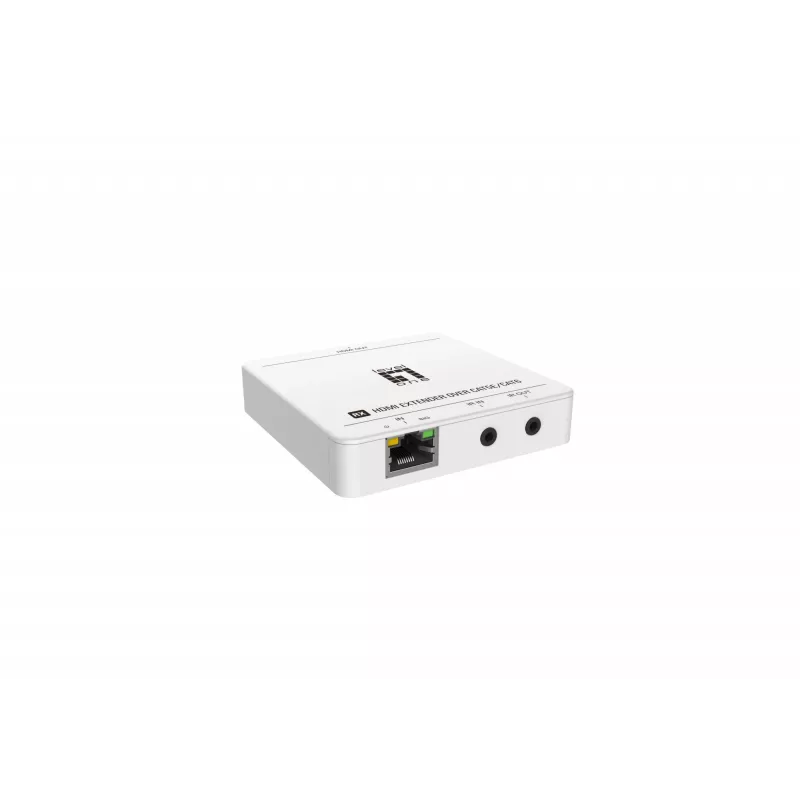

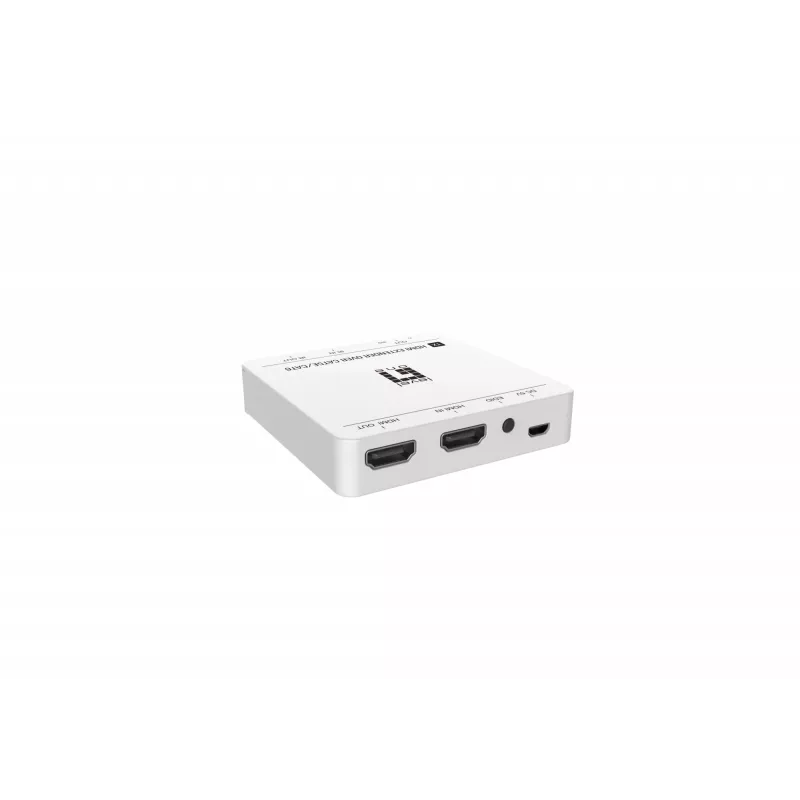

The LevelOne HVE-9007 AV transmitter & receiver extends Ultra HD HDMI signals up to 50 metres from the source over Ethernet cables, enabling high-definition video and audio distribution without requiring optical fiber. The kit supports resolutions up to 3840 x 2160 and is compatible with Cat5e and Cat6 cabling. It includes a transmitter and a receiver, uses wired connectivity with a Micro-USB power connector, and has a compact white housing for easy integration into AV installations.

Advantages

The LevelOne HVE-9007 delivers UHD quality over standard Ethernet cable, reducing installation cost compared with fiber solutions. It supports both HDCP 1.4 and HDCP 2.2 for broad device compatibility (source and sink must use the same HDCP version). The unit is compact and lightweight, suitable for discreet placement in residential or commercial AV setups.

Suitable for

• Extending HDMI video/audio to displays up to 50 metres away
• Digital signage and conference room AV distribution
• Home theater or multiroom video distribution using Cat5e/Cat6 cable

Key specifications

• Type: AV transmitter & receiver
• Maximum resolution: 3840 x 2160 (Ultra HD)
• Maximum transfer distance: 70 m (device specification); typical HDMI extension up to 50 m over Ethernet
• Cable types supported: Cat5e, Cat6
• HDCP support: 1.4 and 2.2 (source and display must match)
• Connector: Micro-USB (power)
• Colour: White
• Weight: 0.074 kg

How to use

Connect the HDMI source to the transmitter unit and the display to the receiver unit. Link transmitter and receiver with a Cat5e or Cat6 Ethernet cable of appropriate length. Provide power to each unit via the Micro-USB connectors. Ensure the source and display use the same HDCP version to allow protected content playback. Configure display settings to match the desired resolution up to 3840 x 2160.

Recommendations

For reliable performance, use high-quality Cat5e or Cat6 cables, keep cable runs within the recommended distances, and verify HDCP compatibility between source and display devices before deployment.
