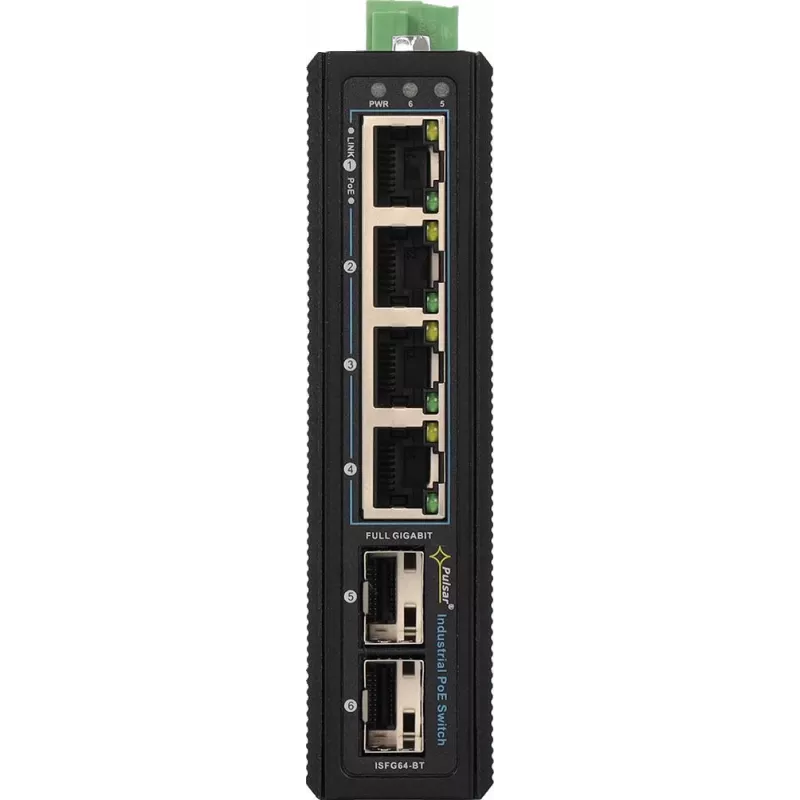

PULSAR ISFG64-BT switch industrial (4x PoE, 2x SFP)

The PULSAR ISFG64-BT is a robust industrial unmanaged switch designed for harsh environments. It features 4 Gigabit PoE+ ports and 2 SFP slots, providing reliable network connectivity and power delivery for devices such as IP cameras, wireless access points, and industrial sensors. With a wide operating temperature range and DIN-rail mounting, it is ideal for factory floors, outdoor installations, and transportation systems.

Advantages

This switch offers a cost-effective solution for expanding industrial networks. Its PoE+ capability delivers up to 30W per port with a total budget of 120W, eliminating the need for separate power cables. The rugged metal housing and IP30 rating ensure protection against dust and mechanical stress. Redundant DC power inputs enhance reliability, while the fanless design ensures silent operation.

Suitable for

• Industrial automation and control systems
• IP surveillance systems
• Wireless LAN installations
• Transportation and utility networks

Key specifications

• 4x 10/100/1000Base-T RJ-45 PoE+ ports (30W per port, 120W total)
• 2x 100/1000Base-X SFP slots
• Switching capacity: 12 Gbps
• MAC address table: 8K entries
• Jumbo frame support: 9K bytes

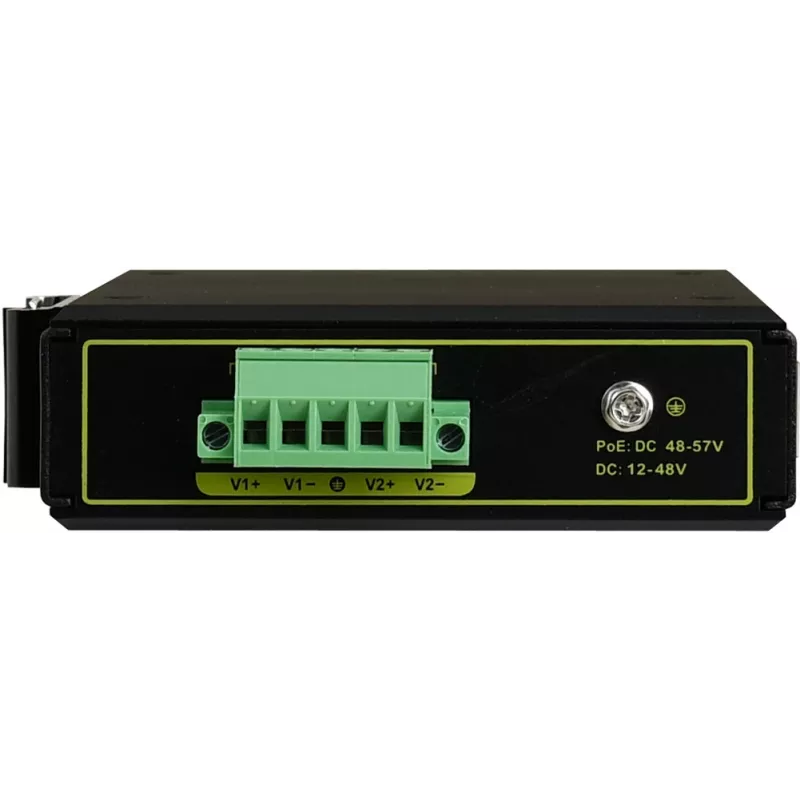

• Input voltage: 48-57V DC (redundant)
• Operating temperature: -40°C to +75°C

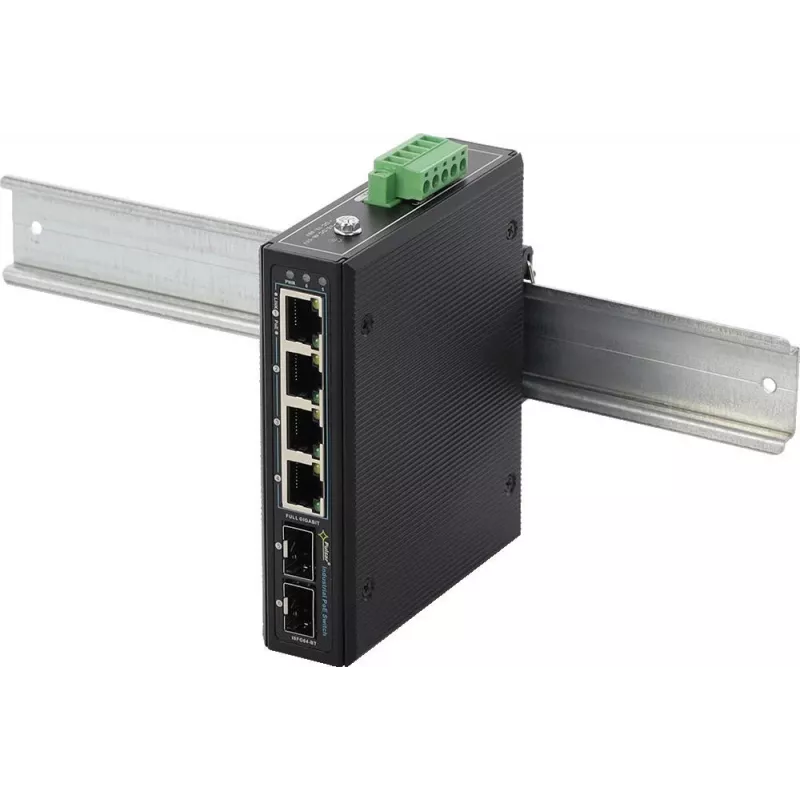

• Mounting: DIN rail / wall mount
• IP rating: IP30

Recommendations

For optimal performance, use high-quality SFP modules and ensure adequate ventilation. The switch is unmanaged, so no configuration is required; simply connect and power on. Suitable for use with PULSAR power supplies or other 48-57V DC sources.
