Punta centradora para tacos Fischer 60584

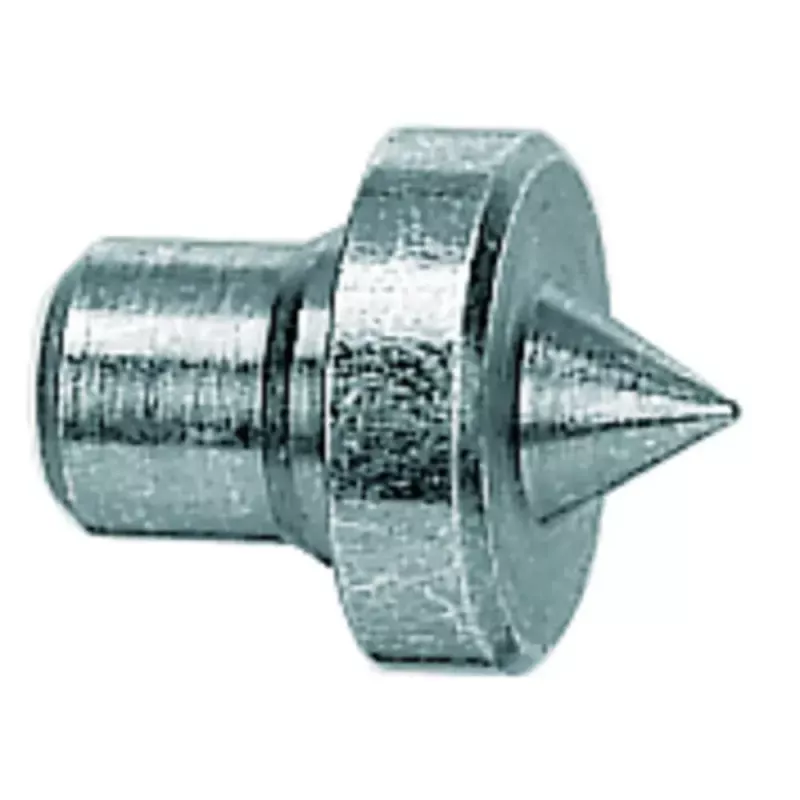

Fischer dowel centre point 60584 is a specialised tool for centre-marking wood stair-tread holes when installing fischer stair-tread fixings TB or TBB. Made of stainless steel, it provides precise alignment for dowels and aids accurate placement of holes for stair-tread fastenings.

Advantages

The tool's elastic shaft geometry absorbs vibrations and reduces creaking, improving comfort and long-term performance of the staircase. For the stair-tread fixing for steel sub-structures (TB) the short expansion element requires only a very small cavity, which makes the centre point suitable even for narrow steel profiles.

Suitable for

• Centre-marking holes in wooden stair treads for fischer TB and TBB fixings
• Precise dowel alignment in carpentry and stair installation
• Use with narrow steel sub-structures when using TB fixings

Key specifications

• Brand: FISCHER
• Manufacturer part number (MPN): 60584
• EAN: 4006209605844
• Material: stainless steel
• Application: centre-marking for stair-tread holes (compatible with fischer TB and TBB)

How to use

Position the dowel centre point on the stair tread where the fischer TB or TBB fixing will be installed and mark the centre of the hole. Use the marked centre to drill the required hole for the dowel or fixing according to the fischer fixing instructions. For steel sub-structures with TB fixings, ensure the small cavity required for the short expansion element is respected.

Recommendations

Use the tool together with the corresponding fischer TB or TBB stair-tread fixings and follow the fixing manufacturer's drilling diameters and depths to ensure proper fit and load-bearing performance.
