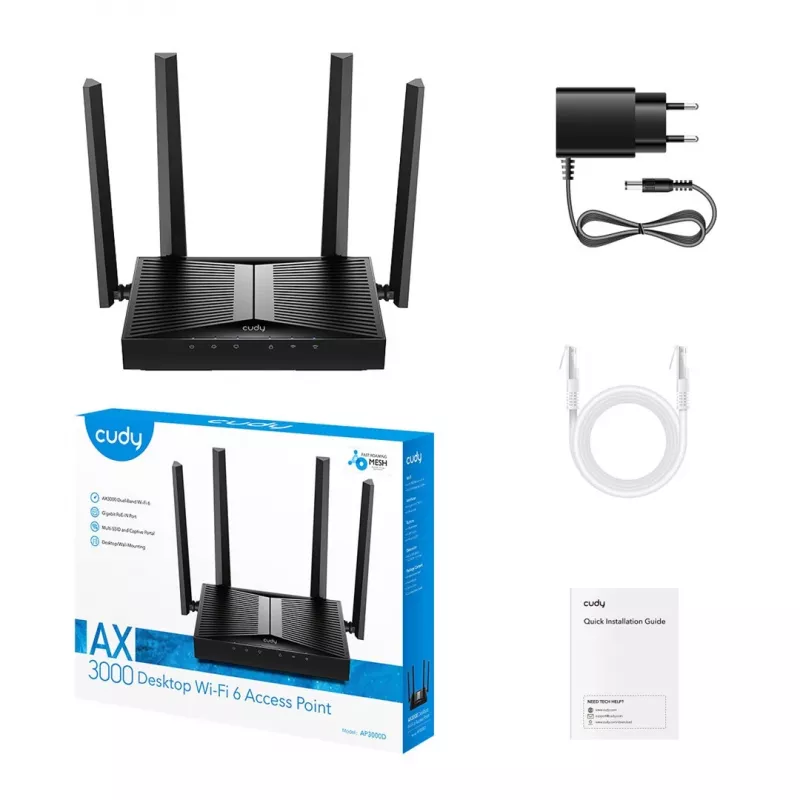

Punto de acceso inalámbrico Cudy AP3000D dual band 2,4/5 GHz, 2402 Mbps (5 GHz), 574 Mbps (2,4 GHz), 4 antenas externas, 1x LAN

A desktop or wall-mounted WiFi 6 access point designed for offices, hotels and studios. The unit provides dual-band 4-stream Wi-Fi 6 connectivity with a 1.3 GHz dual-core CPU and a single Gigabit Ethernet port with Power over Ethernet input options.

Advantages

The access point supports high-throughput wireless connections on 2.4 GHz and 5 GHz bands, Multi-SSID for network segmentation and a captive portal for guest access. It offers flexible power options (802.3at/af, passive PoE or DC) and external antennas to improve coverage for small to medium indoor spaces.

Key specifications

• CPU: 1.3 GHz dual-core
• Wi‑Fi standard: Wi‑Fi 6 (802.11ax), 4‑stream
• Wireless rates: 5 GHz — 2402 Mbps; 2.4 GHz — 574 Mbps
• Maximum data transfer rate: 2402 Mbit/s

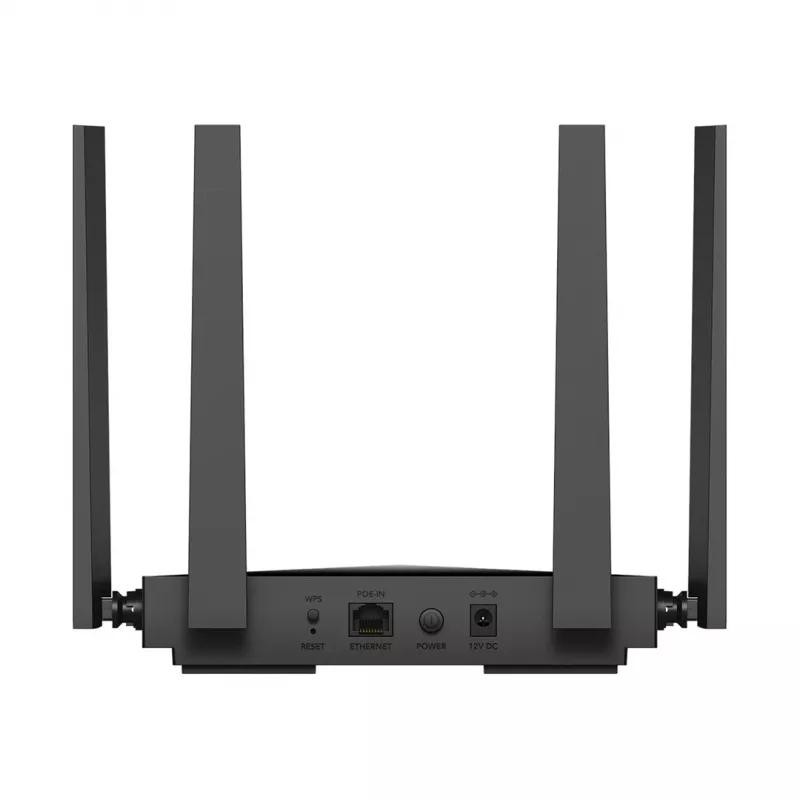

• Ethernet: 1× Gigabit Ethernet port (PoE In)
• Power options: 802.3at/af, passive PoE, DC
• Antennas: 4 external
• Coverage: up to 130 m² (1,400 ft²)
• Features: Multi‑SSID, captive portal

How to use

Mount the access point on a desk or wall in a central location to maximize coverage. Connect a network cable to the Gigabit Ethernet port and supply power via compatible PoE (802.3at/af or passive) or DC adapter. Configure SSIDs, security settings and captive portal through the device management interface or controller software before connecting client devices.

Recommendations

Place the device away from large metal objects and other sources of interference; for best performance in multi-floor buildings, install additional access points to ensure continuous coverage.
