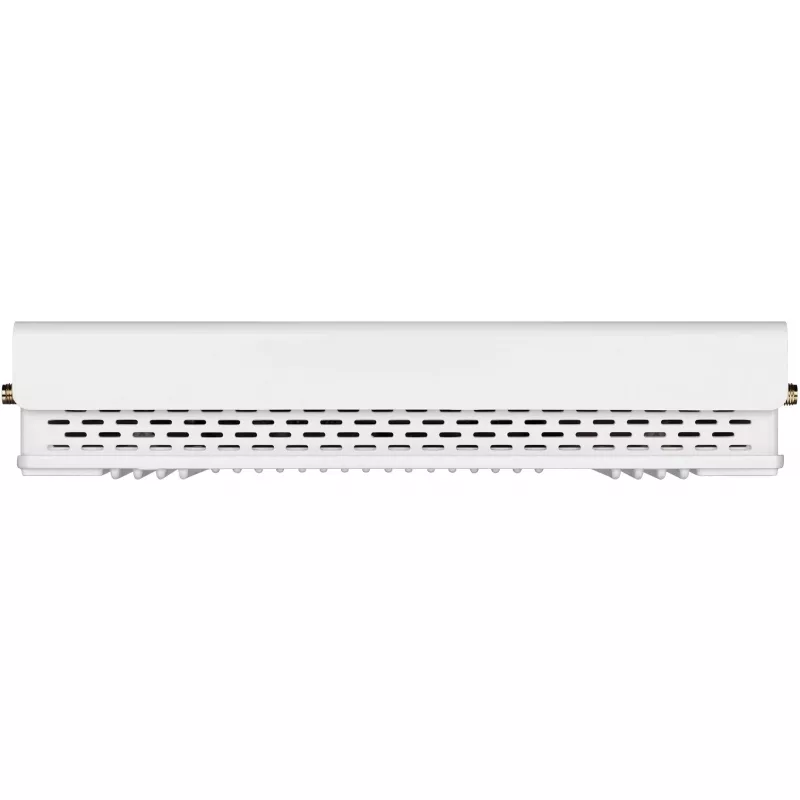

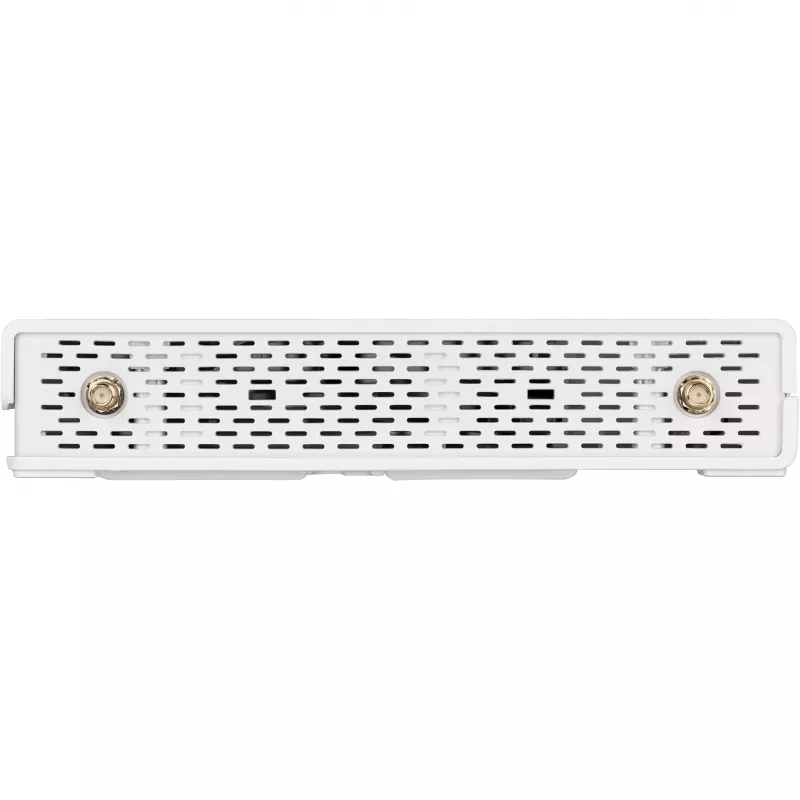

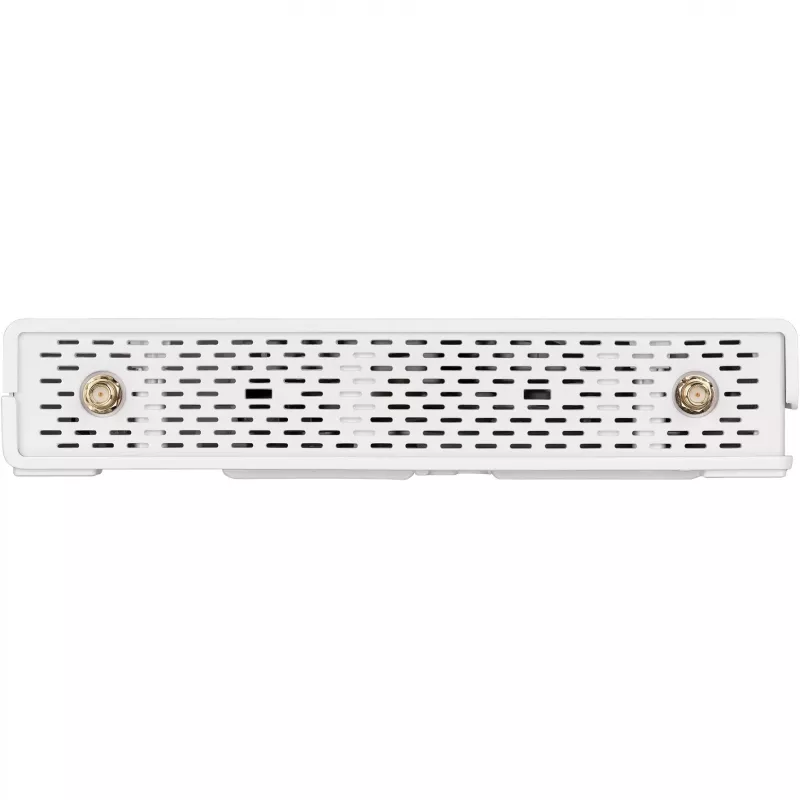

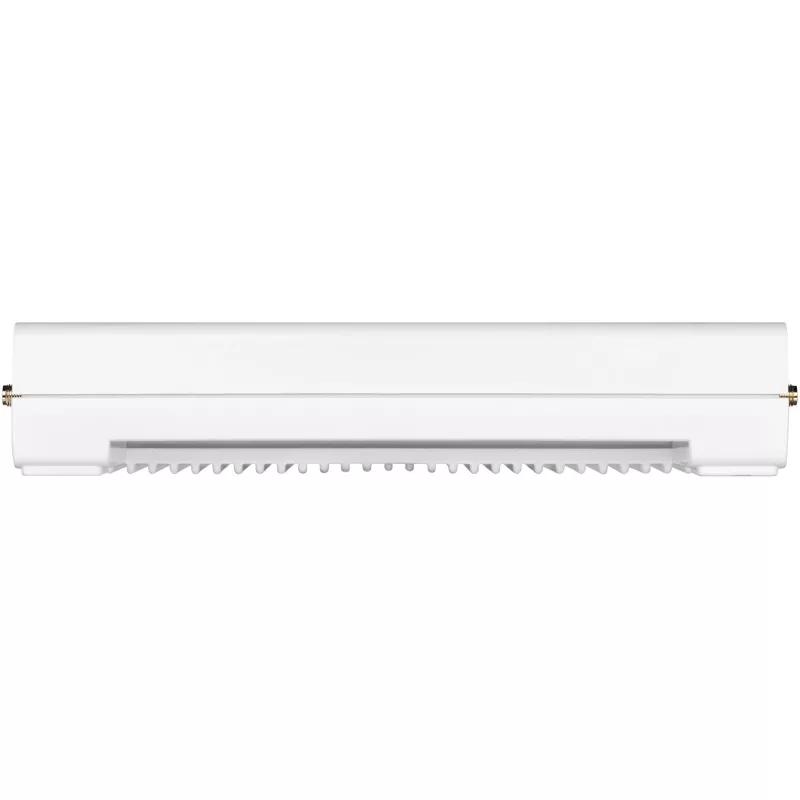

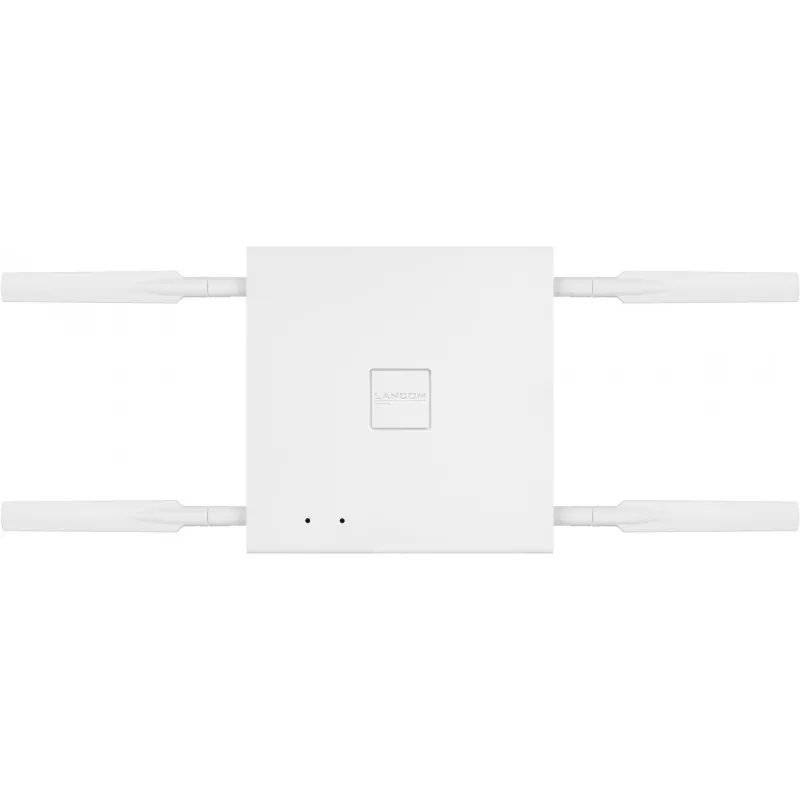

Punto de acceso inalámbrico LANCOM LX-6402 (WW)

The LANCOM LX-6402 (WW) is a dual-band wireless access point supporting Wi‑Fi 6 (IEEE 802.11ax) for high-speed wireless connectivity in the 2.4 GHz and 5 GHz bands. It combines dual concurrent radios with an aggregated datarate of up to 3,550 Mbps, supports advanced security algorithms (AES‑CCMP, WPA2, WPA3), and offers Power over Ethernet (PoE) and high Ethernet throughput for flexible installation in offices, retail and public environments.

Advantages

The access point delivers combined throughput of up to 3,550 Mbps by operating 5 GHz and 2.4 GHz radios simultaneously and supports Wi‑Fi 6 features such as 4x4 MU‑MIMO for uplink and downlink, OFDMA for efficient spectral sharing, and Target Wake Time (TWT) for reduced client power consumption. A 160 MHz channel width is supported for high-throughput clients, and band steering helps distribute client load to the less congested 5 GHz band. The device includes professional IoT support via Bluetooth Low Energy (5.1) and a USB 3.0 port for peripheral connectivity and applications such as digital signage or ePaper solutions. Management is possible via the LANCOM Management Cloud or locally through an intuitive WEBconfig interface for standalone operation.

Suitable for

• Small and medium offices requiring high-speed wireless access
• Retail environments with digital signage and electronic shelf labels
• Public areas and meeting rooms with multiple concurrent clients
• IoT deployments using BLE sensors and USB-connected peripherals

Key specifications

• Wi‑Fi standard: IEEE 802.11ax (Wi‑Fi 6)
• Concurrent bands: 2.4 GHz and 5 GHz, aggregated up to 3,550 Mbps
• MU‑MIMO: 4x4 for downlink and uplink
• OFDMA and Target Wake Time (TWT) support
• Channel widths: 20 / 40 / 80 MHz (4 streams), 160 MHz (2 streams)
• Bluetooth Low Energy: 5.1
• USB: USB 3.0 for peripherals (e.g., Wireless ePaper)
• Security: AES‑CCMP, WPA2, WPA3
• Management: LANCOM Management Cloud and WEBconfig
• PoE support and high Ethernet data rates

How to use

Install the LANCOM LX-6402 on a ceiling or wall mount at a central location to maximize coverage. Connect it to your network using PoE or a powered Ethernet connection and complete initial configuration via the WEBconfig interface or through the LANCOM Management Cloud. Create SSIDs and apply security settings (WPA2/WPA3, AES‑CCMP) as required. Enable band steering and Wi‑Fi 6 features such as MU‑MIMO and OFDMA to improve multi-client performance. If needed, connect BLE sensors or USB peripherals and configure related services (for example, ePaper signage) according to the peripheral vendor instructions.

Recommendations

For optimal performance, place the access point clear of large metal objects and away from other radio-frequency sources, enable band steering to shift capable clients to 5 GHz, and use 160 MHz channels only where client devices explicitly support them to avoid interference and preserve capacity for other users.
