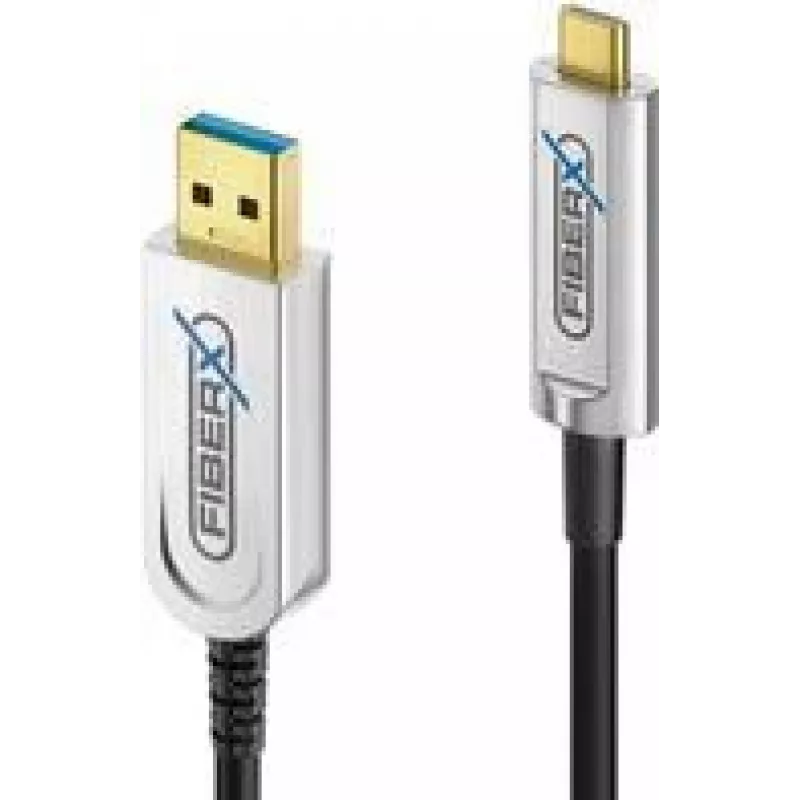

Cable USB FiberX FX-I630-010 10 m USB 3.2 Gen 1 USB C USB A negro plata

The FiberX FX-I630-010 is a 10 m USB hybrid AOC (active optical cable) with USB-C on one end and USB-A on the other, designed to transmit USB 3.1/3.2 Gen1 signals up to 10 Gbps over long distances. The cable combines optical fibres for data transmission and copper conductors for power, has a slim 4.5 mm outer diameter, gold-plated contacts and a nickel-plated plug shell. It is bus-powered from the USB port and supports backward compatibility with USB 2.0.

Advantages

The hybrid optical/copper design provides immunity to electromagnetic interference and low signal attenuation, enabling reliable high-speed data transfer across extended runs while keeping cable diameter small for tight routing. Gold-plated precision contacts and a nickel-plated shell increase contact reliability and corrosion resistance. No external power supply is required; the cable is powered via the USB host.

Suitable for

• Connecting USB huddle cams or webcams to a remote rack or PC over long distances
• Linking conference phones or USB peripherals where the host is located remotely
• Installations requiring narrow bending radii or routing through confined spaces

Key specifications

• Model: FiberX FX-I630-010
• Length: 10 m
• Connectors: USB-C (one end) to USB-A (other end)
• USB standard: USB 3.2 Gen 1 / SuperSpeed 10 Gbps; backward compatible with USB 2.0
• Maximum data rate: up to 10 Gbps
• Power: bus-powered, max 5 V / 0.9 A (approx. 4.5 W)
• Cable diameter: 4.5 mm
• Bending radius: static down to 45 mm, dynamic down to 90 mm
• Contacts: gold-plated precision contacts; plug shell nickel-plated
• Colour: Silver / Black

How to use

Connect the USB-C plug to a compatible device and the USB-A plug to a host USB port that supports USB 3.x or USB 2.0. The cable is plug-and-play and does not require external power or drivers. Ensure the host provides standard USB bus power; the cable supports up to 5 V / 0.9 A. Route the cable following recommended bending radii to avoid strain on the fibre section and secure connectors to prevent accidental disconnection.

Recommendations

For optimal performance, use with devices that support SuperSpeed USB and avoid sharp bends; maintain at least the specified static bending radius of 45 mm. Do not rely on this cable for USB Power Delivery profiles—power output is limited to approximately 4.5 W. Use in environments where electromagnetic interference could affect copper-only cables or where long-distance USB connectivity is required.
