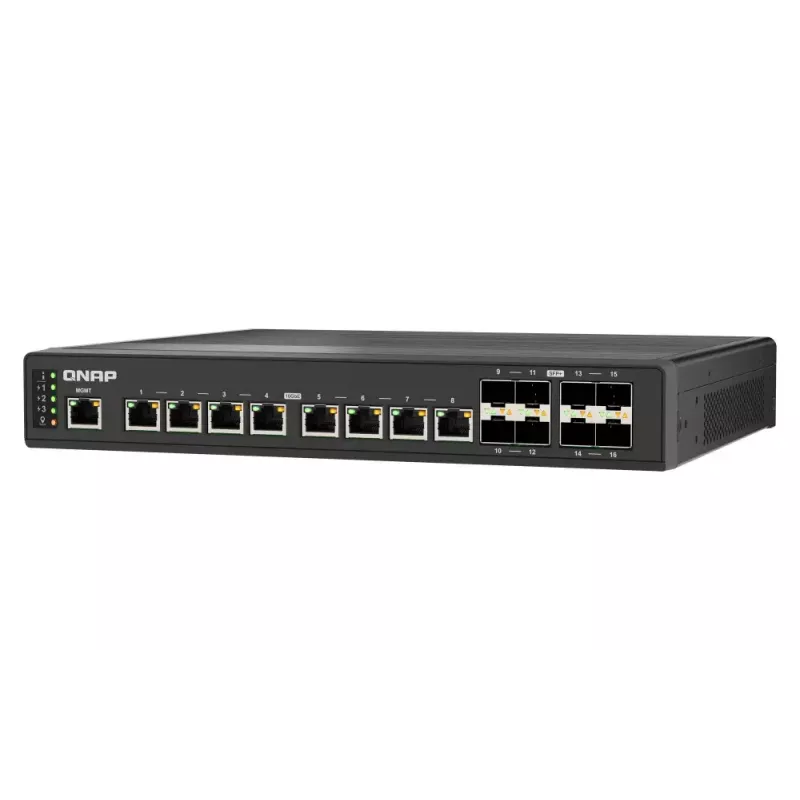

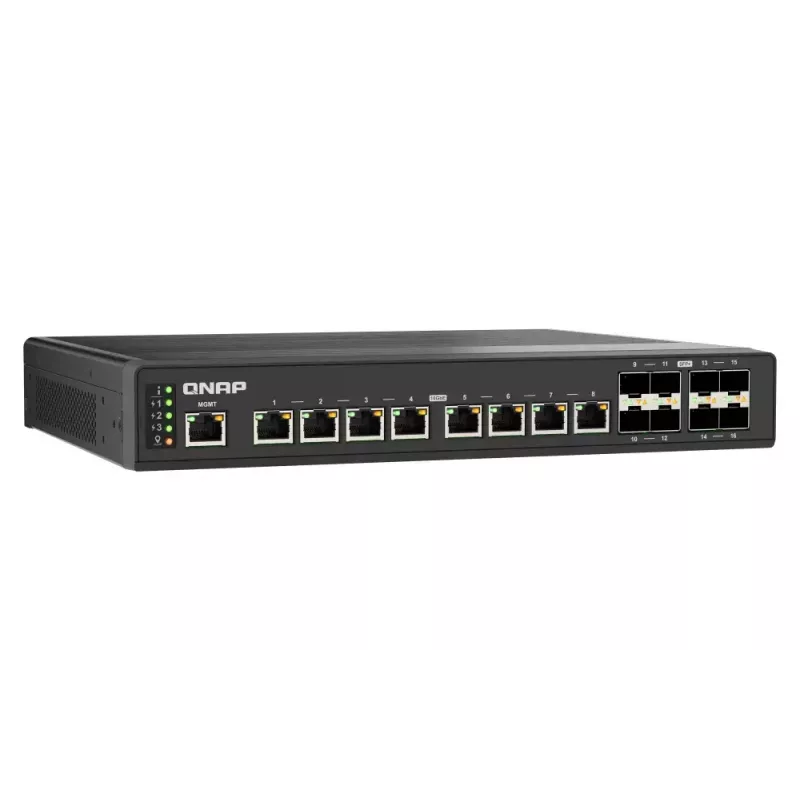

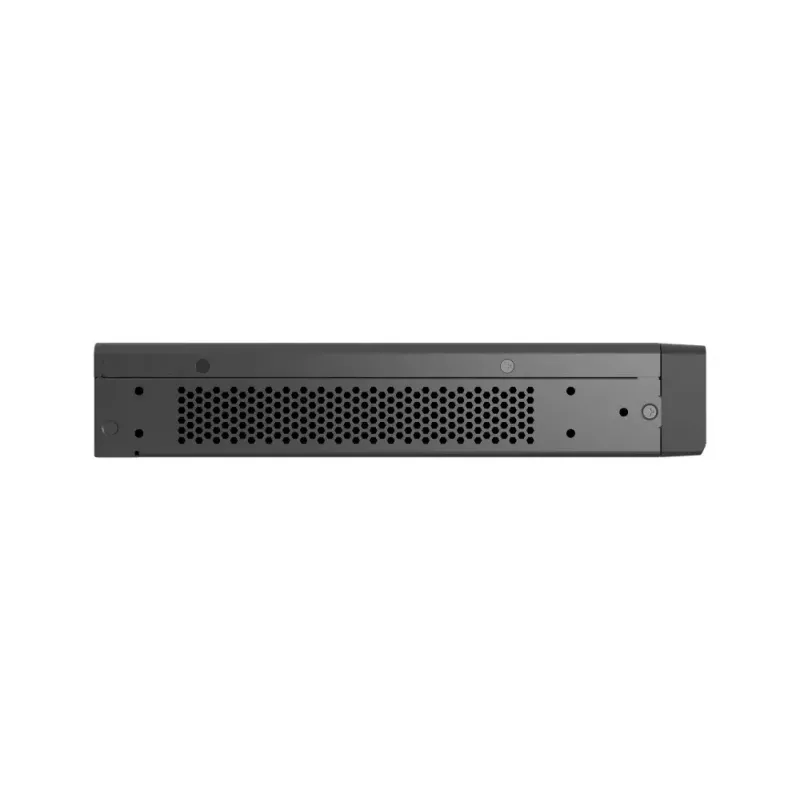

QNAP QSW-IM3216-8S8T Switch de red gestionado L2 10G Ethernet (100/1000/10000) negro

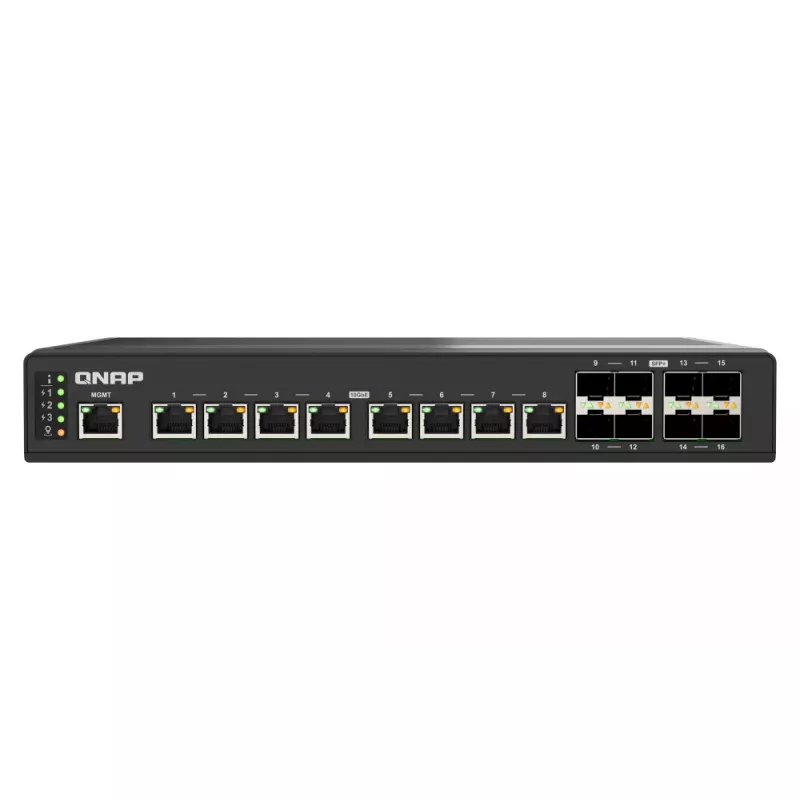

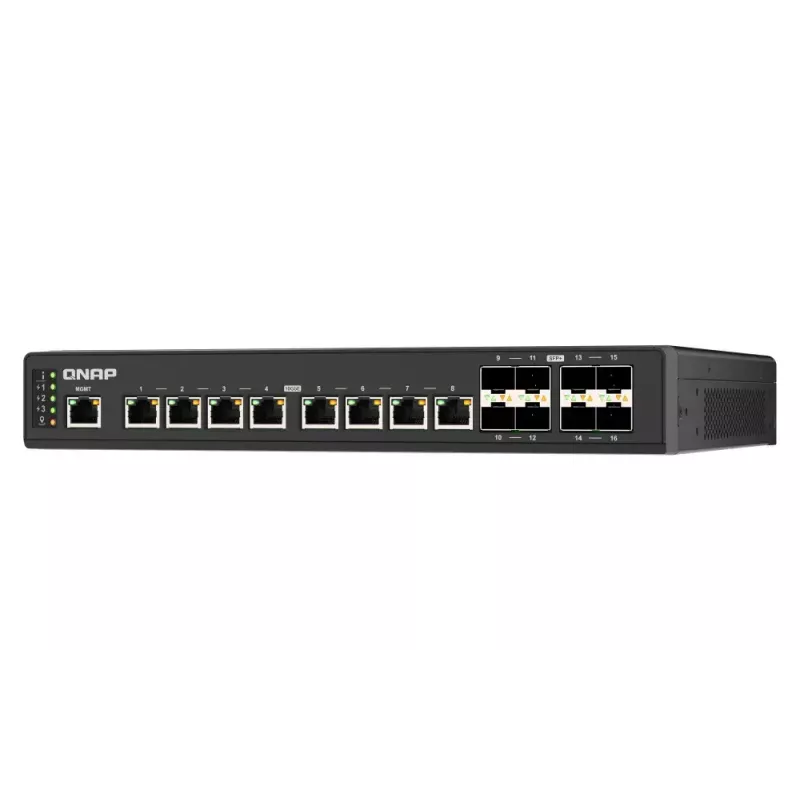

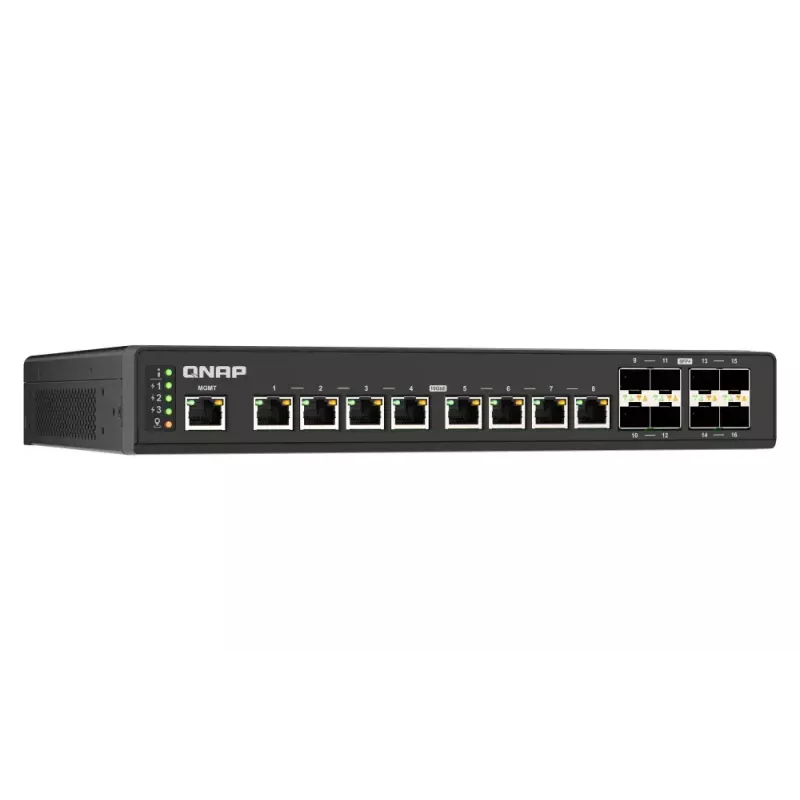

The QNAP QSW-IM3216-8S8T is a managed 10G Ethernet switch designed for high-performance and industrial networking environments. It provides sixteen 10GbE ports in a fanless IP20-rated enclosure and supports a switching capacity of 320 Gbit/s with a MAC address table accommodating 16,000 entries. The switch implements a broad set of networking standards, including IEEE 802.1Q VLAN tagging and IEEE 802.3ad link aggregation, and includes practical L2 management features. With a redundant DC 9–54V power input and multiple installation options (rack, desktop, or wall), it is built for continuous operation in harsh conditions and was designed and manufactured in Taiwan.

Advantages

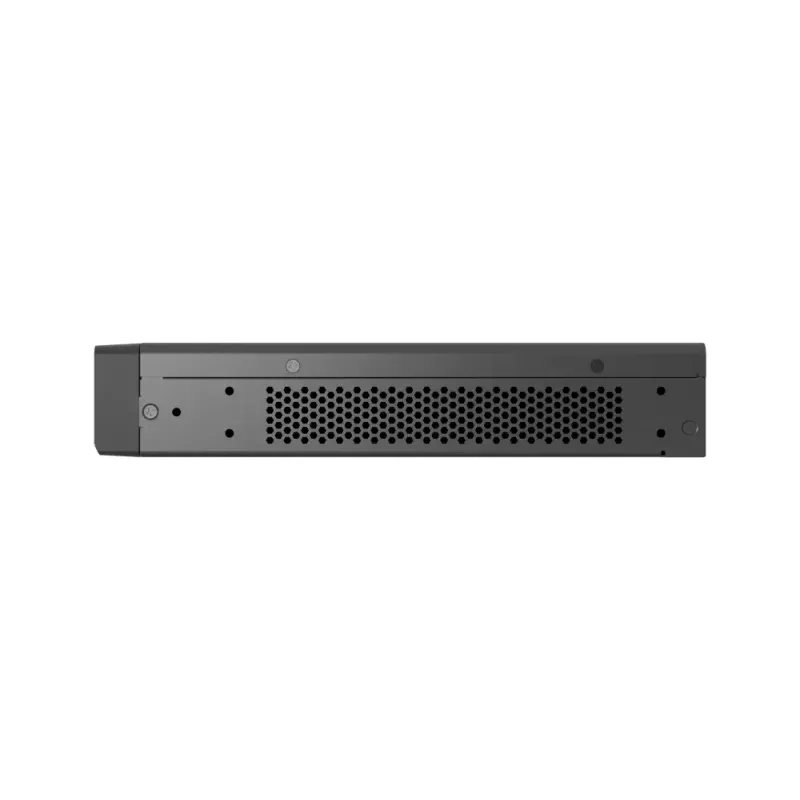

The fanless design and IP20-rated metal enclosure reduce moving parts and dust ingress while maintaining low operational noise. Redundant DC 9–54V power support increases reliability in industrial deployments. L2 management features and compatibility with multiple IEEE standards enable flexible VLAN, link aggregation and traffic control. Multiple installation options — rack-mount, desktop placement, or wall mounting — simplify integration into existing network infrastructure. Compact black housing and a weight of approximately 4.26 kg facilitate handling and deployment.

Suitable for

• Factory automation networks requiring robust 10G connectivity
• AI smart manufacturing and data aggregation at the edge
• Smart city infrastructure and traffic monitoring systems
• Automotive industry networks and test labs
• High-performance campus or branch office aggregation

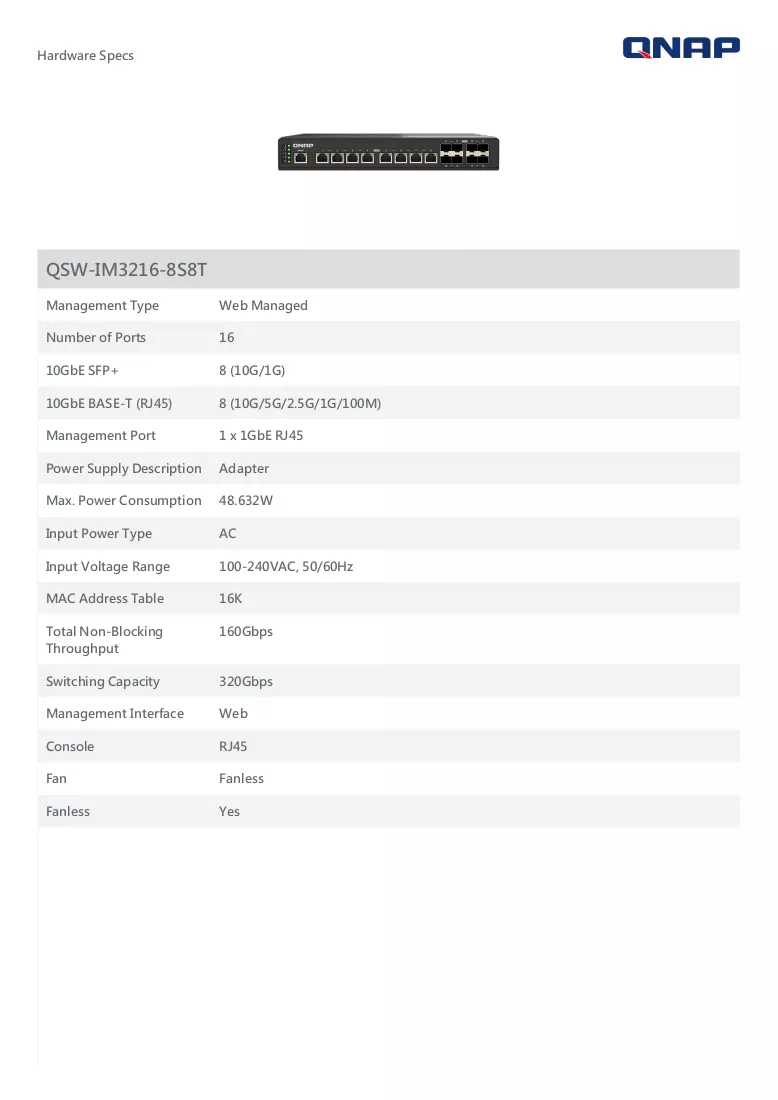

Key specifications

• Port configuration: sixteen 10GbE ports supporting 100/1000/10000 Mbps
• Switching capacity: 320 Gbit/s
• MAC address table size: 16,000 entries
• Switch type: Managed with L2 features (VLAN, link aggregation, flow control)
• Supported networking standards: IEEE 802.3, 802.3u, 802.3ab, 802.3an, 802.3ae, 802.3bz, 802.3x, 802.1Q, 802.3ad, 802.1ab, 802.11w

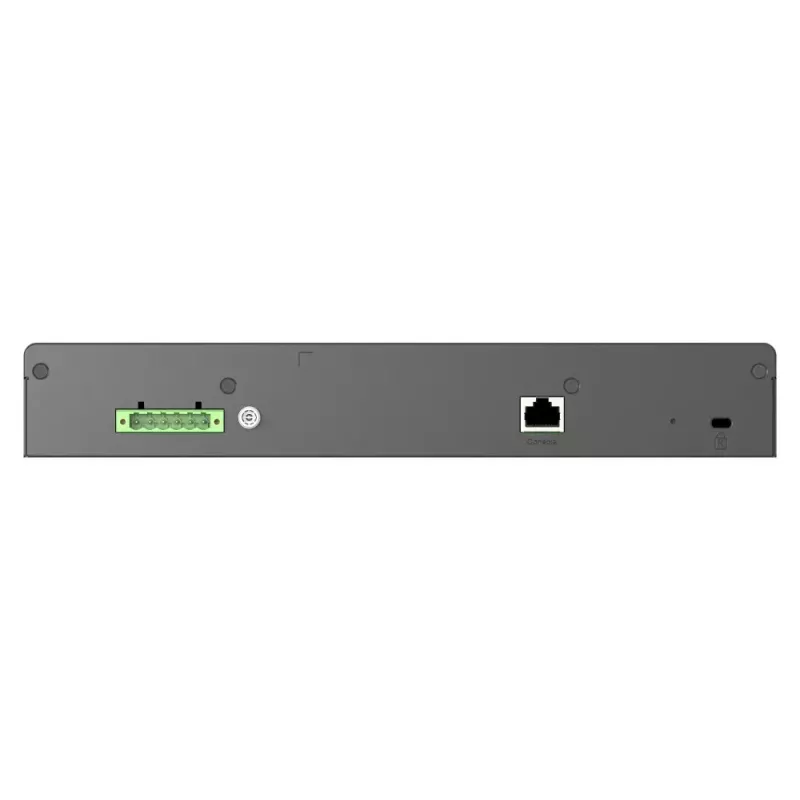

• Power: redundant DC input 9–54V
• Enclosure rating: fanless, IP20
• Color and weight: black, approximately 4.26 kg

How to use

Install the switch in the chosen location — rack, desktop, or wall — following standard safety practices for industrial equipment and ensuring the DC power source matches the 9–54V input range. Connect 10G Ethernet cables to the SFP+/RJ-45 compatible ports or appropriate transceivers, then configure L2 settings via the management interface to set VLANs, link aggregation groups, QoS and other traffic policies. Verify firmware is up to date and monitor port status and system logs after initial configuration to confirm stable operation.

Recommendations

For reliable operation in industrial or harsh environments, use quality shielded 10G cables and properly rated DC power supplies or redundant power sources. Apply VLAN segmentation and link aggregation according to traffic patterns to optimize throughput and reduce congestion. Schedule periodic firmware updates and monitor device health using SNMP or the management tools available to maintain continuous performance.
