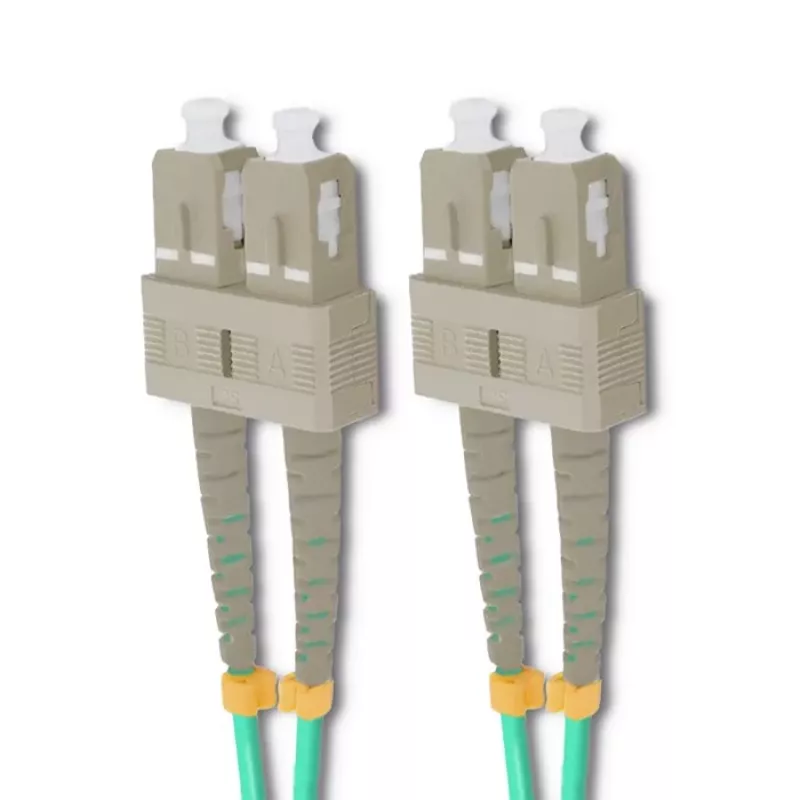

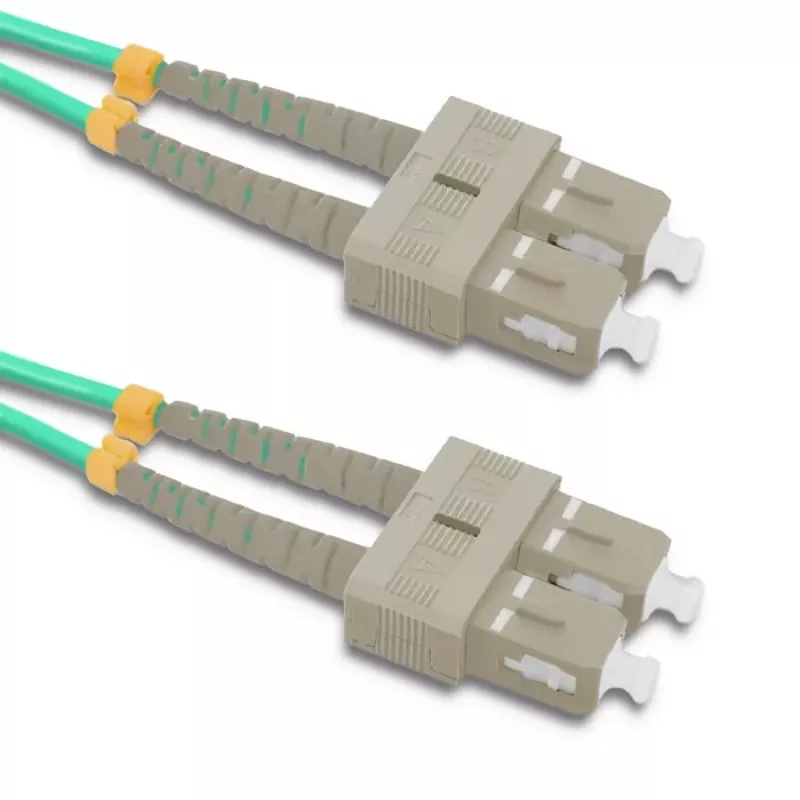

Qoltec Cable de conexión de fibra óptica SC/UPC a SC/UPC dúplex multimodo OM4, 5m, aguamarina

The Qoltec SC/UPC to SC/UPC Duplex Multimode OM4 Fiber Optic Patch Cable is a high-performance interconnect solution designed for demanding network environments. With a length of 5 meters and premium OM4 grade multimode fiber, this cable delivers exceptional bandwidth and low insertion loss, making it ideal for high-speed data center and enterprise applications.

Advantages

Engineered for reliability and performance, this patch cable ensures minimal signal loss and high return loss, supporting wavelengths of 850 nm and 1300 nm. The duplex configuration allows for simultaneous bidirectional communication, while the aqua-colored jacket provides easy identification. Compliant with TIA/EIA-568-C.3 and IEC 60793-2-10 standards, it guarantees interoperability and long-term durability.

Suitable for

• Data centers requiring 10GbE, 40GbE, or 100GbE connectivity
• Enterprise network infrastructure
• Telecommunications and server rooms
• High-bandwidth backbone connections

Key specifications

• Connector Type: SC/UPC to SC/UPC
• Fiber Mode: Multimode OM4
• Core/Cladding: 50/125 µm
• Cable Length: 5 m
• Cable Configuration: Duplex
• Jacket Color: Aqua
• Insertion Loss: < 0.3 dB
• Return Loss: > 30 dB
• Supported Wavelengths: 850 nm, 1300 nm
• Maximum Bandwidth: 4700 MHz-km @ 850 nm, 500 MHz-km @ 1300 nm
• Operating Temperature: -20°C to 70°C
• Storage Temperature: -40°C to 85°C

Recommendations

For optimal performance, ensure clean and properly terminated connectors. This cable is compatible with standard SC/UPC ports and is ideal for high-speed data transmission in structured cabling systems.
