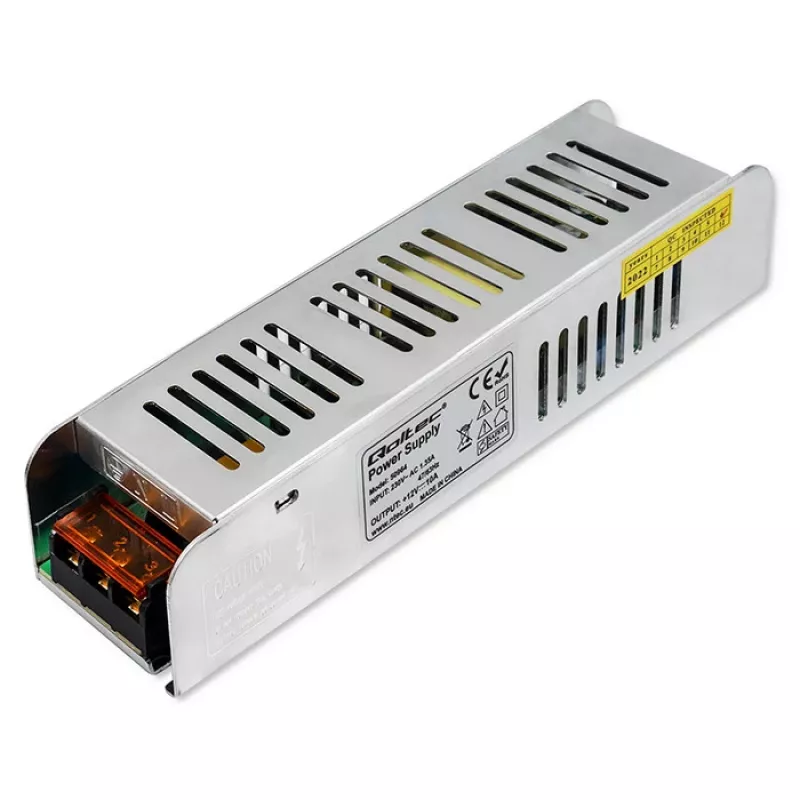

Qoltec Fuente de alimentación LED 120W 12V 10A Slim

The Qoltec 50964 is a high-performance switching power supply designed for LED lighting, CCTV systems, and automation applications. With a slim form factor and passive cooling, it delivers reliable 120W output at 12V DC with 10A current. The unit features screw terminals for secure connections and comprehensive protection against overload, short circuit, and overvoltage.

Advantages

Compact and slim design for space-constrained installations. High efficiency >85% reduces energy loss. Passive convection cooling ensures silent operation and long lifespan. Wide input voltage range (170-265V AC) accommodates varying mains conditions. Robust aluminum housing for durability and heat dissipation.

Suitable for

• LED strip lighting and modules
• CCTV cameras and DVRs
• Industrial automation and control systems
• Security and access control equipment

Key specifications

• Output Power: 120W
• Output Voltage: 12V DC
• Output Current: 10A
• Input Voltage: AC 170-265V
• Input Frequency: 50/60Hz
• Efficiency: >85%
• Protection: Overload, Short Circuit, Overvoltage
• IP Rating: IP20
• Operating Temperature: -20°C to +50°C
• Housing Material: Aluminum
• Cooling: Passive (Convection)
• Connection: Screw Terminals
• Certifications: CE, RoHS

Recommendations

For optimal performance, ensure adequate ventilation around the power supply. Use appropriate gauge wiring for the 10A output. This unit is not suitable for outdoor use without additional weatherproofing.
