Rack de montaje en pared Digitus DN-19 07-U-EC-SW 600x450 mm

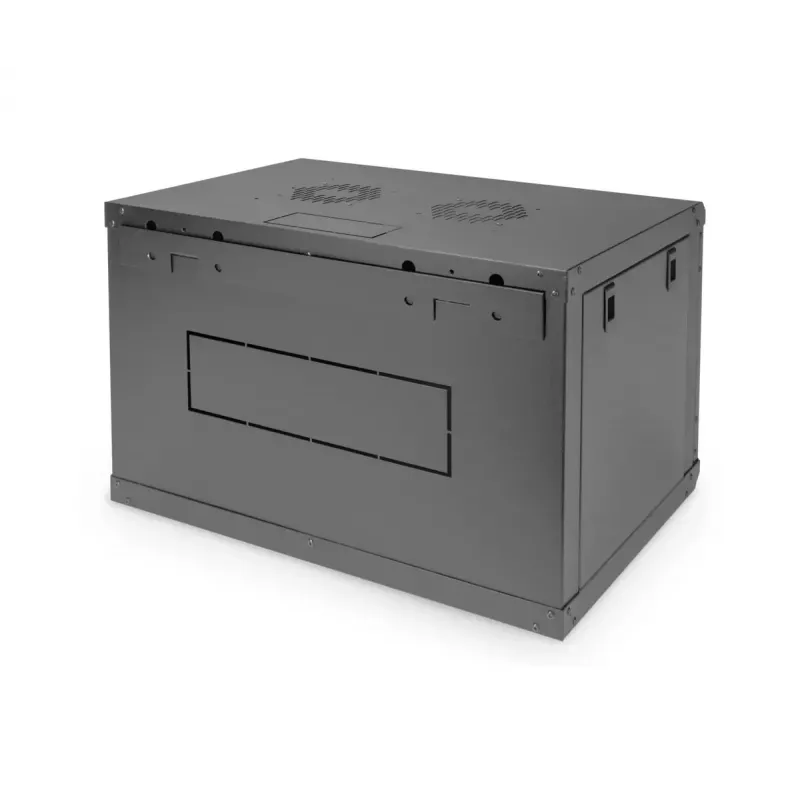

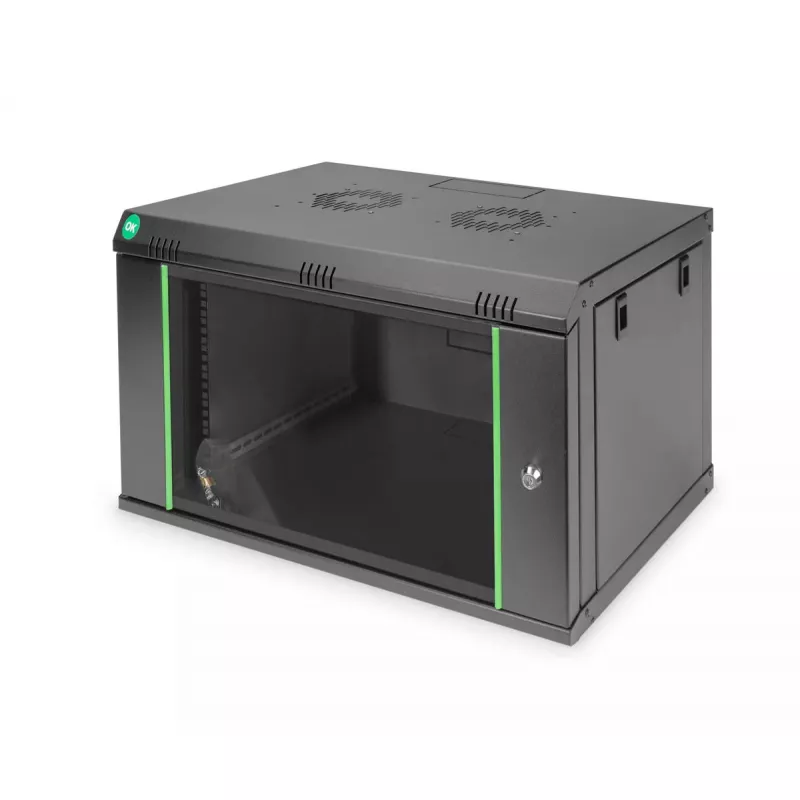

The Digitus DN-19 07-U-EC-SW is a wall-mounted network cabinet from the Dynamic Basic series with external dimensions 600 x 450 mm and 7U rack capacity. Constructed from up to 1.5 mm sheet steel and finished in black (RAL 9005), the cabinet is designed for space-saving installation and secure housing of network equipment. It includes pre-cut cable inlets in the roof, floor and back wall, adjustable 483 mm (19") profile rails with rack unit markings, removable side panels and a lockable safety-glass front door with steel frame. The product is intended for installations up to 60 kg and provides IP20 protection.

Advantages

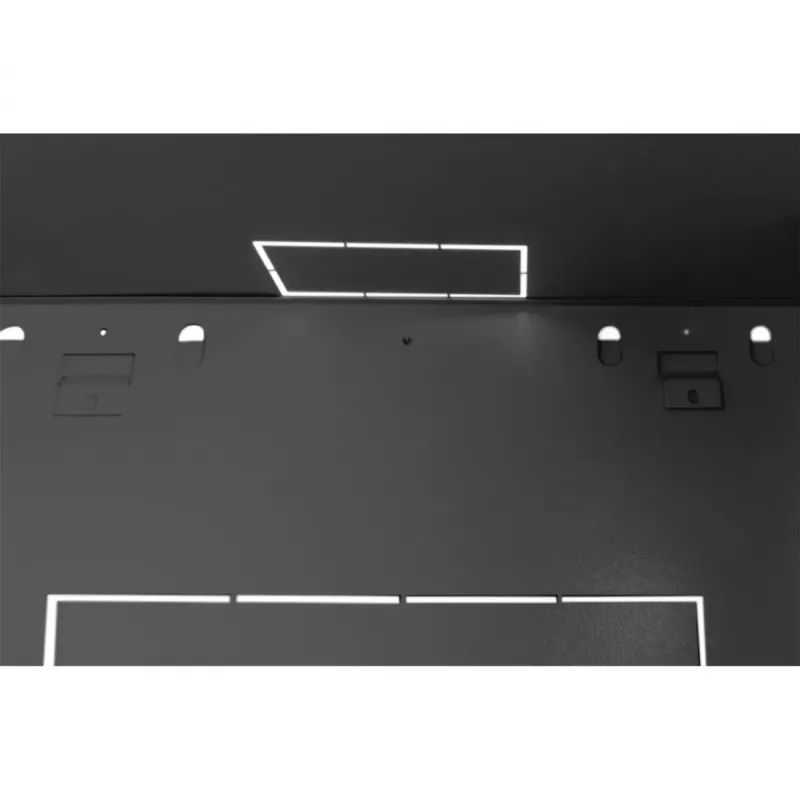

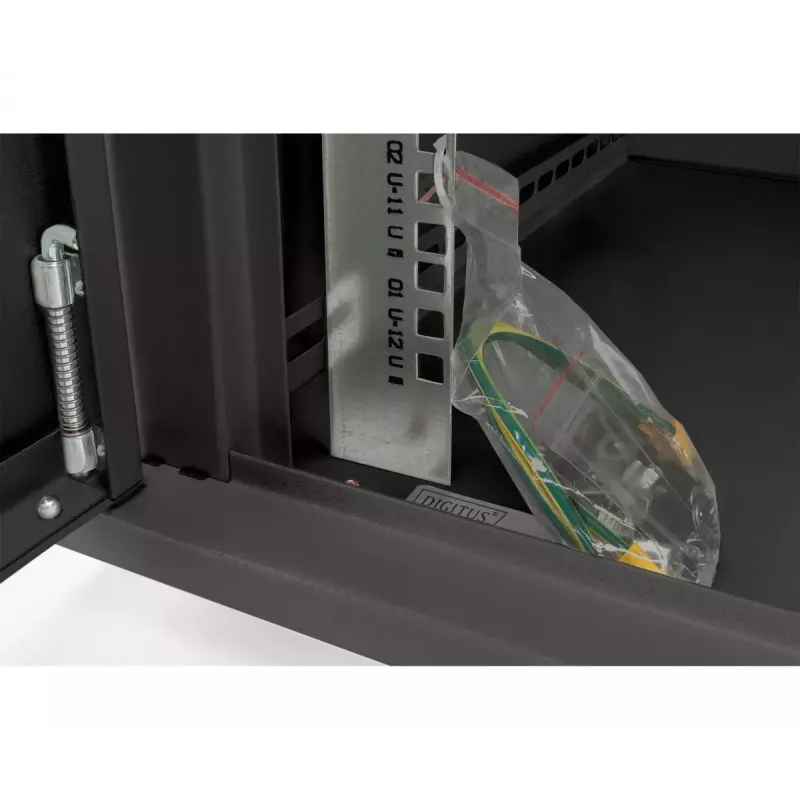

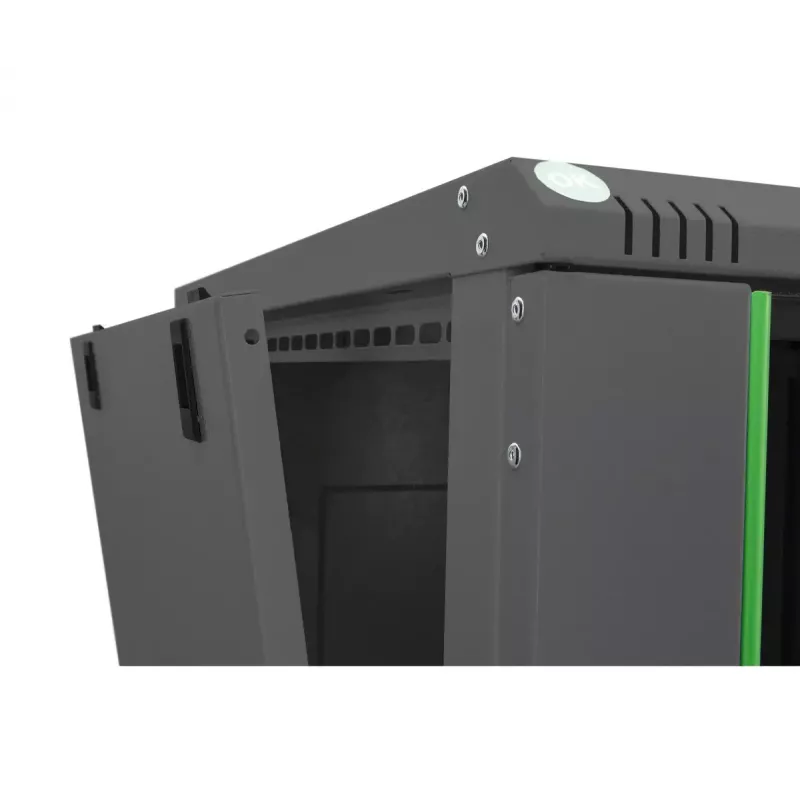

The cabinet’s 450 mm depth enables compact wall mounting where space is limited. Pre-cut openings for cables and an area prepared for a fan module simplify installation and ventilation. Adjustable, galvanized 19" profile rails with readable RU markings allow flexible mounting of equipment. Removable side walls and a reversible, lockable front door improve access for maintenance while the steel construction and electrostatic powder coating ensure mechanical stability and corrosion resistance.

Suitable for

• Small server rooms and branch offices
• Telecom and network equipment mounting (switches, patch panels, routers)
• Cable management and distribution points in offices or technical rooms

Key specifications

• Brand: DIGITUS
• Model: DN-19 07-U-EC-SW
• Rack capacity: 7U
• Dimensions (W x D x H): 600 x 450 x 415 mm
• Material thickness: up to 1.5 mm sheet steel
• Weight: 15 kg
• Max. load: 60 kg
• Protection class: IP20
• Colour: Black (RAL 9005)

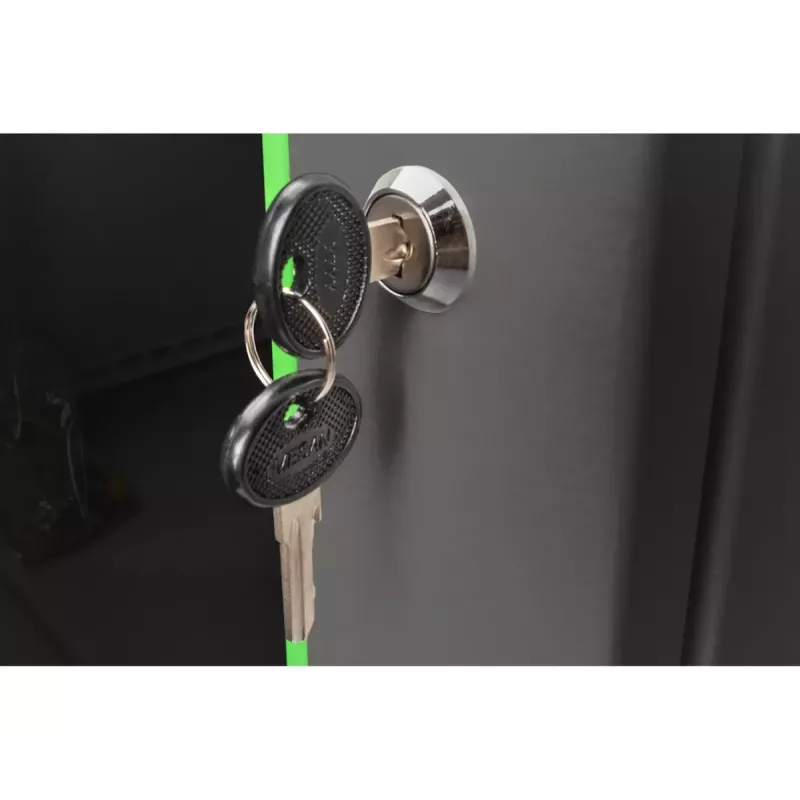

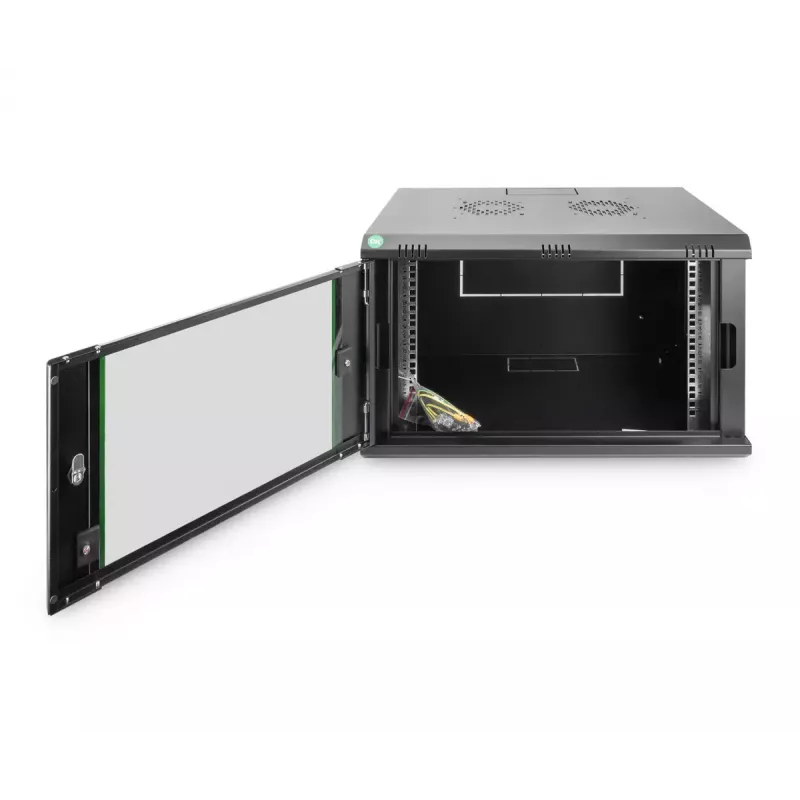

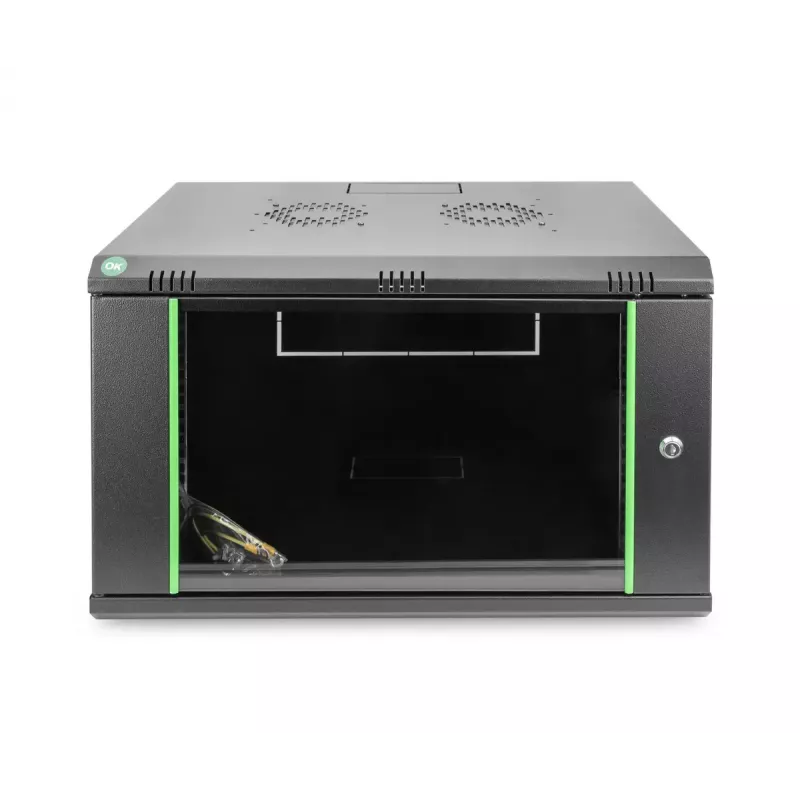

• Front door: lockable safety glass with steel frame, reversible hinges

How to use

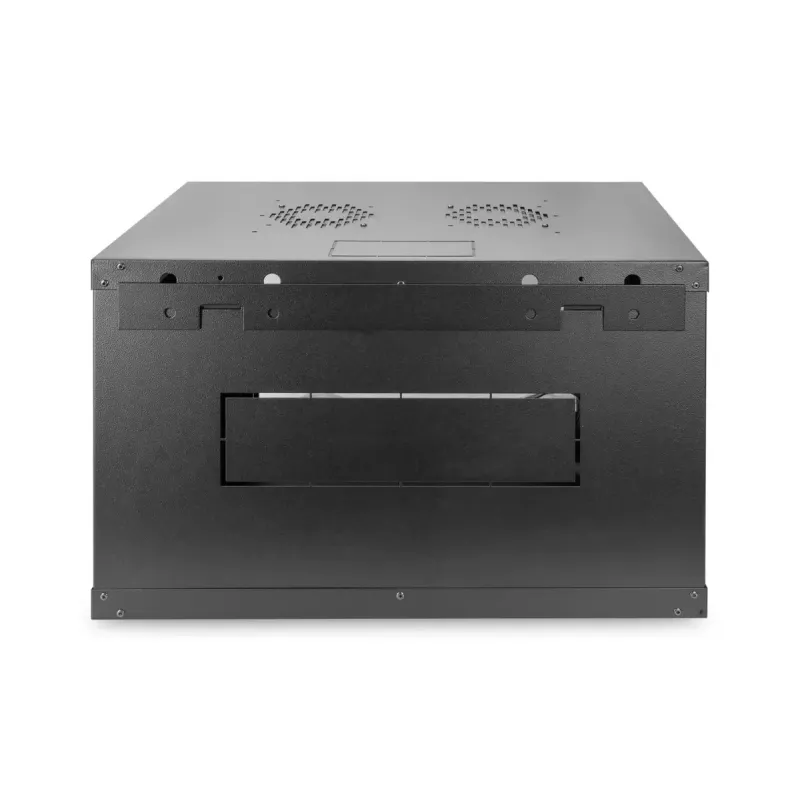

Mount the supplied wall mounting plate to a suitable load-bearing surface using appropriate fasteners. Hang the cabinet on the mounted plate and secure it with the provided bolts. Route cables through the pre-cut inlets in the roof, floor or rear wall and mount equipment on the adjustable 483 mm (19") profile rails using standard rack screws. If required, fit a fan module into the pre-cut roof area and adjust rail depth to suit mounted devices. Use the lockable front door and removable side panels for secure access and maintenance.

Recommendations

For safe operation, ensure wall fixings correspond to the cabinet load and local building regulations. Maintain adequate ventilation around mounted equipment; if heat-sensitive devices are installed, consider adding a fan module. Regularly check the lock and hinges and secure all cable entries to prevent strain on connections.
