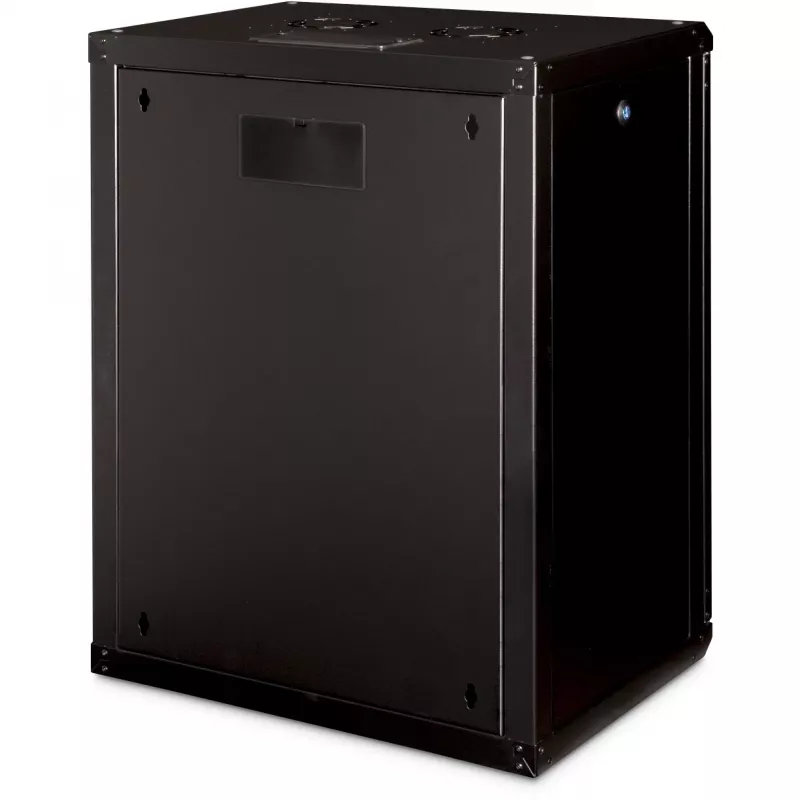

Rack de montaje en pared Digitus DN-19 16-U-SW

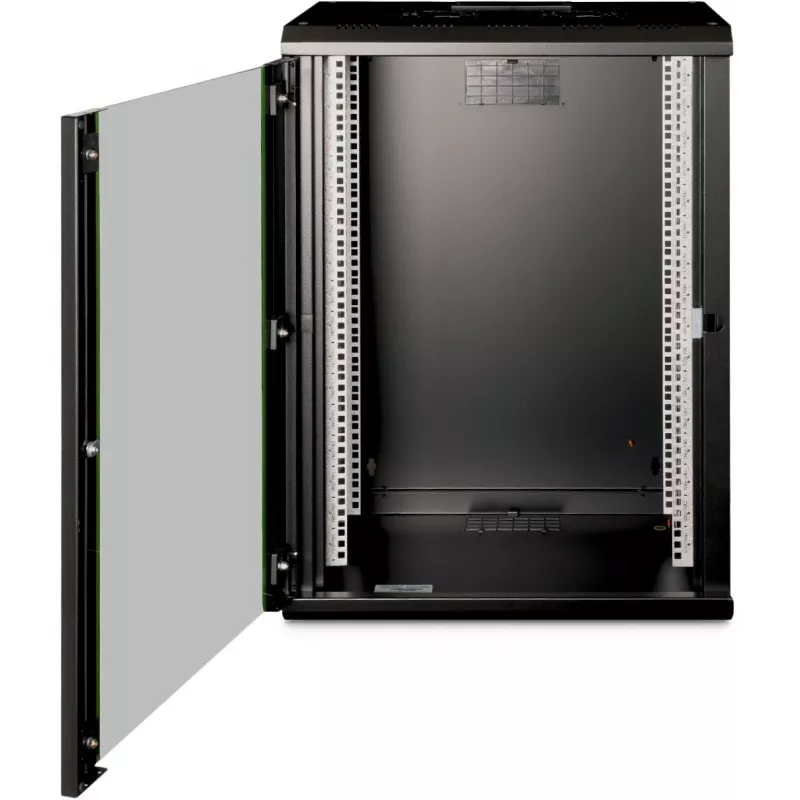

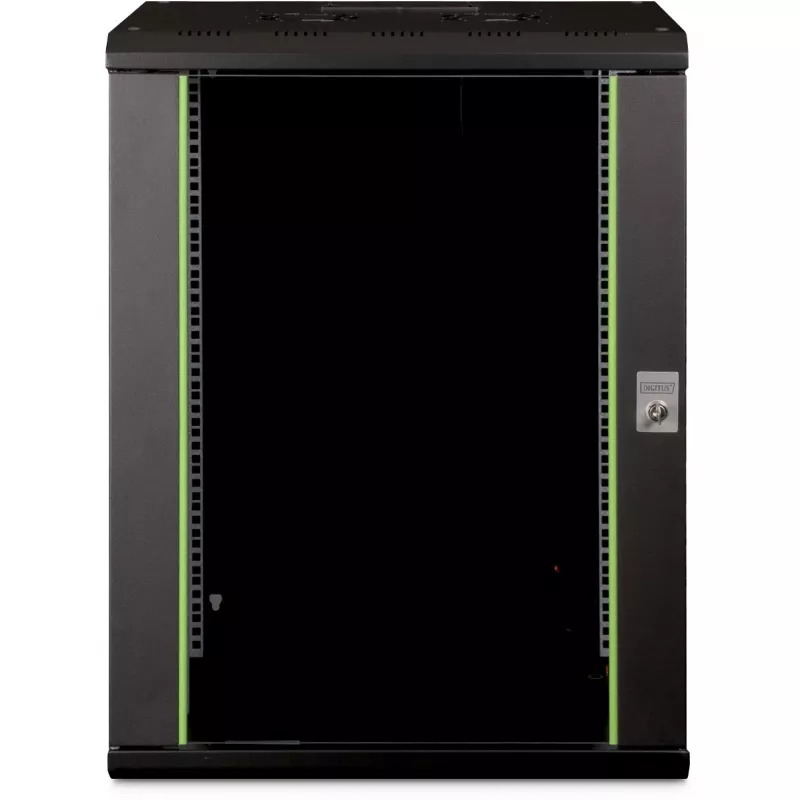

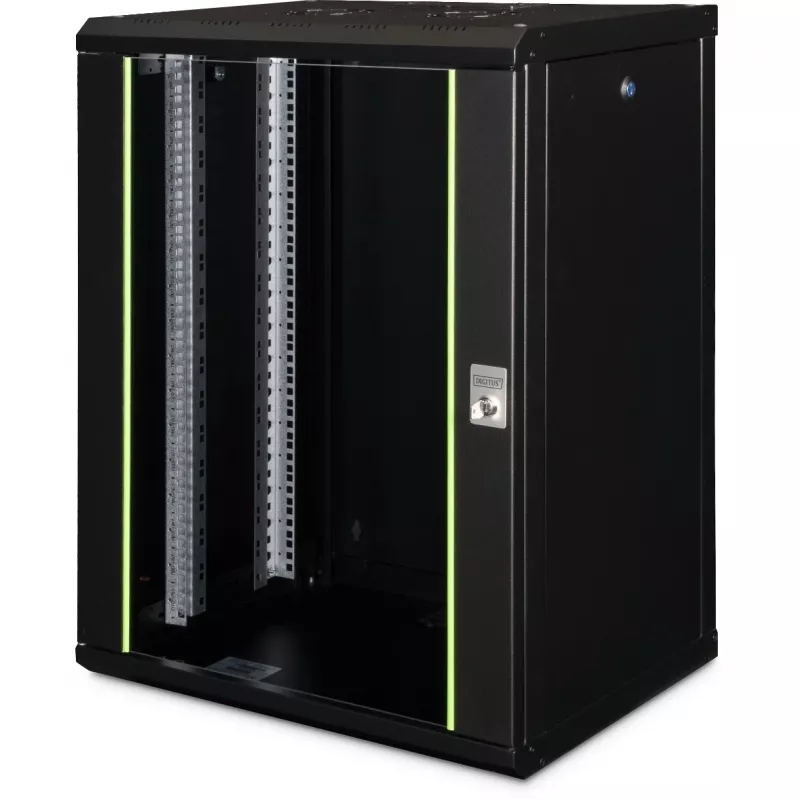

The DIGITUS Unique Series wall mounted rack (DN-19 16-U-SW) is a 16U network cabinet designed for reliable wall installation in IT infrastructures. Constructed from up to 1.5 mm thick sheet steel with an electrostatic powder coat finish in black (RAL 9005), the cabinet measures 600 × 450 mm depth, supports up to 100 kg and has an IP20 rating for protection against solid objects larger than 12.5 mm. The cabinet includes adjustable 483 mm (19") galvanized profile rails, a lockable framed glass front door, removable and lockable side panels, and pre-cut cable inlets in the roof, back wall and floor for flexible cabling.

Advantages

The rack offers a robust steel construction suitable for secure wall mounting and flexible internal configuration thanks to adjustable 19" profile rails labeled in rack units. Removable and lockable side panels and a lockable safety-glass front door improve accessibility and physical security. Pre-cut cable entries, a sliding roof inlet with foam seal and a fan module preparation on the roof simplify cable management and ventilation upgrades. The housing can be converted to a free-standing unit using optional leveling feet or casters.

Suitable for

• Small to medium network installations requiring a compact 16U wall cabinet
• Server rooms or comms closets where IP20 protection is sufficient
• Environments needing secure, lockable access for switches, patch panels and 19" equipment

Key specifications

• Model: DIGITUS Unique Series DN-19 16-U-SW
• Rack capacity: 16U
• Dimensions (W×D): 600 × 450 mm
• Maximum load: 100 kg
• Weight: 30 kg
• IP rating: IP20
• Material: up to 1.5 mm sheet steel, powder coated (black RAL 9005)

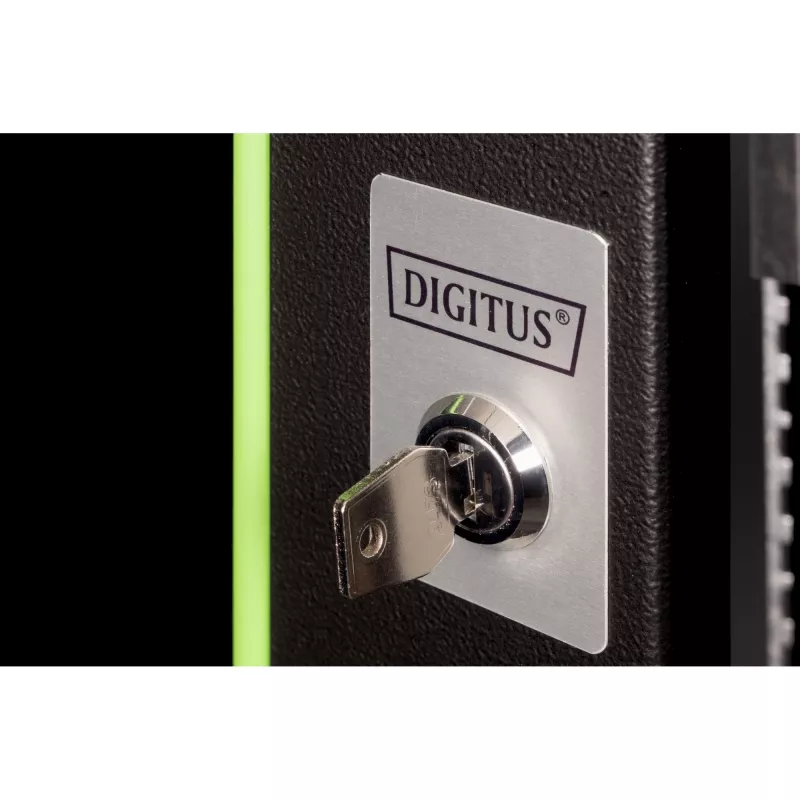

• Front: lockable safety-glass door with steel frame; door hinges reversible

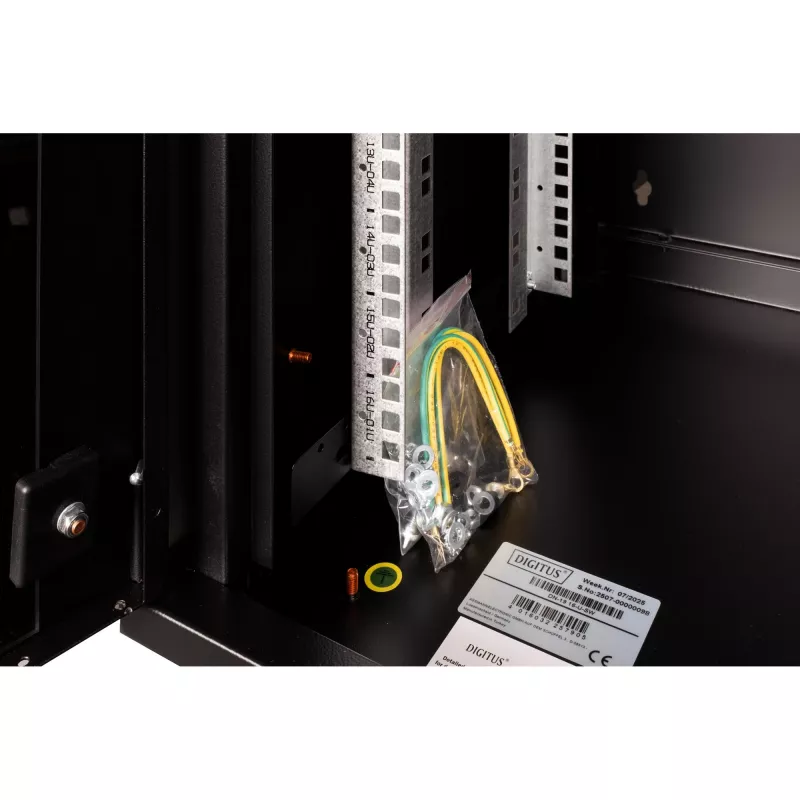

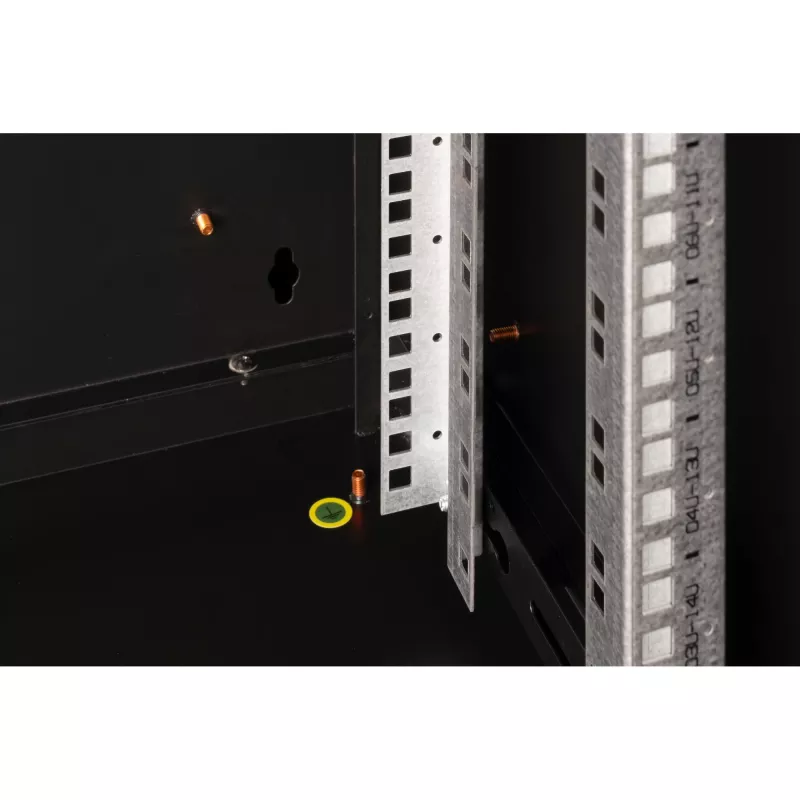

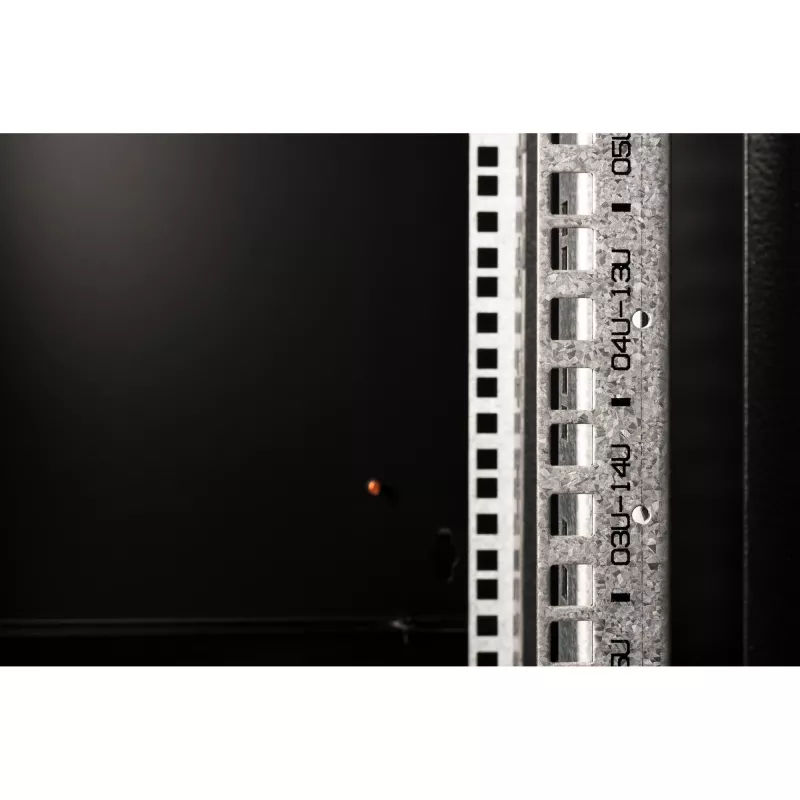

• Rails: two pairs galvanized 483 mm (19") profile rails, depth adjustable, RU markings readable both directions
• Cable management: sliding roof inlet with foam seal, pre-cut entries in back wall and floor with plastic covers

How to use

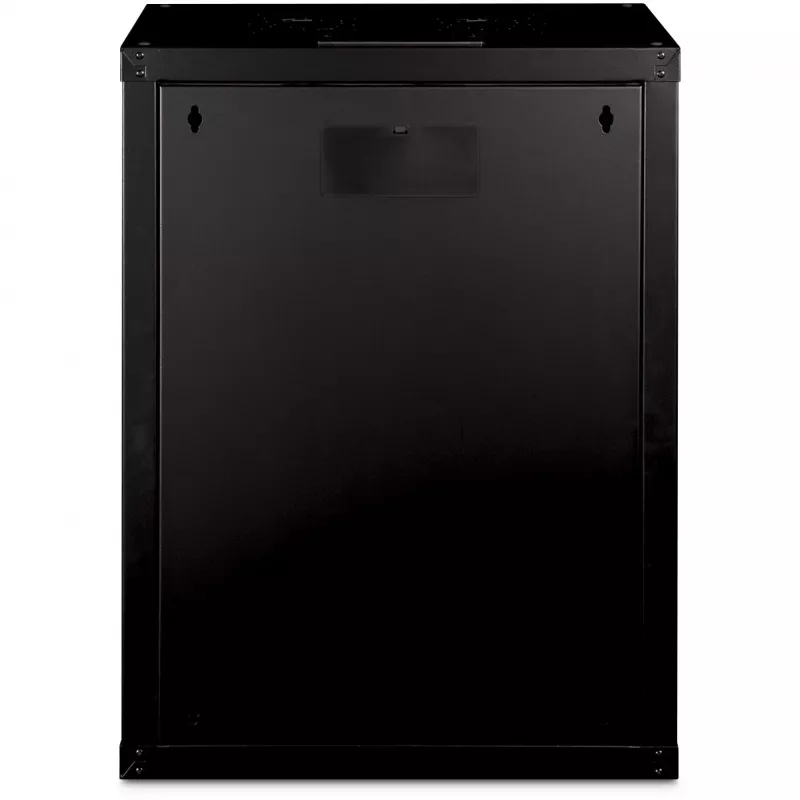

Mount the cabinet by first bolting the housing frame plate securely to the wall, then attach the housing to the frame. Install 19" equipment on the adjustable profile rails and route cabling through the sliding roof inlet or pre-cut entries in the back and floor. Use the removable side panels and reversible door hinges to improve access during installation or maintenance. If needed, convert the cabinet into a floor-standing unit by fitting optional leveling feet or casters.

Recommendations

For safe operation, observe the 100 kg maximum load and ensure even weight distribution across rack units; maintain adequate ventilation and plan cable routes using the provided inlets. The IP20 rating means the cabinet is suitable for indoor use only and not for locations exposed to water or fine dust.
