Rack de montaje en pared Digitus DN-49103 9U IP20 60 kg negro

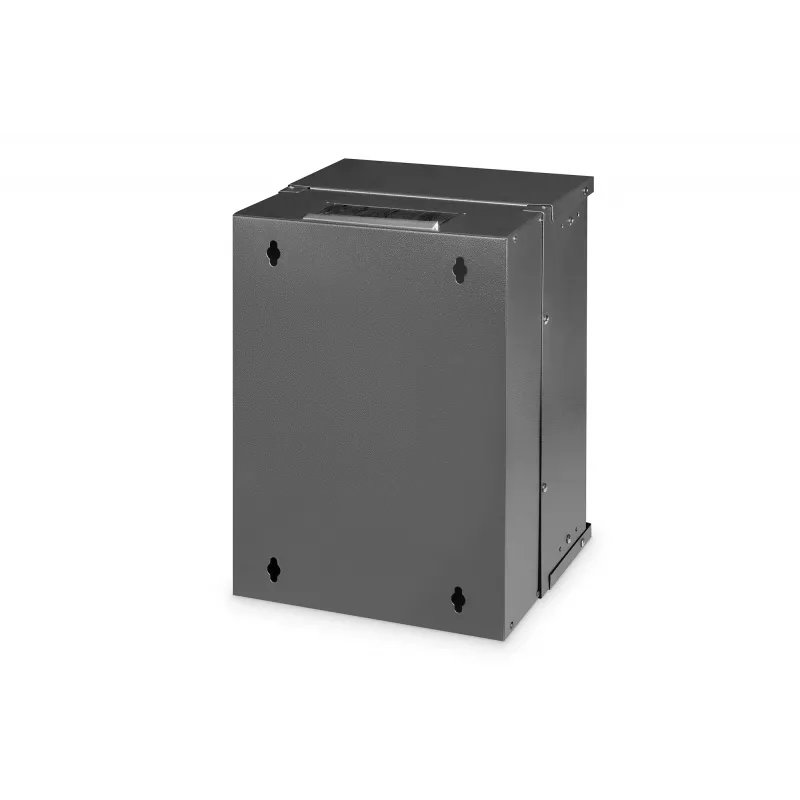

The DIGITUS Wall Housing SOHO PRO series offers a compact 254 mm (10") wall-mounted rack solution delivered unassembled in an optimized flat pack for efficient transport and storage. This 9U model (DN-49103) is designed for indoor use (IP20) and provides secure, organized placement for network equipment in limited-space environments.

Advantages

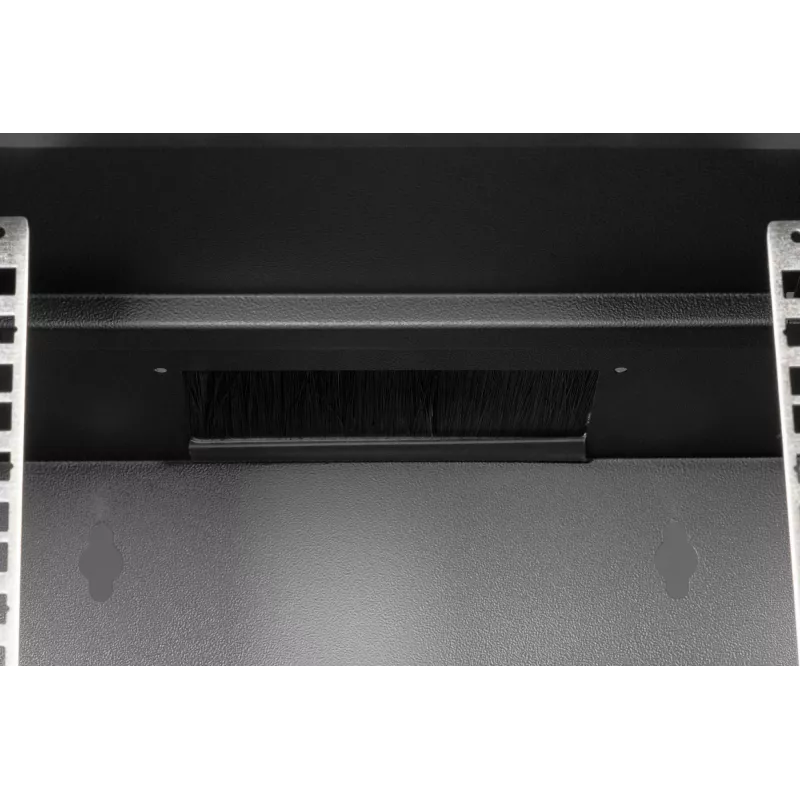

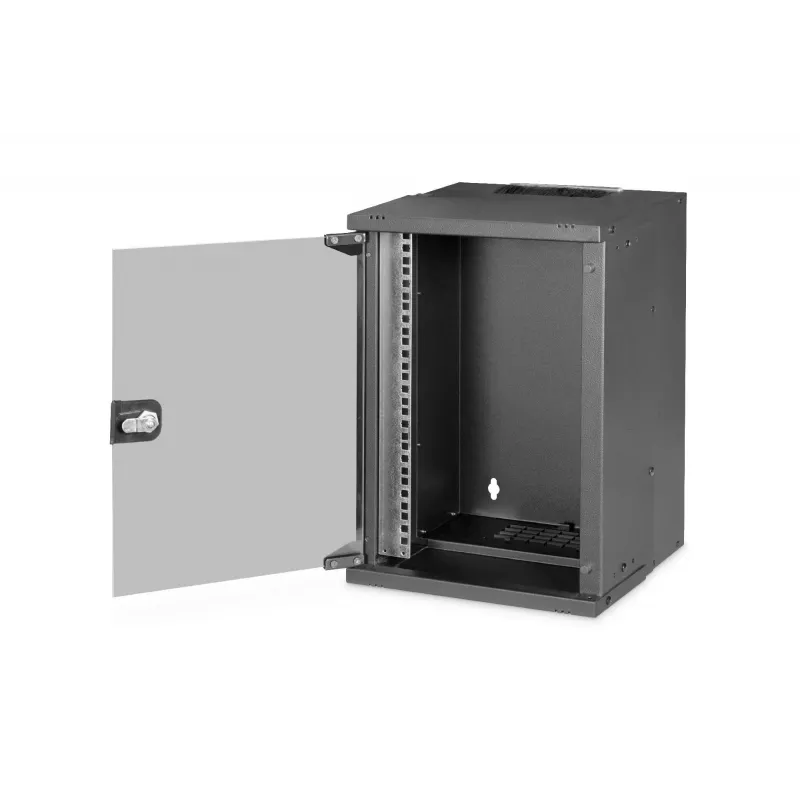

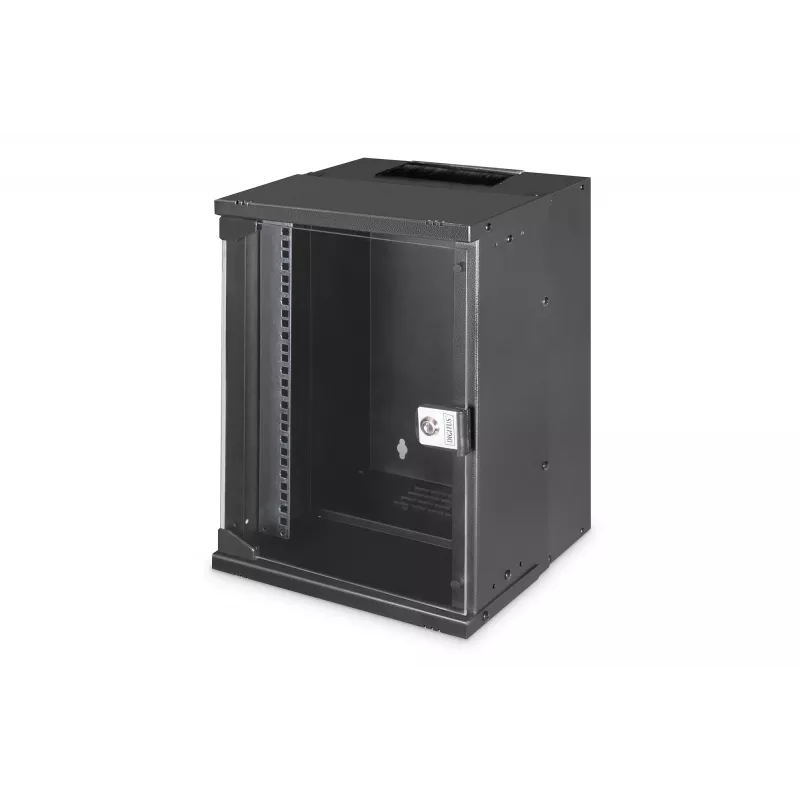

The cabinet is lightweight yet robust, made from sheet steel up to 1.5 mm thick and finished with electrostatic powder coating in jet black (RAL 9005). A full glass door with reversible hinges, adjustable galvanized 10" profile rails with clear rack unit markings, and cable entries in the top and bottom simplify installation and cable routing. The product ships flat-packed to reduce shipping volume and includes step-by-step assembly instructions for quick setup.

Suitable for

• Small office or home office network installations
• Sub-distribution points in commercial buildings
• Locations with limited space requiring a 10" rack

Key specifications

• Model: DIGITUS DN-49103
• Rack capacity: 9U (254 mm / 10")
• Protection rating: IP20 (indoor use)
• Max. payload: 60 kg
• External dimensions (H×W×D): 457 × 316 × 298 mm
• Material: sheet steel (up to 1.5 mm)
• Colour: black (RAL 9005)
• Features: full glass door, reversible hinges, cable entry top and bottom, adjustable galvanized 10" rails

How to use

Unpack the optimized flat pack and follow the included step-by-step instructions to assemble the cabinet. Mount the cabinet to a suitable wall structure using appropriate fasteners for the wall material, install and adjust the 10" profile rails to the required depth, and secure network devices to the rails. Route cabling through the top or bottom cable entries and close the glass door; use the key lock to restrict access as needed.

Recommendations

Install the rack on a load-bearing wall and verify that the chosen mounting hardware supports the cabinet’s loaded weight. Ensure adequate ventilation around installed equipment and avoid exposure to moisture or outdoor conditions to maintain the IP20 rating.
