Rack de montaje en pared Digitus DN-49105 12U 60 kg IP20

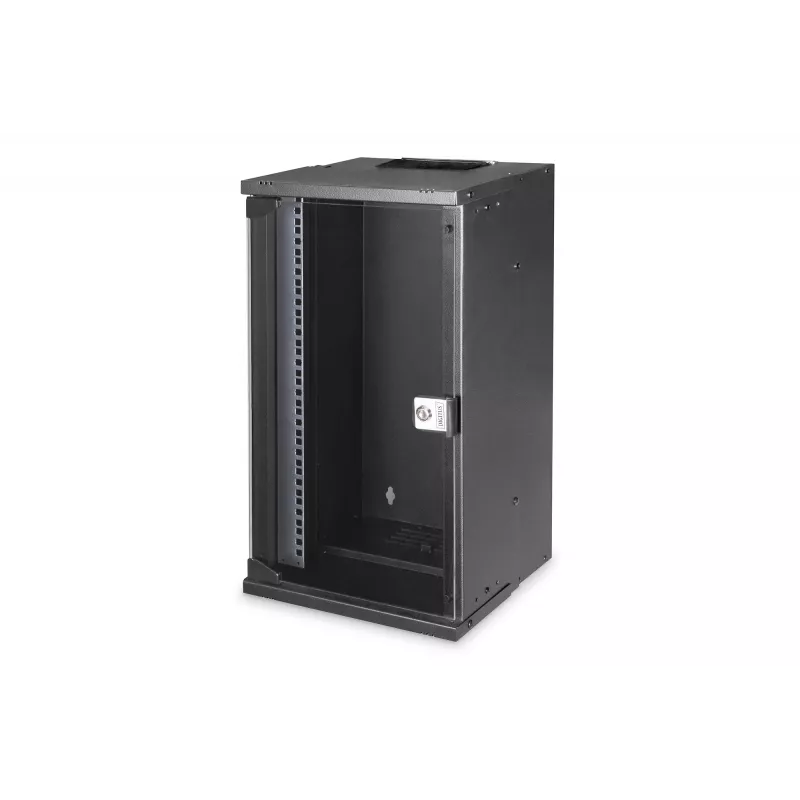

The DIGITUS Wall Housing SOHO PRO series offers a compact 254 mm (10") 12U wall-mounted rack designed for indoor network installations. Delivered unassembled in an optimized flat pack, this cabinet supports up to 60 kg and provides adjustable 10" profile rails, a full glass door and cable entry points in the roof and floor. The robust steel construction (up to 1.5 mm sheet thickness) is finished with electrostatic powder coating and the door hinge can be swapped to suit installation needs.

Advantages

The wall-mounted rack is lightweight and space-efficient while still supporting standard 10" equipment up to 60 kg. It ships in a compact flat pack for economical transport and simple handling. Adjustable galvanized 10" profile rails are marked with rack unit indicators for accurate mounting, and the cabinet includes a full glass door and roof/floor cable entries for tidy cable management. Finish options and switchable door hinges increase installation flexibility.

Suitable for

• Small offices or SOHO network installations
• Sub-distribution points with limited wall space
• Home network cabinets and multimedia equipment
• Environments requiring indoor protection level IP20

Key specifications

• Brand: DIGITUS
• Model: DN-49105
• Rack capacity: 12U (254 mm / 10")
• Maximum load: 60 kg
• Protection rating: IP20 (indoor use)
• Material: sheet steel up to 1.5 mm thickness
• Finish: electrostatic powder coating (standard black RAL 9005)
• Dimensions (H×W×D): 591 × 316 × 298 mm
• Weight: 7.49 kg

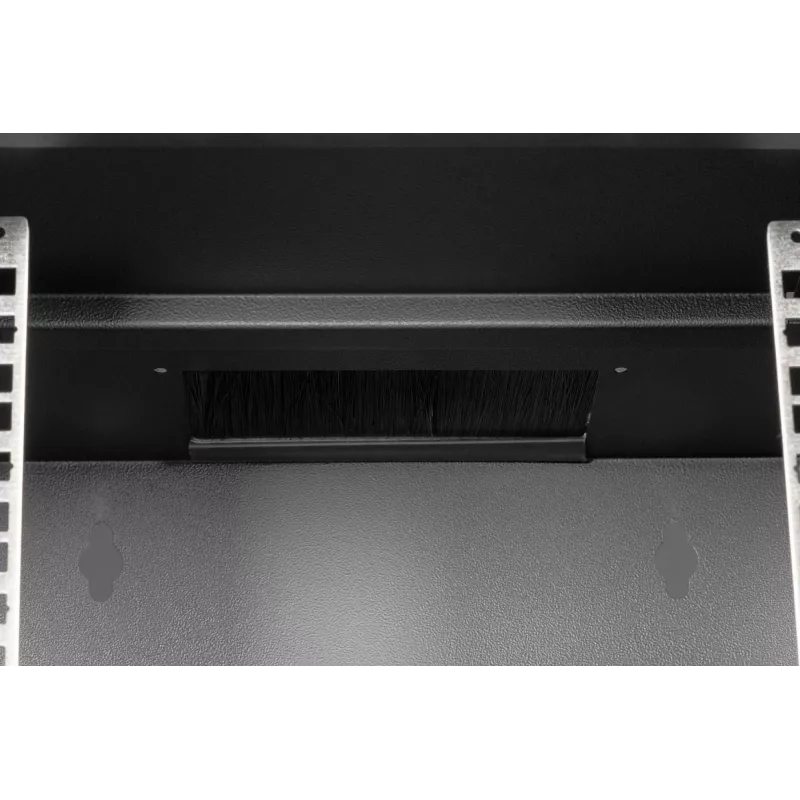

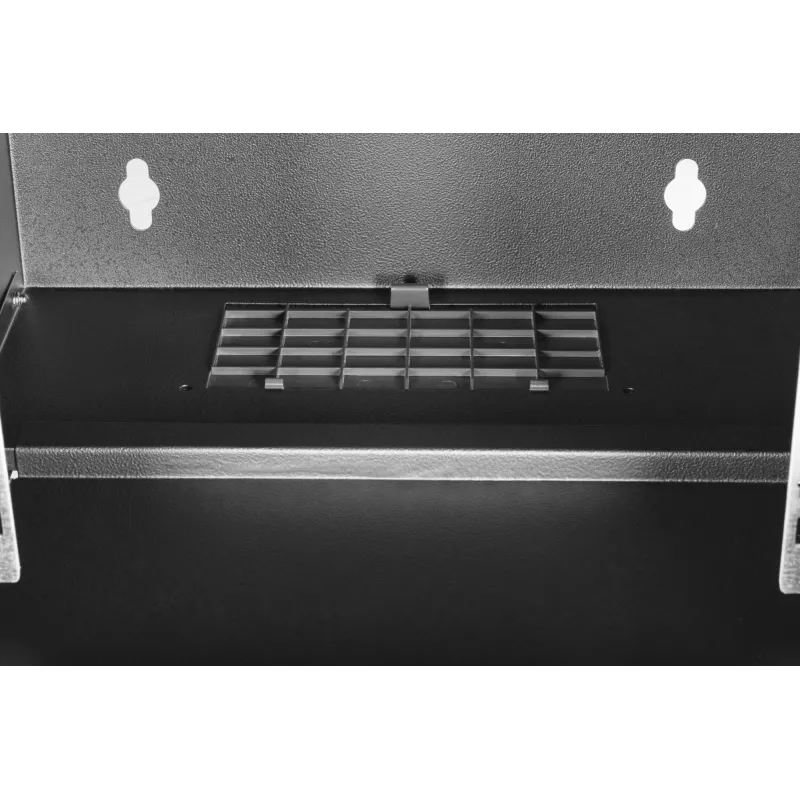

• Features: full glass door, adjustable galvanized 10" profile rails, cable entry top and bottom, switchable door hinge

How to use

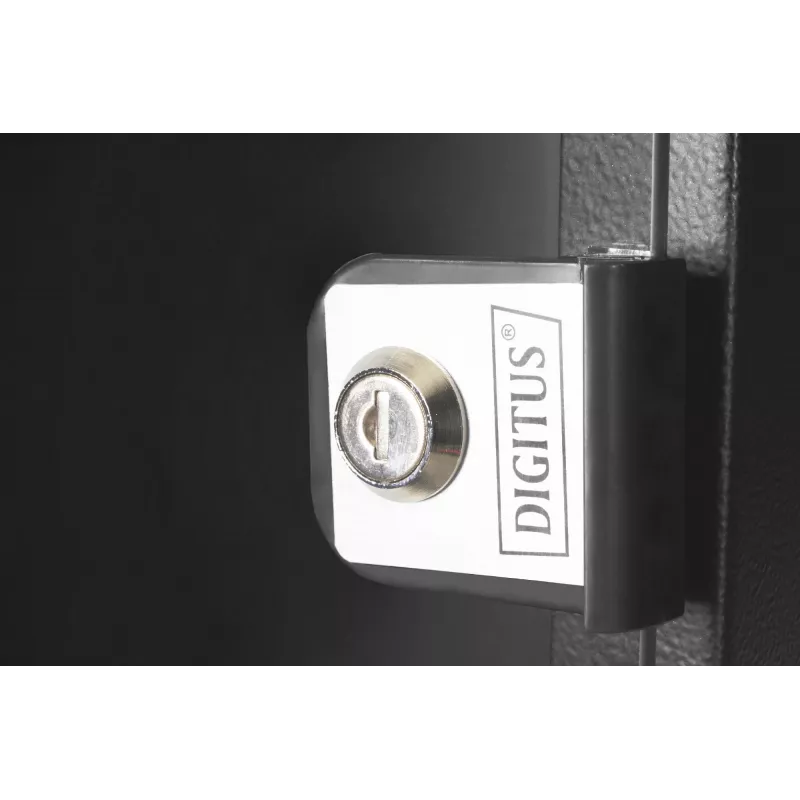

Unpack the cabinet and follow the included step-by-step assembly instructions to mount the body and fit the internal profile rails. Adjust the depth of the galvanized 10" profile rails to suit your equipment, then secure devices using standard 10" rack mount hardware. Route cables through the roof or floor cable entries and close the full glass door; use the provided key lock if required. Fix the assembled cabinet to a suitable load-bearing wall using appropriate anchors and fasteners for the wall material and expected load.

Recommendations

Install the cabinet indoors only (IP20). Ensure wall mounting points and anchors are rated for the cabinet weight plus installed equipment (60 kg max). Maintain clearance for ventilation and service access, and secure equipment with compatible 10" rack screws and cage nuts.
