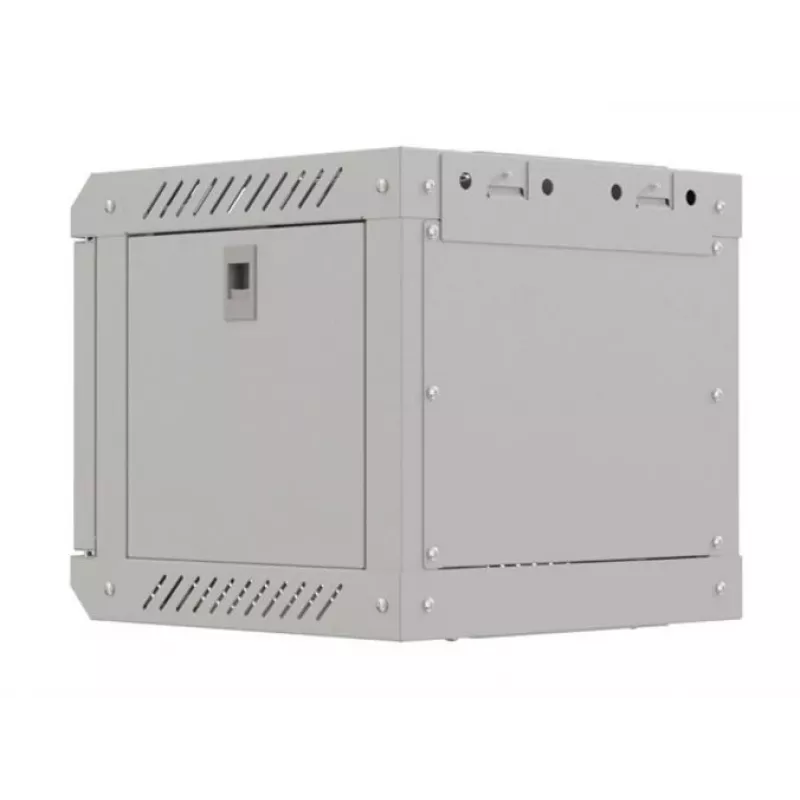

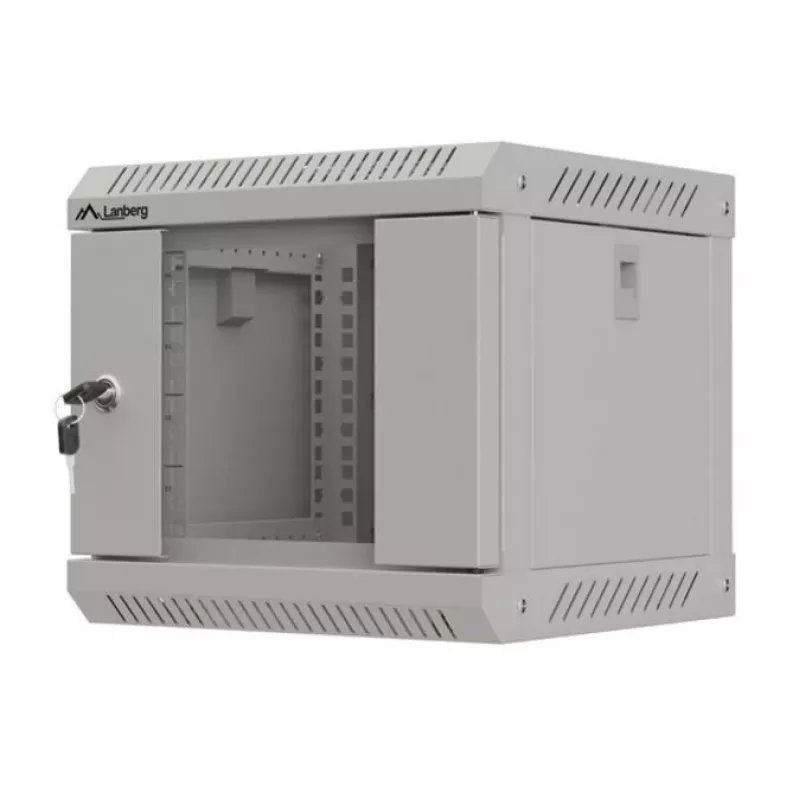

Rack de montaje en pared Lanberg WF11-3304-10S 4U gris capacidad 30 kg

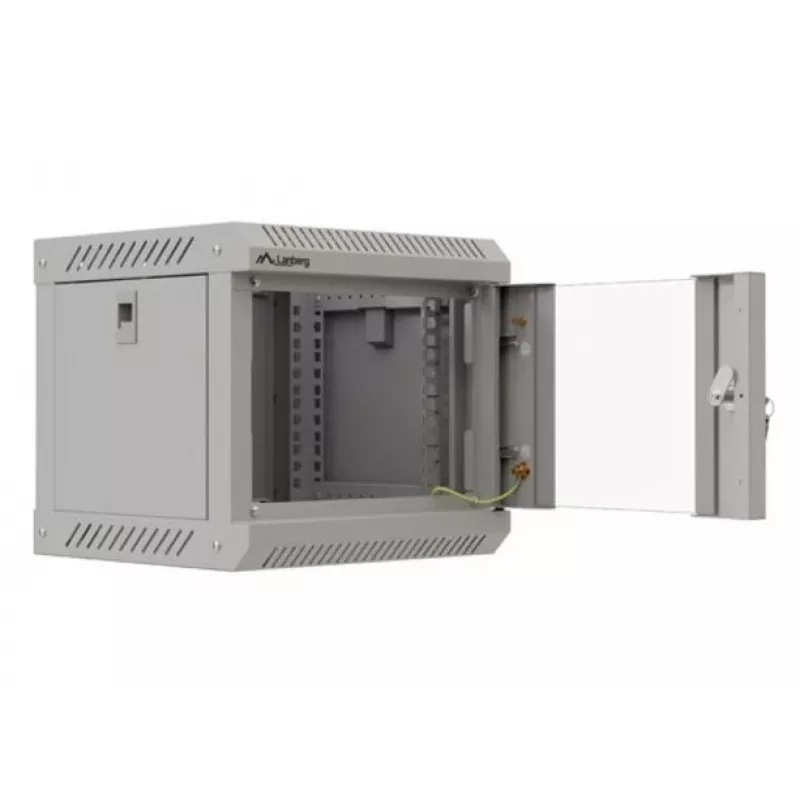

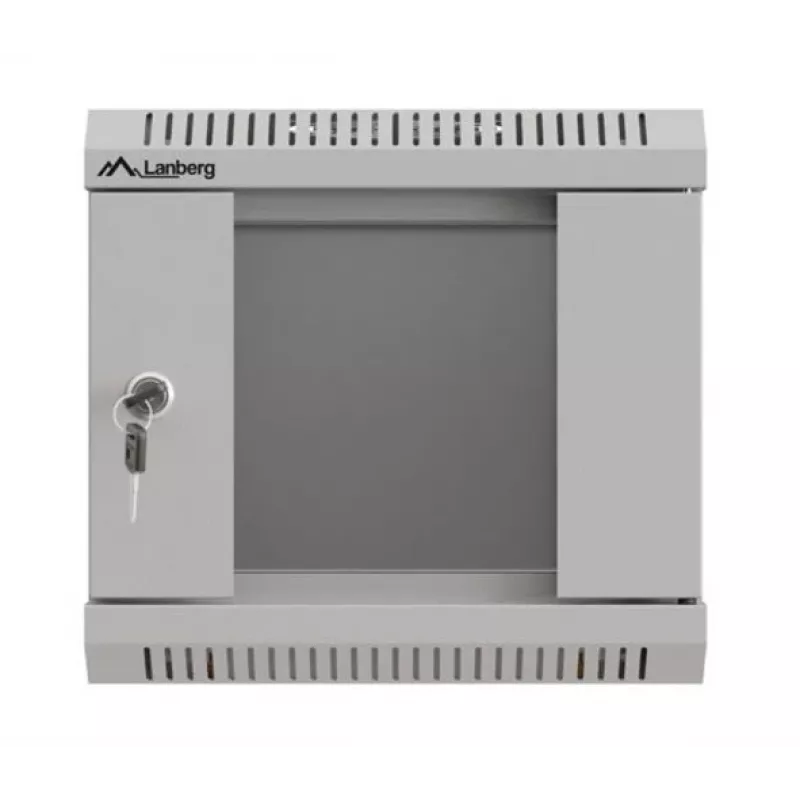

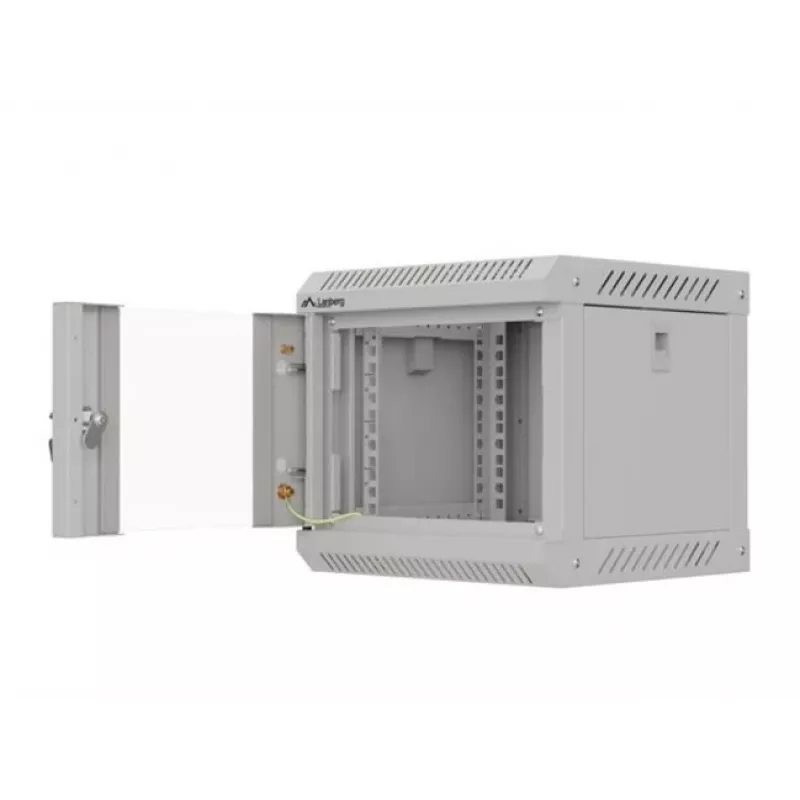

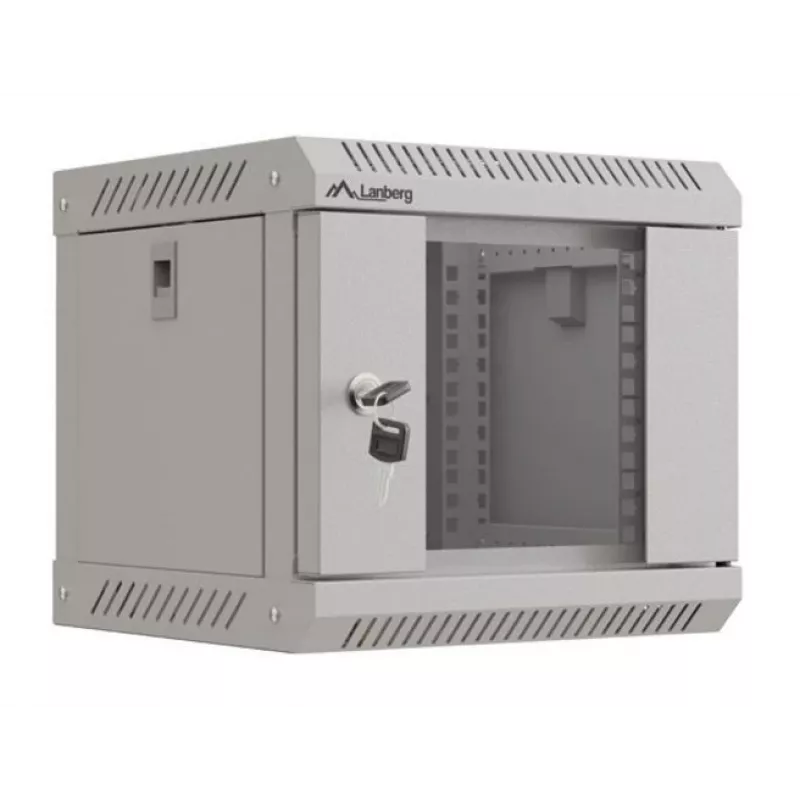

The Lanberg WF11-3304-10S is a 4U, 10" wall-mounted rack cabinet designed for secure and organized installation of network and IT equipment. It has a grey finish, an IP20 rating for indoor use, a maximum load capacity of 30 kg and a compact footprint (300 x 300 mm). The cabinet includes a key lock, cable openings in top and bottom panels, a glass front door and a grounding cable for safe operation.

Advantages

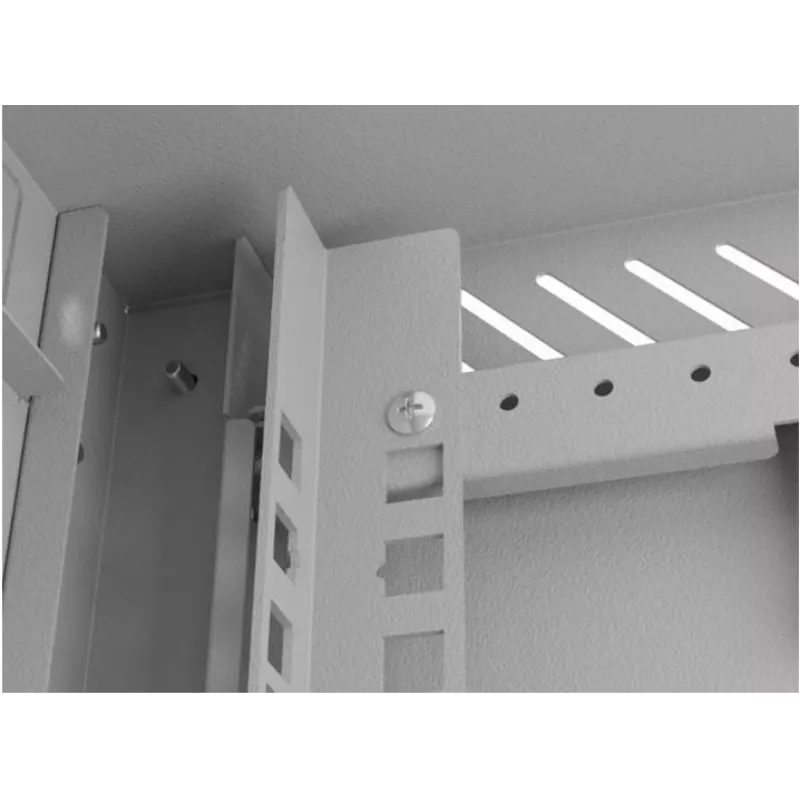

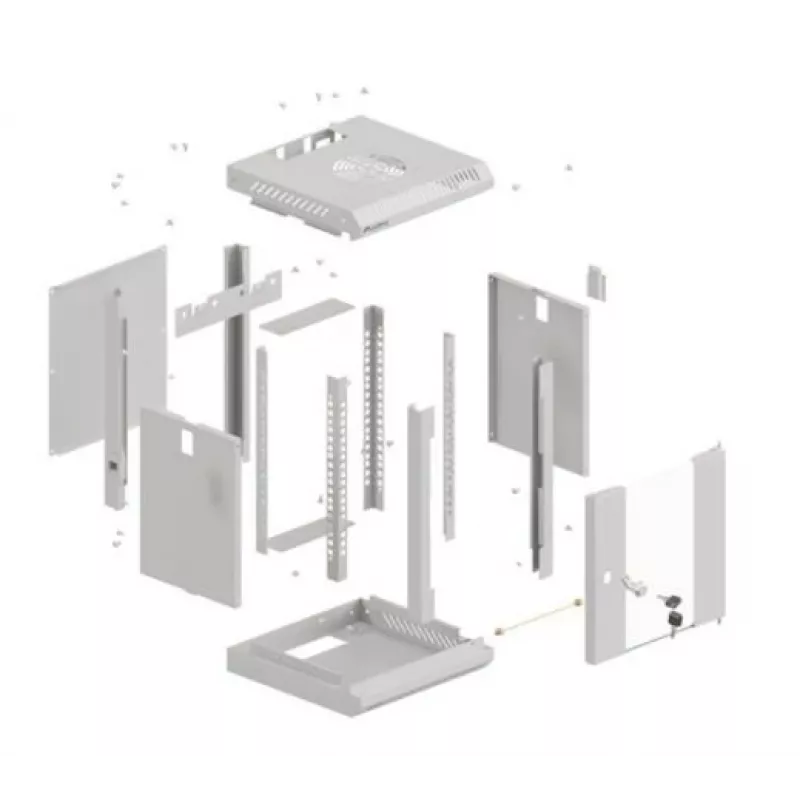

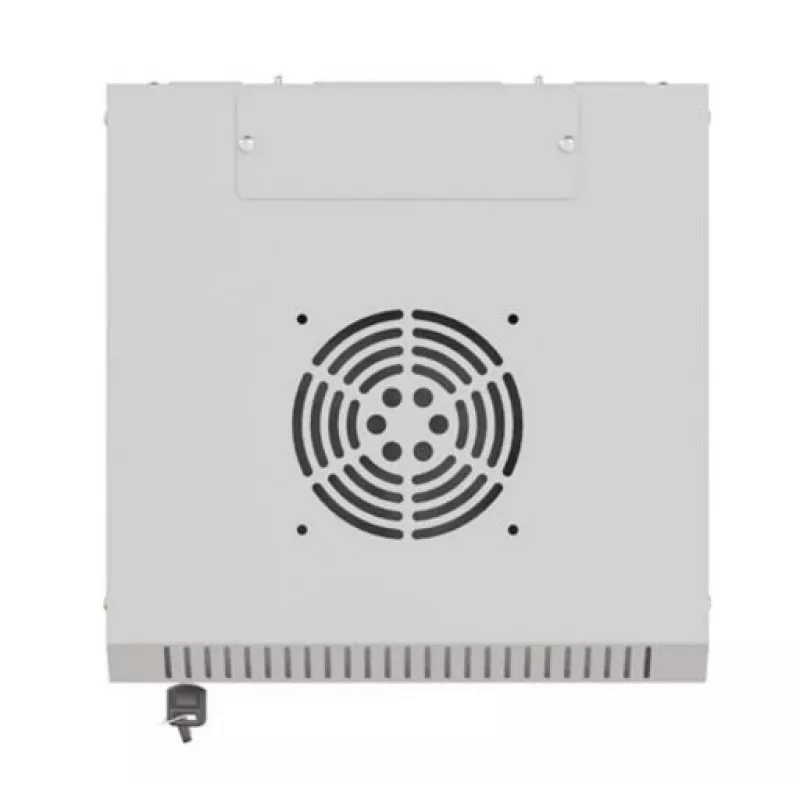

The WF11 series offers a combination of compact dimensions and practical features: four vertical mounting rails including two additional rear rails for increased stability, optimized ventilation with ceiling and bottom perforations, the option to mount a fan without using equipment space, and flexible access via pull-down side doors and a reversible front door. The cabinet is made of rolled steel for durability, packed flat for reduced transport costs, and compatible with a wide range of Lanberg rack accessories.

Suitable for

• Home IT networks and small office network equipment
• CCTV and alarm system components
• Server room or edge installations with limited space

Key specifications

• Model: Lanberg WF11-3304-10S
• Rack capacity: 4U (10")
• External dimensions (W×D×H): 300 × 300 × 281 mm
• Weight: 6.8 kg
• Maximum load capacity: 30 kg
• Protection rating: IP20 (indoor use)
• Colour: Grey
• Features: key lock, glass front door, grounding cable, cable openings top/bottom, 4 vertical mounting rails

How to use

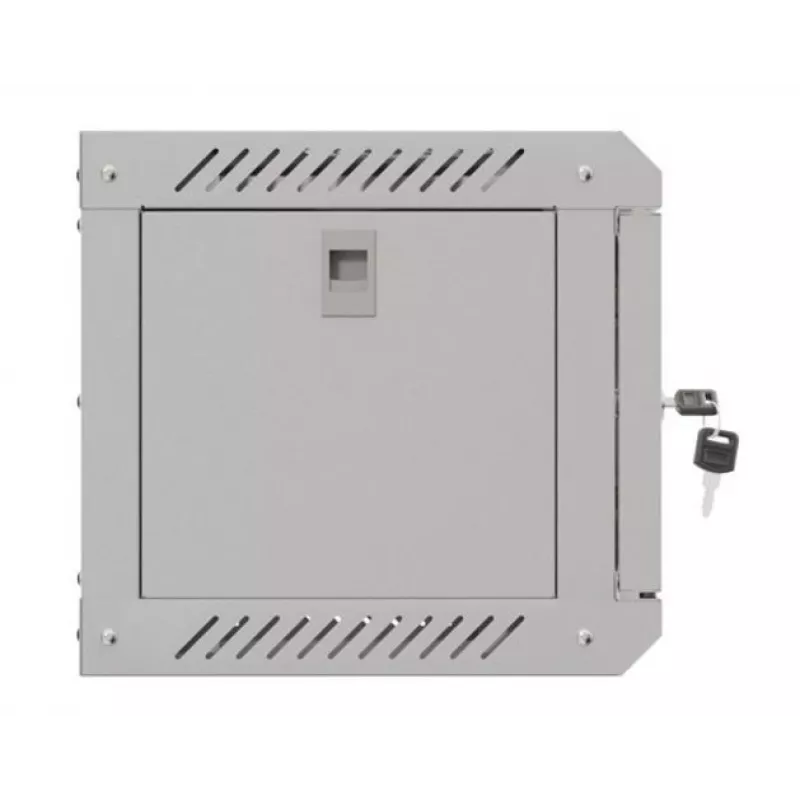

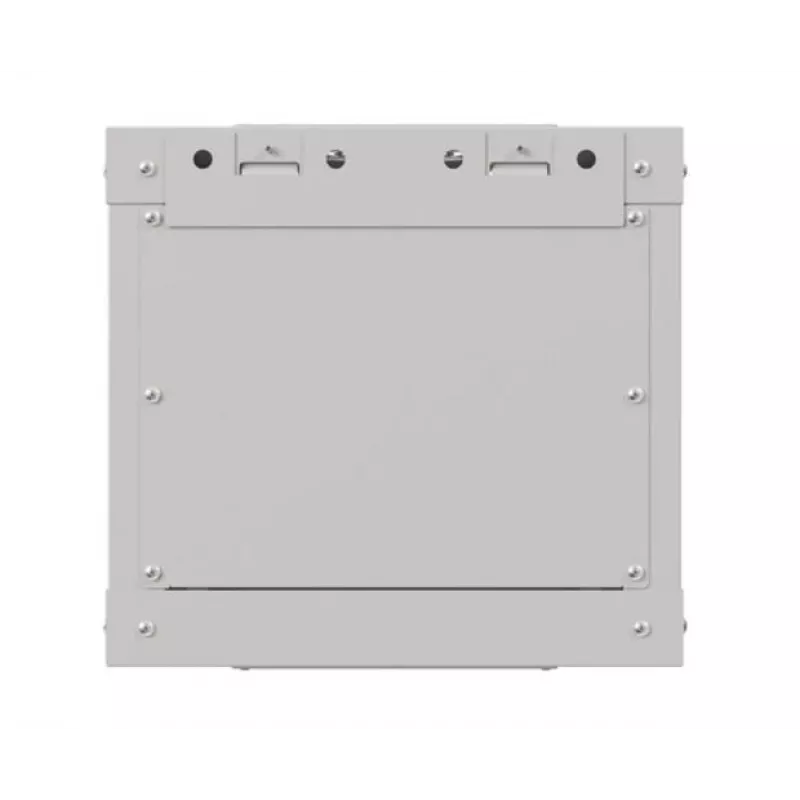

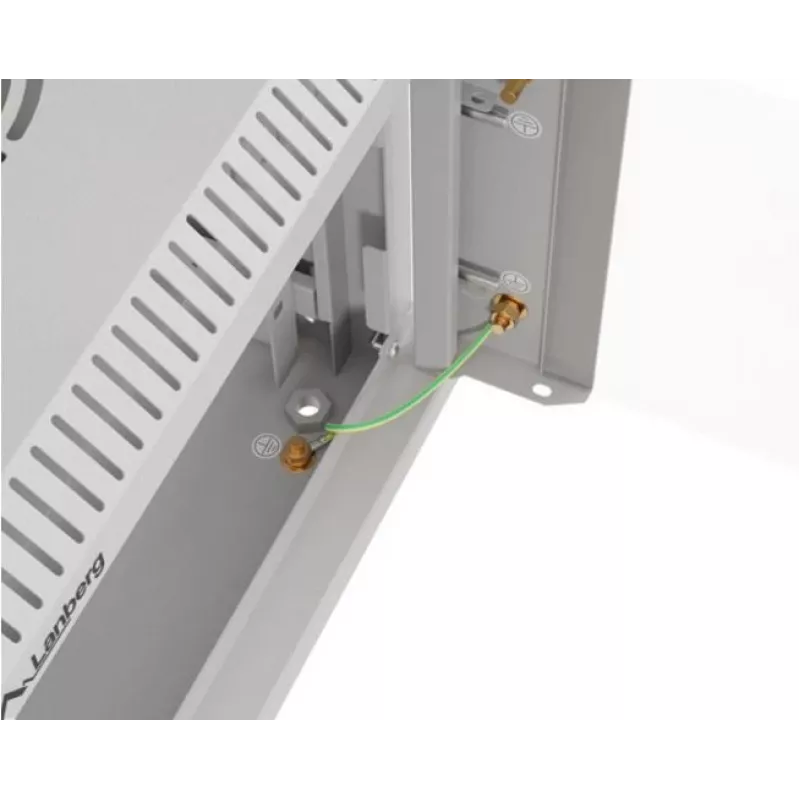

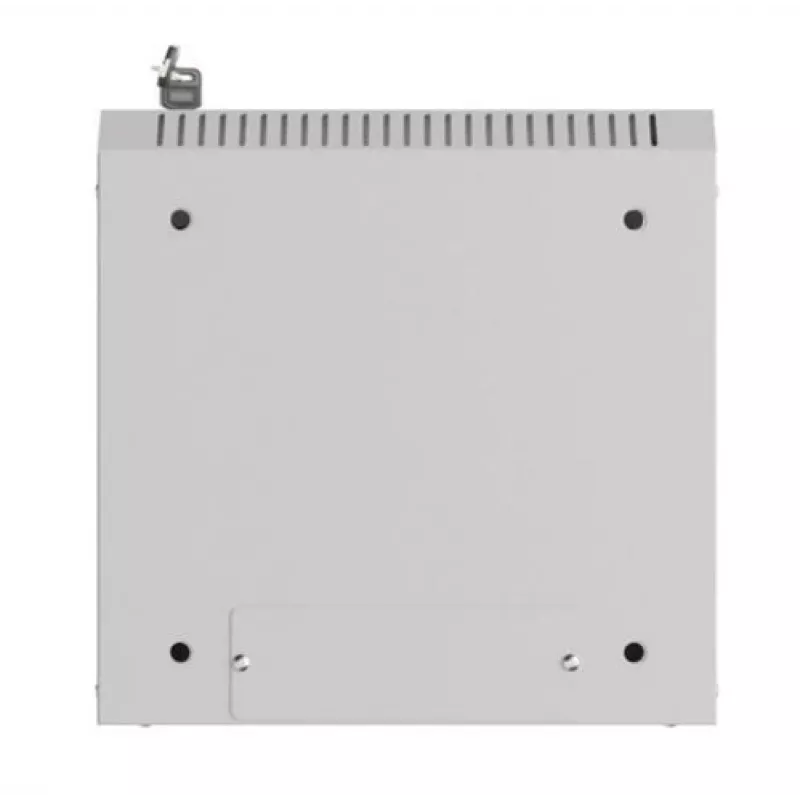

Mount the rack on a suitable indoor wall using the included rear mounting strip and appropriate fasteners for the wall type. Install equipment on the vertical mounting rails and secure with standard rack screws. Route cables through the top or bottom openings and connect the included grounding cable to a certified earth point. Configure the front door handedness (left or right) as needed and use the side doors for easier access during installation or maintenance.

Recommendations

For reliable operation, ensure the total equipment weight does not exceed 30 kg, allow airflow through the perforated panels, and install the cabinet on a load-bearing wall with appropriate anchors. Use compatible Lanberg accessories (shelves, patch panels, cable organizers, fans or PDUs) to optimize rack layout and cable management.
