Rack de montaje en pared Triton RBA-06-AD6-CAX-A1 6U Blanco

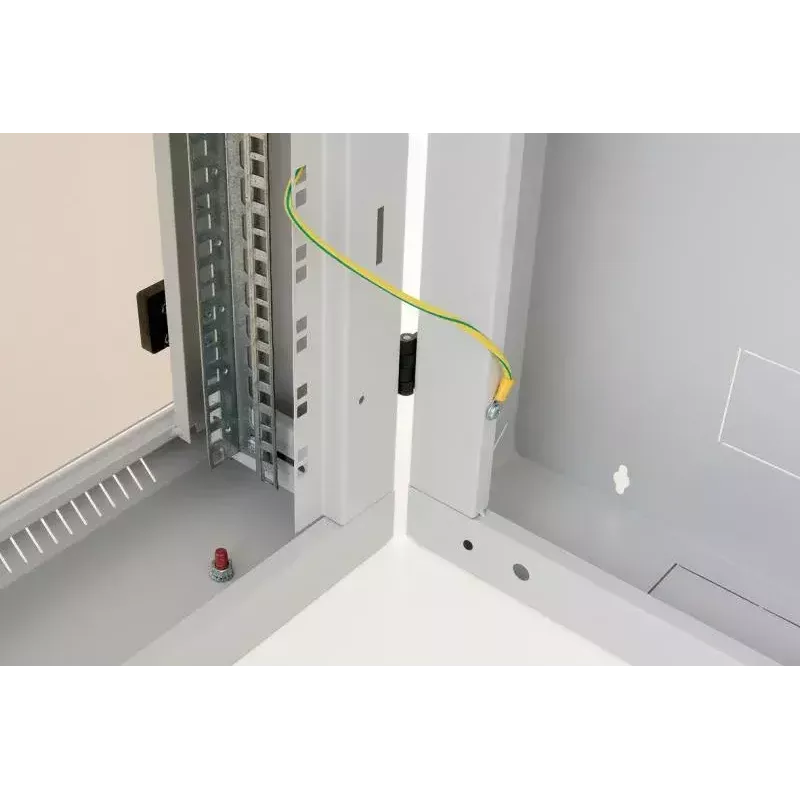

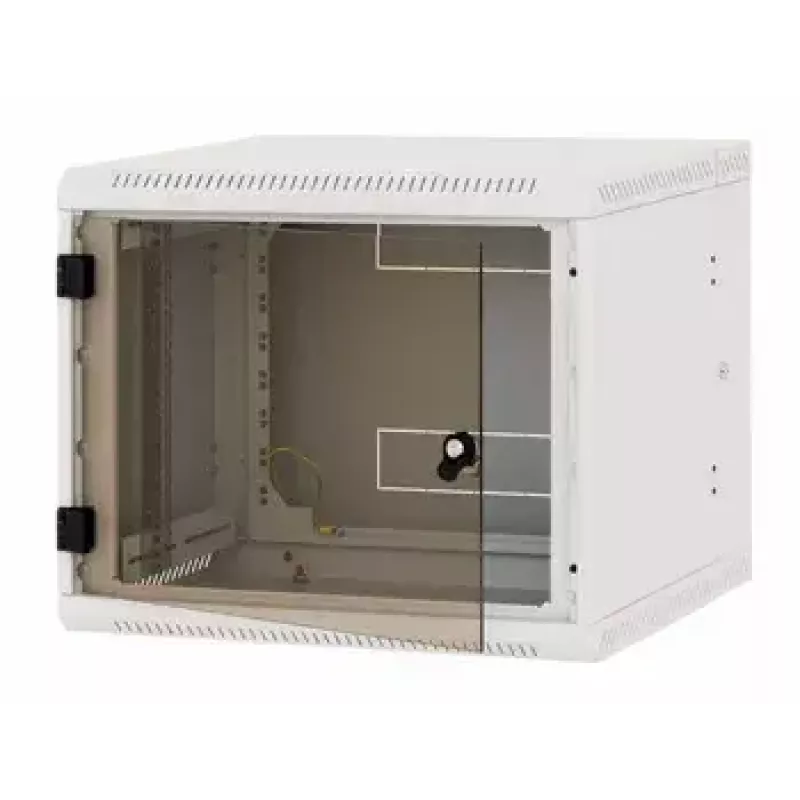

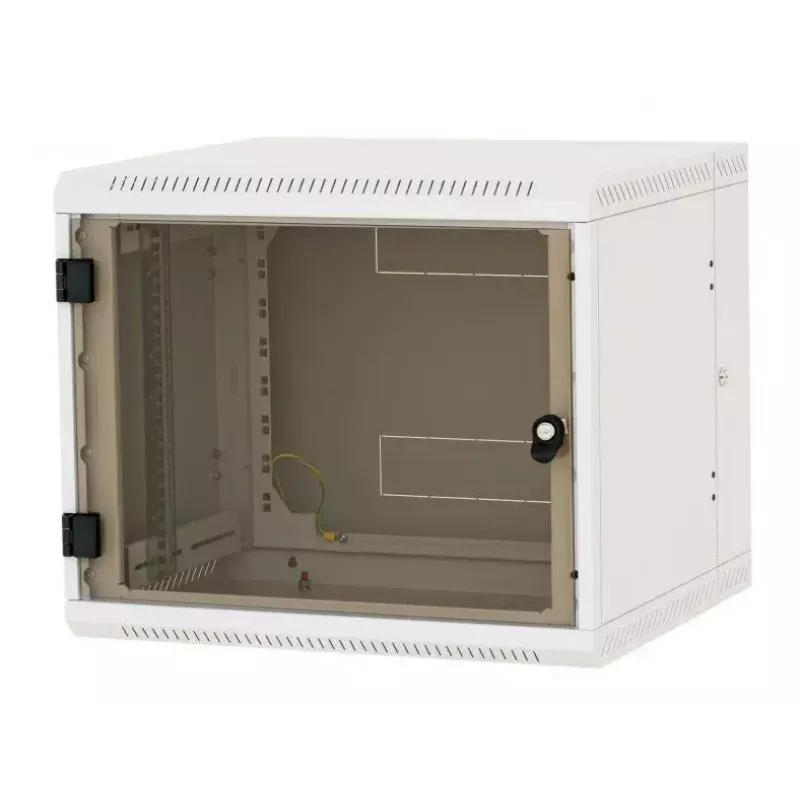

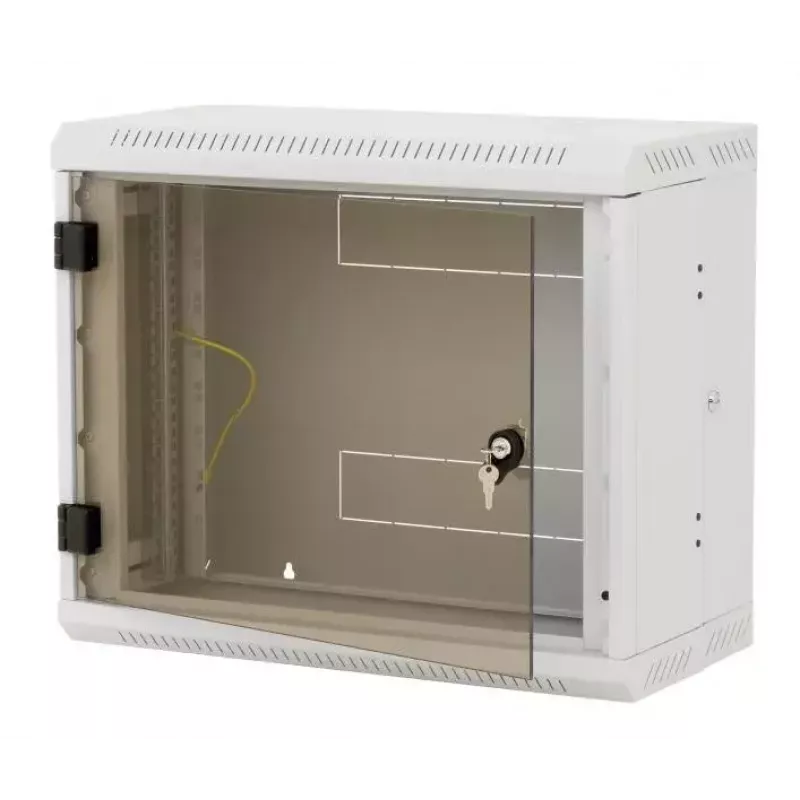

The Triton RBA-06-AD6-CAX-A1 is a 6U wall-mounted data and telecommunication cabinet designed for efficient use of space. The cabinet features a robust welded construction and modern finishing; the standard front door is glass, with optional steel or perforated doors. Opening parts allow easy access to the rear section and components are interconnected and earthed for safety.

Advantages

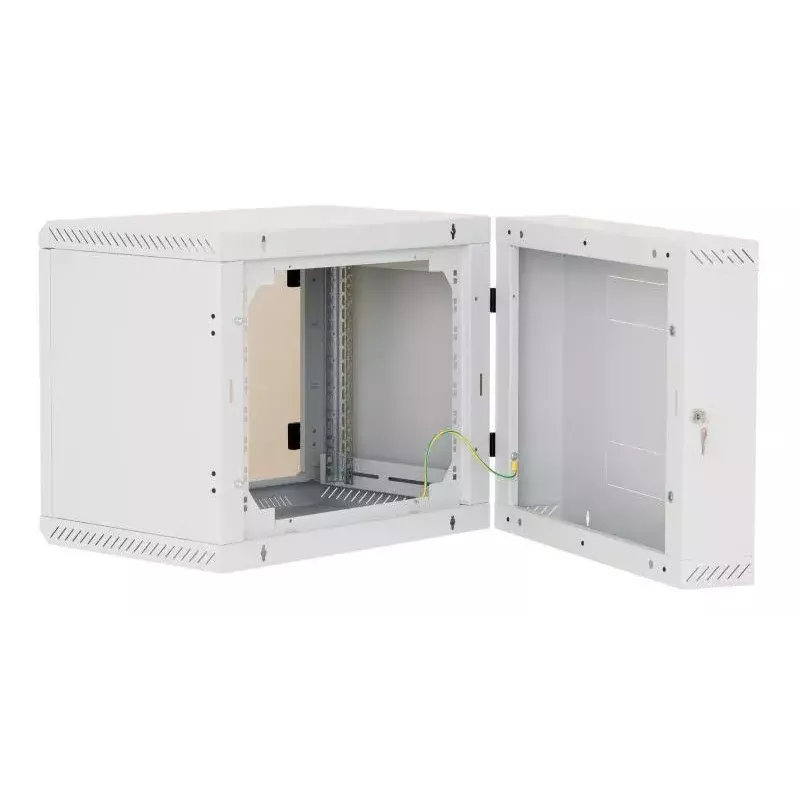

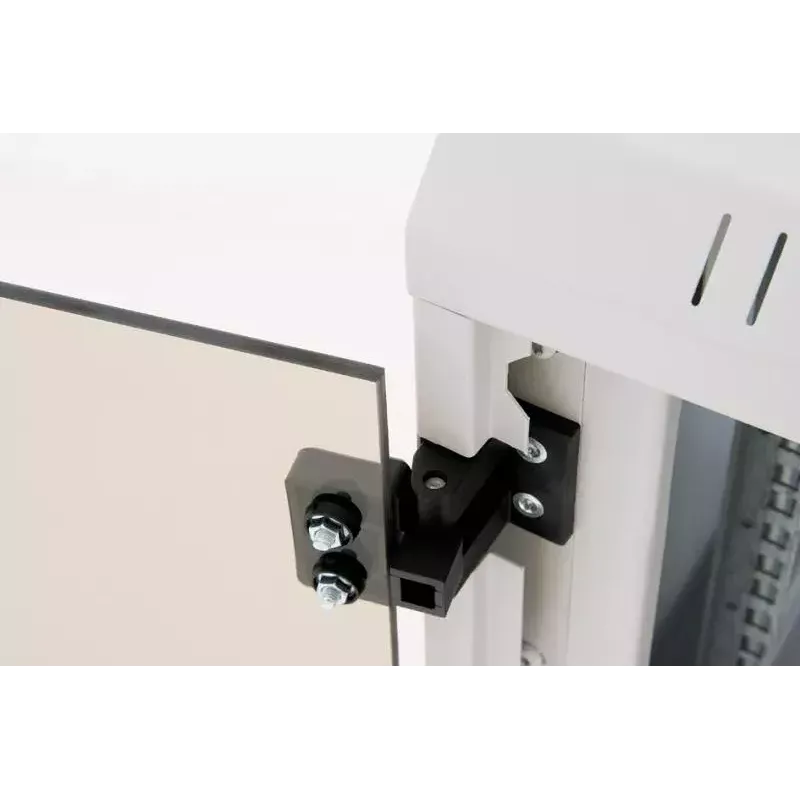

The cabinet offers easy access to the rear section through removable front parts secured by chain shackles, adjustable 19" vertical rails that can be positioned at any depth for simplified device mounting and cable management, and breakout-type blanking panels for cable routing at the top, bottom and rear. The hinge system permits nearly 180° opening of the door and the door can be removed or re-mounted to change the opening direction.

Suitable for

• Small network closets and server rooms where wall-mounted 6U racks are required
• Mounting 19" network switches, patch panels and small servers
• Environments needing organized cable routing and dust protection for cabling

Key specifications

• Model: Triton RBA-06-AD6-CAX-A1
• Rack capacity: 6U (19")
• Weight: 20.1 kg
• Colour: White
• Construction: Welded steel frame with glass front door (optional steel or perforated door)
• Maximum load capacity: as specified by manufacturer

How to use

Mount the cabinet on a suitable wall surface following local installation standards and the manufacturer’s instructions. Unlock the chain shackles to remove the front section for unrestricted access to the rear. Adjust the pair of 19" vertical rails to the required depth before installing equipment. Route cables through the top, bottom or rear openings and use the supplied plastic frame and brush-type blanking panel to seal openings against dust.

Recommendations

Install the cabinet on a load-bearing wall and confirm that wall fixings and anchors are suitable for the cabinet weight and installed equipment. Use proper earthing for all interconnected parts and plan cable entry points before mounting devices to maintain efficient airflow and dust protection.
