Rack de pared Extralink 9U 600x450 gris

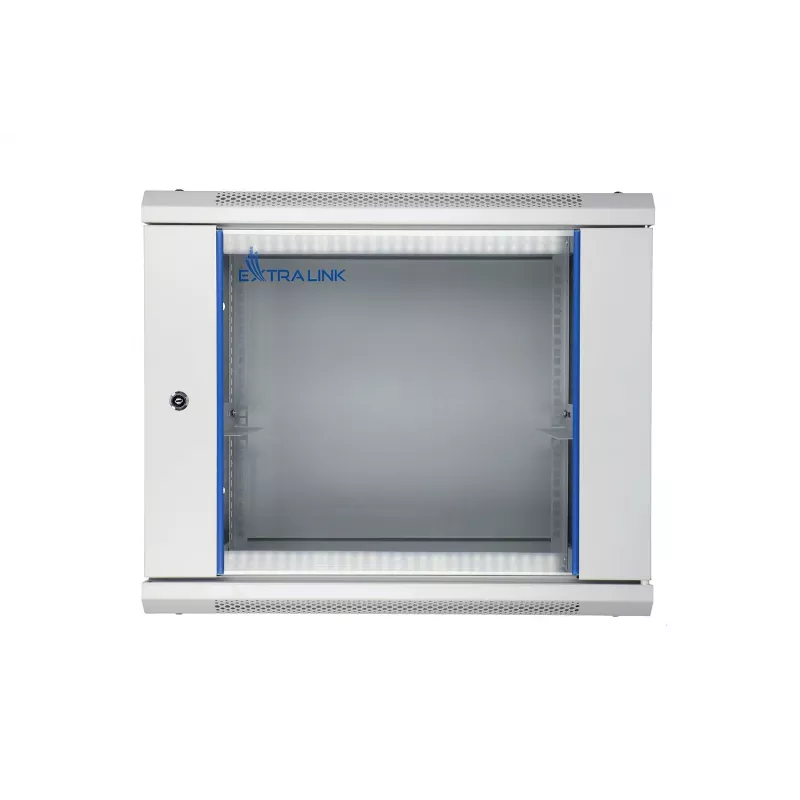

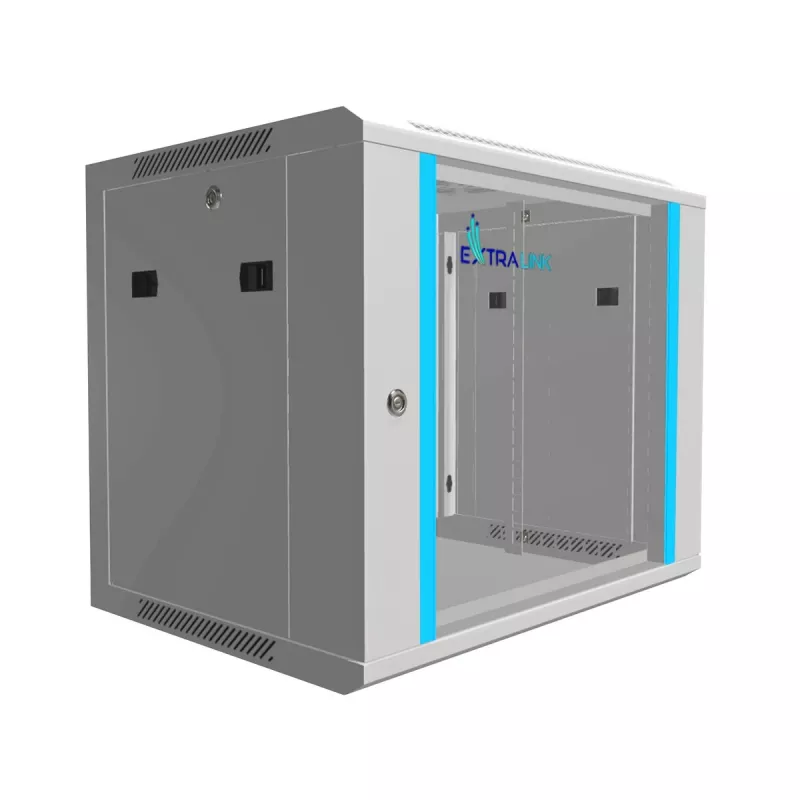

The Extralink 9U 600x450 Grey wall mounted rack cabinet is designed for mounting on walls in offices, server rooms and CCTV control rooms. Constructed from cold-rolled steel with a tempered glass front door that can be opened to the left or right, the cabinet provides a compact 9U (505 mm) height and supports organized installation of network and surveillance equipment. The sleek grey finish and included lock and keys make it suitable for environments where a combination of space saving and basic physical security is required.

Advantages

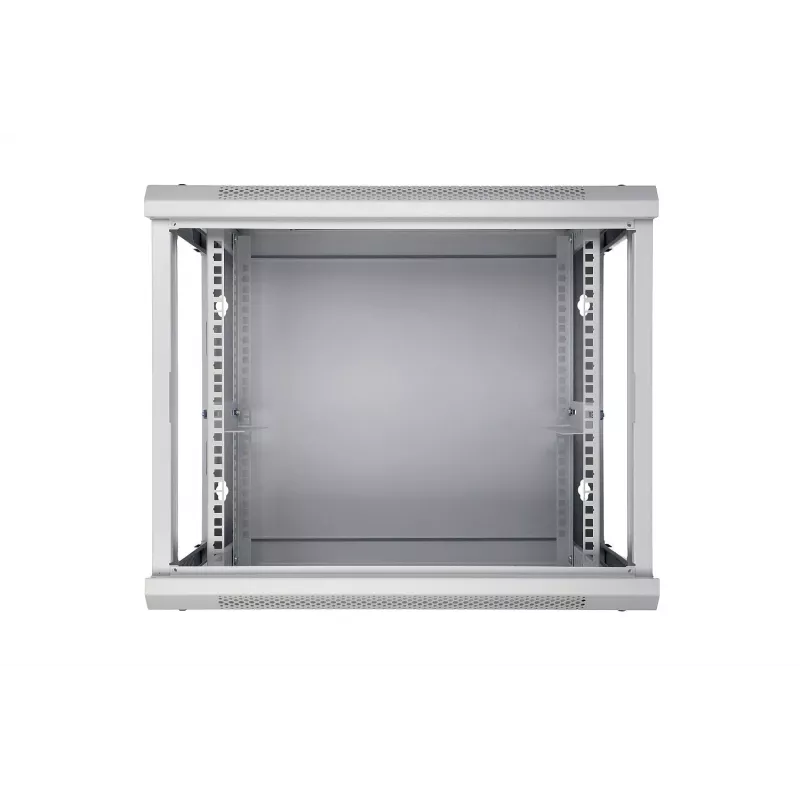

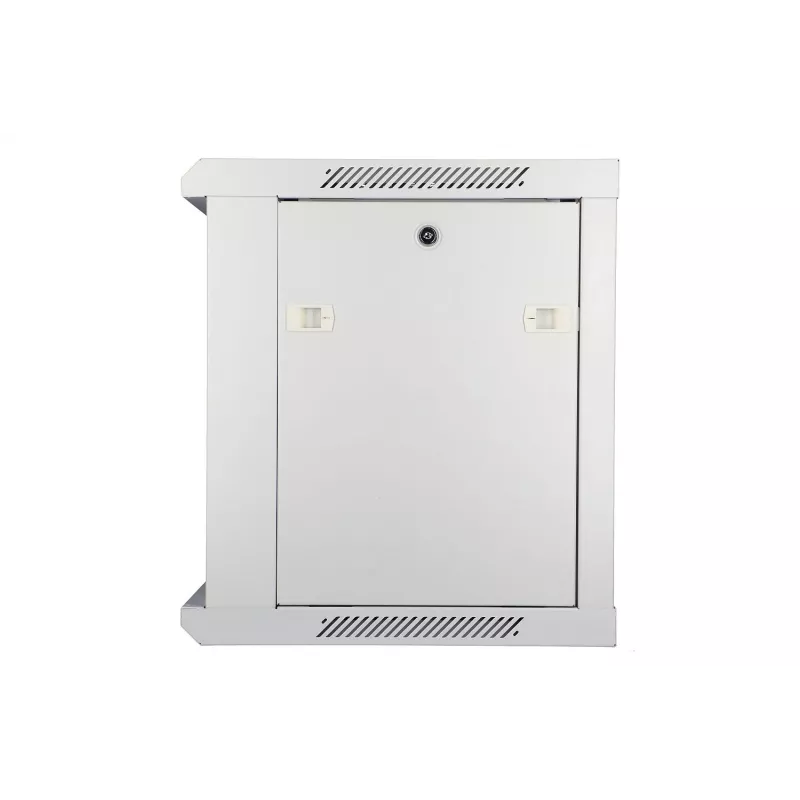

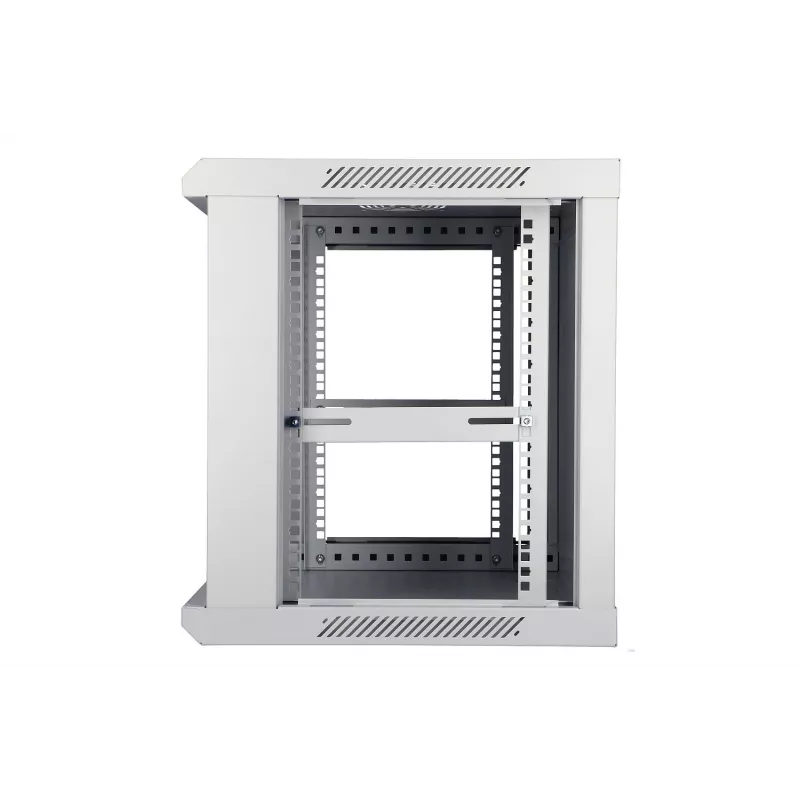

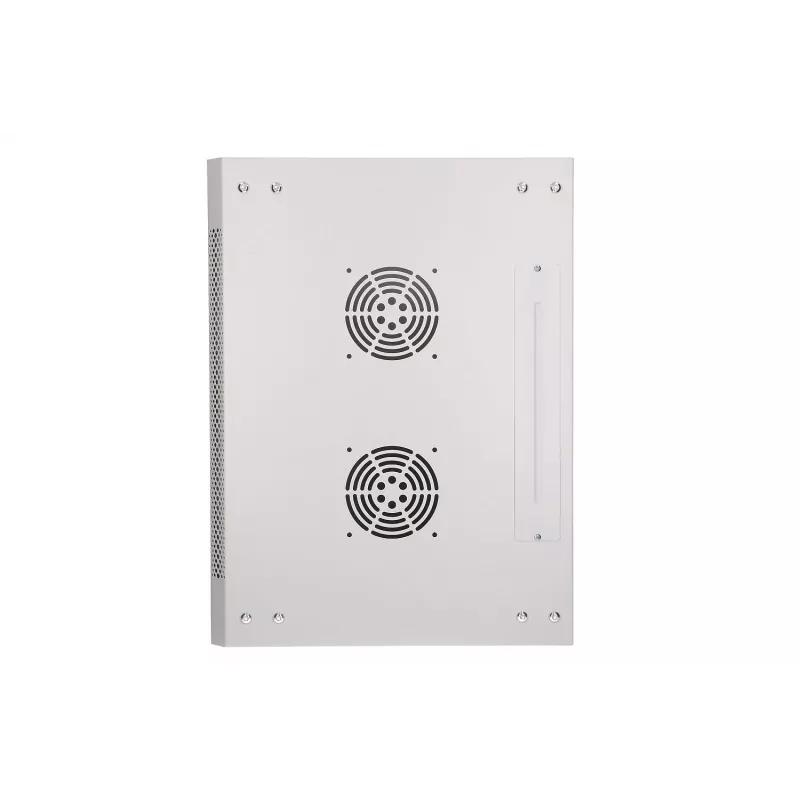

The cabinet features clearly marked vertical rails for easy equipment placement, removable side panels with snap fasteners for quick access, and two predefined ceiling fan mounting points to improve internal airflow. Rack rails and a keyed lock are included, and the cabinet supports a recommended maximum load consistent with compact wall-mounted enclosures.

Suitable for

Key specifications

How to use

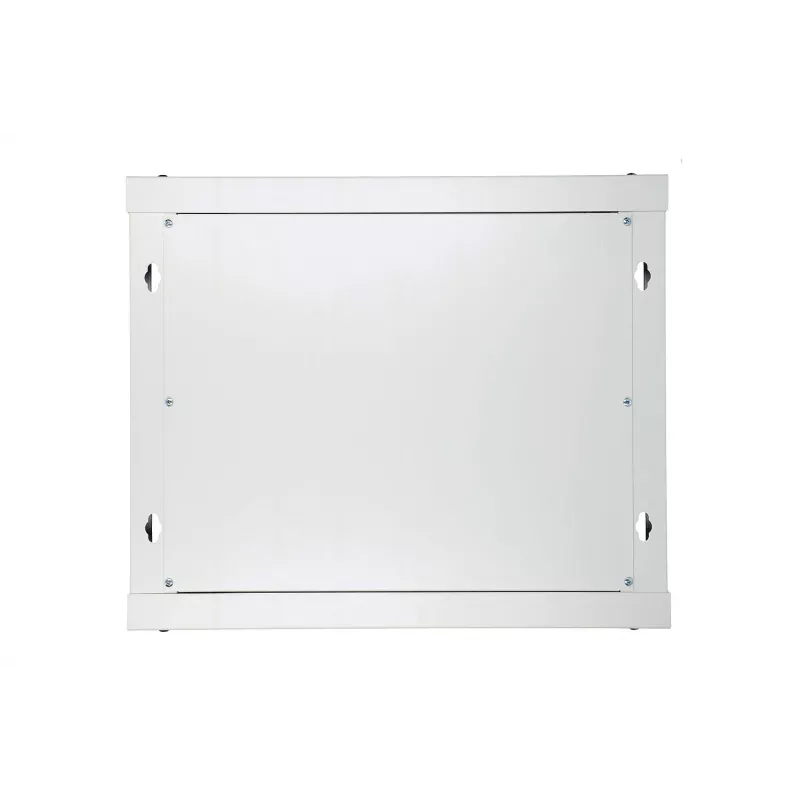

Mount the cabinet securely to a suitable wall using appropriate fixings for the wall material and the cabinet load. Install equipment on the vertically marked rails, using standard 19" rack mounting hardware. Side panels can be released via snap fasteners for access during installation and maintenance. If additional cooling is required, fit fans into the two ceiling mounting points and route cables through the provided cable conduits.

Recommendations

Verify wall strength and use correct anchors for the cabinet weight including installed equipment; distribute device weight evenly across the rails and keep ventilation openings clear. If installing power equipment, ensure proper cable management and consider adding fans if equipment generates significant heat.
