Rack de pared Triton RBA-09-AD5-CAX-A1

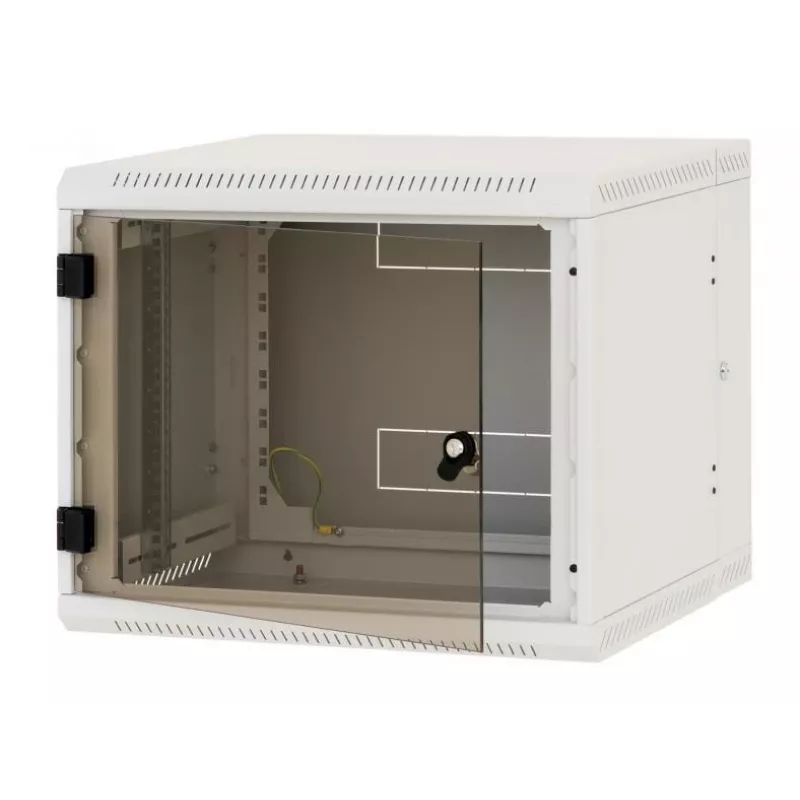

The Triton RBA-09-AD5-CAX-A1 is a grey wall-mounted 19" rack designed for efficient space management in home or office environments. The cabinet height matches standard products and its approximate depth is shown in decimetres; exact dimensions and technical parameters are provided in the product tables. The rack supports installation of 19" components on adjustable vertical rails and includes perforations for natural air circulation to aid cooling.

Advantages

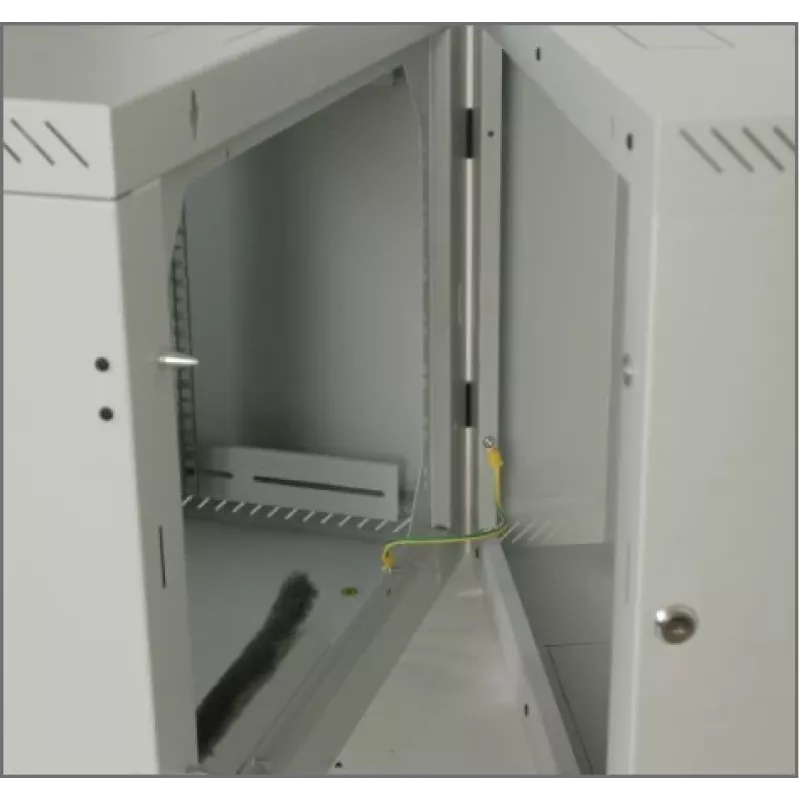

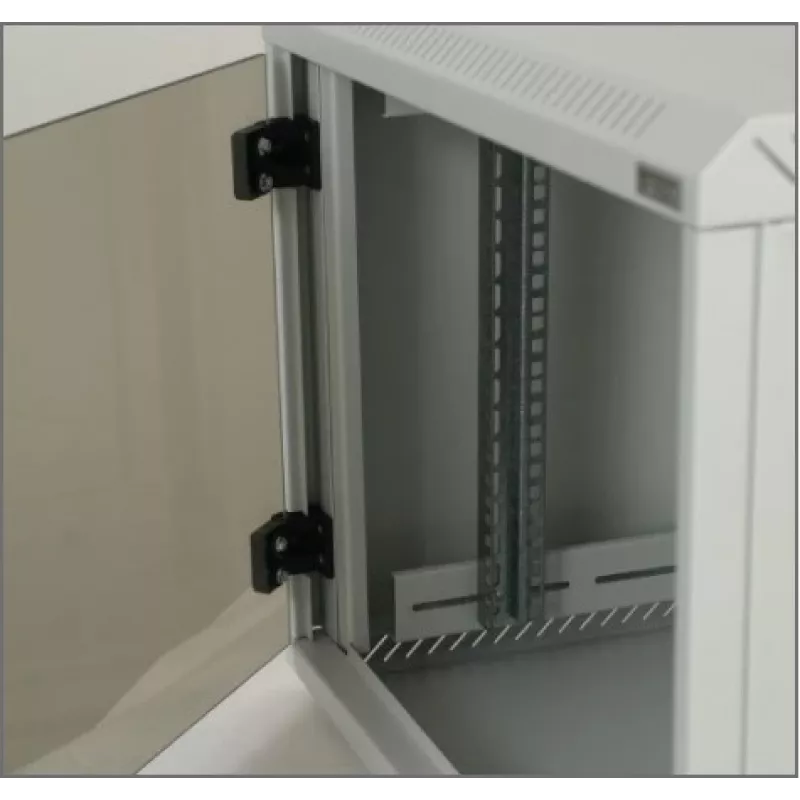

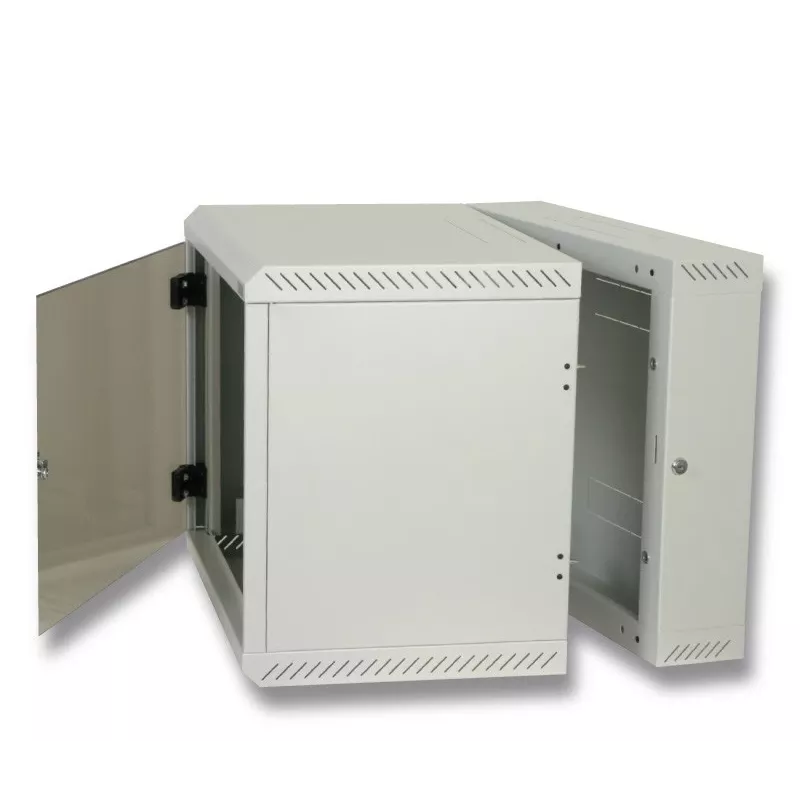

Doors (glass or fully metal) open to 180° using robust hinges, allowing full access to the interior. Cable entries are located on both the top and bottom and are protected with break-out style blanking panels that can be removed with a screwdriver. Vertical rails can be adjusted forward and backward to accommodate component depth variations while maintaining secure mounting for installed equipment.

Suitable for

• Mounting network switches, patch panels and small servers in limited spaces
• Home lab or small office rack installations
• Wall-mounted equipment that requires ventilation and accessible cabling

Key specifications

• Product name: Triton RBA-09-AD5-CAX-A1
• Format: 19" wall mounted rack
• Width: 600 mm
• Depth: 515 mm (approximate values shown in decimetres in drawings)
• Height: 500 mm
• Weight capacity: up to 25 kg
• Product weight: 21.4 kg
• Colour: Grey

How to use

Mount the cabinet securely to a suitable wall surface following the mounting instructions and ensuring the chosen location supports the stated weight. Install 19" equipment on the vertical rails and adjust the rails forward or backward to match device depth. Use the top and bottom cable entry panels by breaking out the required sections to route cables; replace blanking panels where openings are not used to maintain airflow management. Verify that door hinges operate through the full 180° range for unobstructed access.

Recommendations

For reliable operation, distribute equipment weight evenly, allow clearance for air circulation around perforated areas, and avoid exceeding the 25 kg maximum load. Use appropriate fasteners for the wall type and secure cables to prevent strain on connectors.
