Rack de suelo Extralink EX.14442 42U Negro

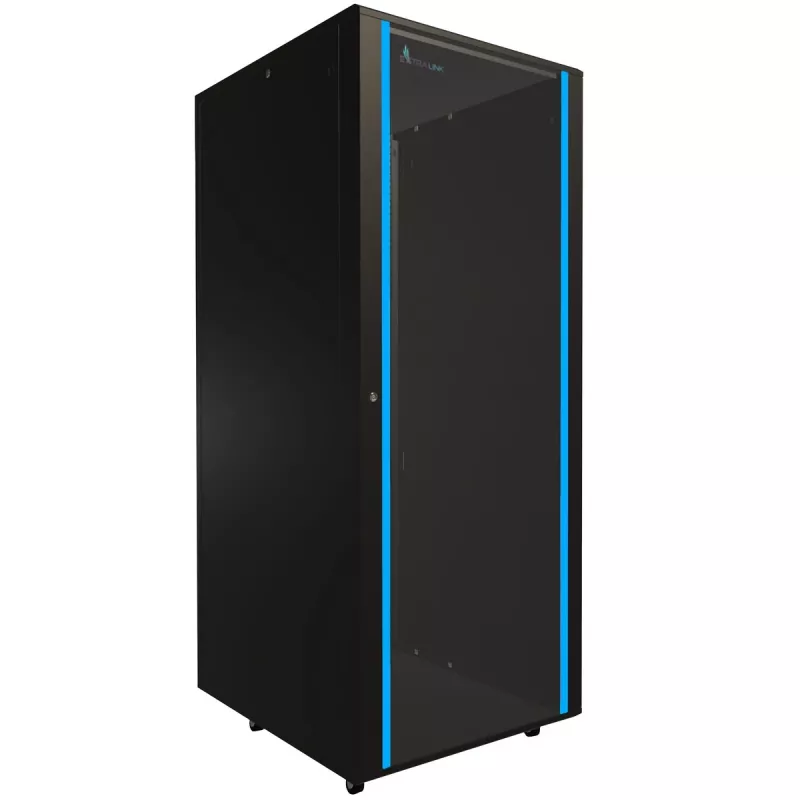

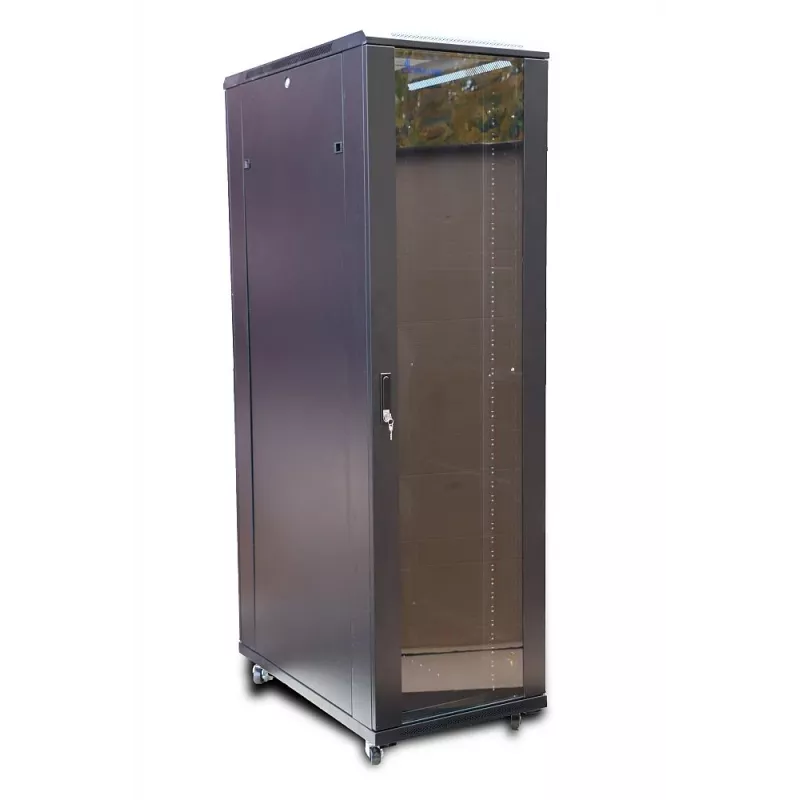

The Extralink 42U freestanding rack cabinet (EX.14442) is designed for offices, network server rooms and CCTV control rooms. Constructed with cold-rolled steel walls and a tempered glass front door that can be hinged to open left or right, the cabinet provides a secure and organized enclosure for network and server equipment. It has a total height of 2000 mm and clearly marked vertical rails up to 42U for easy device placement.

Advantages

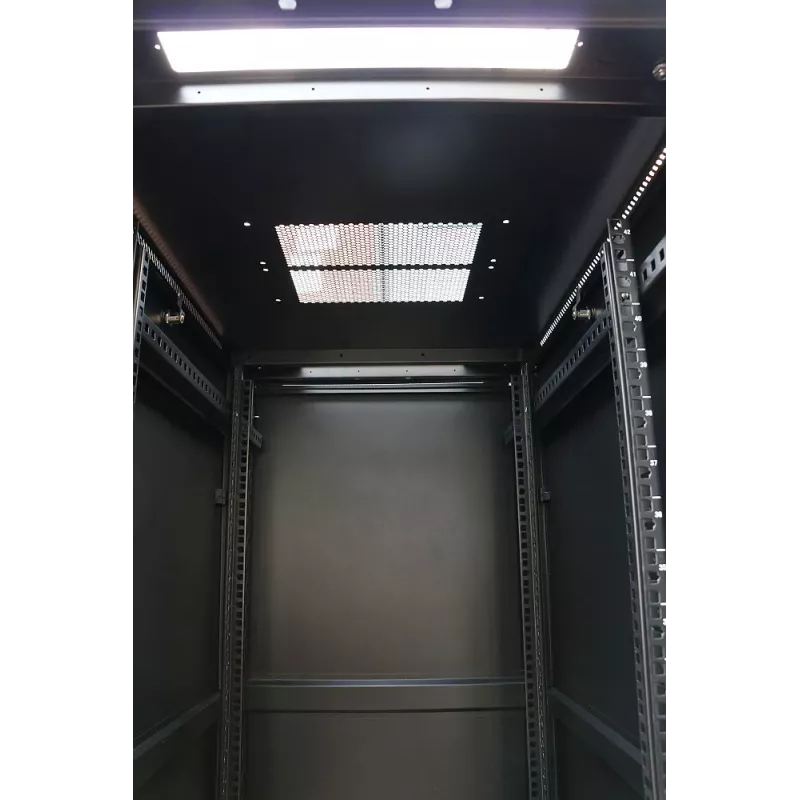

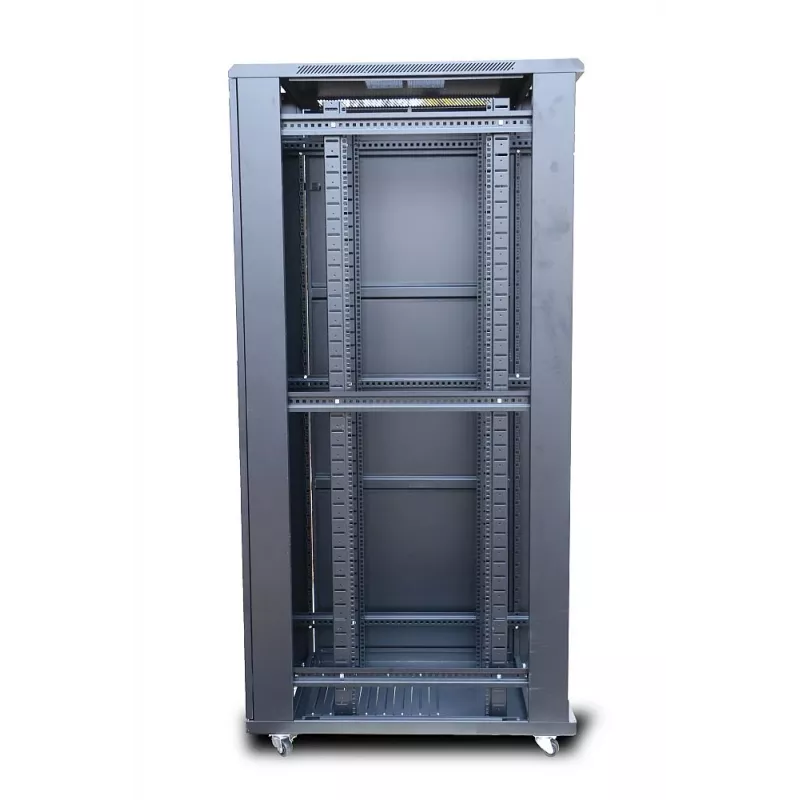

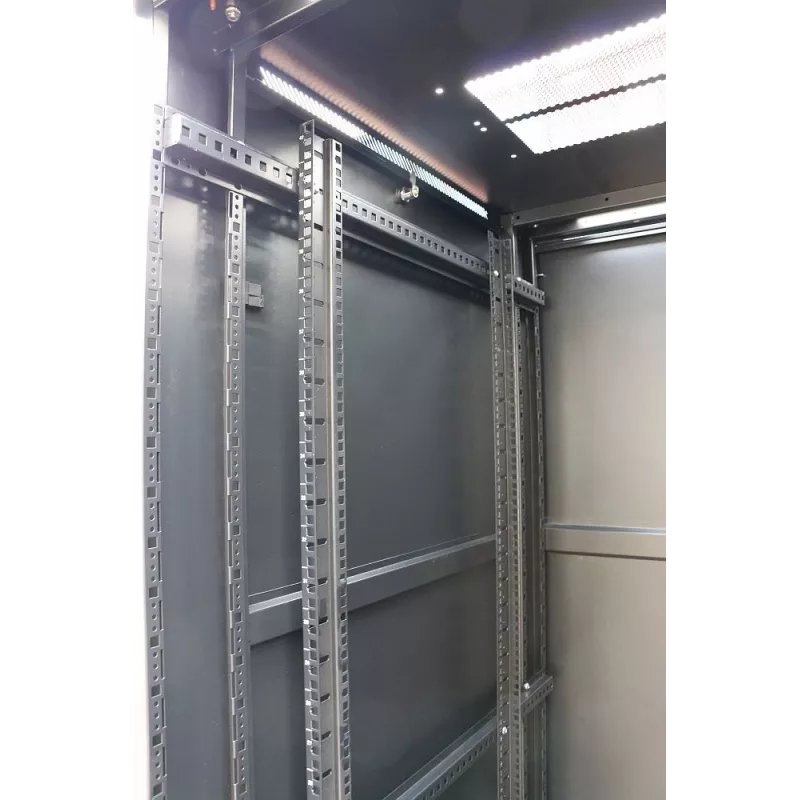

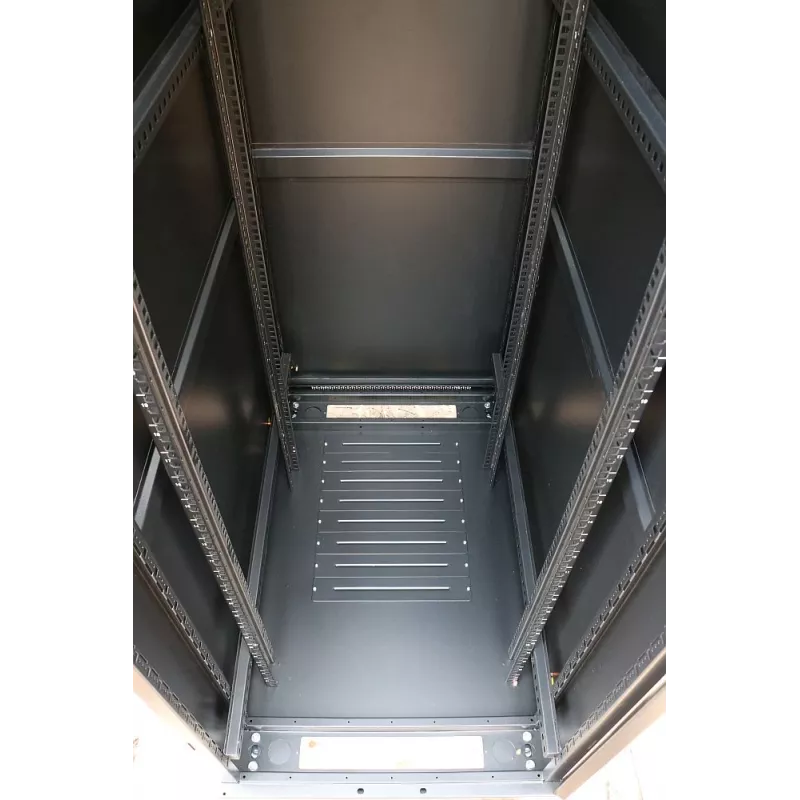

The cabinet offers a durable cold-rolled steel structure combined with a tempered glass front for visibility and protection. Vertical rails are marked to 42U to simplify mounting, while removable side panels with snap fasteners allow quick access for maintenance. The lower panel includes eight cable entry conduits to prevent cable pinch and tangling, and the top panel features a ventilation outlet plus two additional cable ducts. Locks with keys are included for security.

Suitable for

• Server and network equipment installation in data rooms
• CCTV and video surveillance control stations
• Office network closets and telecommunications cabinets
• Environments requiring organized cable routing and secure enclosure

Key specifications

• Rack capacity: 42U
• Height: 2000 mm
• Width: 800 mm
• Depth: 1000 mm
• Colour: Black
• Front door: Tempered glass (left/right opening)
• Material: Cold-rolled steel
• Includes: Locks and keys, vertical rails with markings, removable side panels

How to use

Position the freestanding rack on a level surface and adjust the feet or fit the castor wheels as required for mobility or stability. Mount equipment to the clearly marked 42U vertical rails using standard 19" rack screws and cage nuts where applicable. Route cables through the lower panel conduits or the top cable ducts to maintain tidy cabling and reduce strain. Use the removable side panels for access during installation or maintenance and lock the front door when secure operation is required.

Recommendations

For optimal performance and safety, distribute equipment weight evenly and do not exceed the rack's rated capacity. Ensure proper ventilation by using the top ventilation outlet and consider additional airflow or fan units for high-density or heat-generating installations.
