Armario independiente Extralink Rackmount cabinet 37U 600x800 Negro

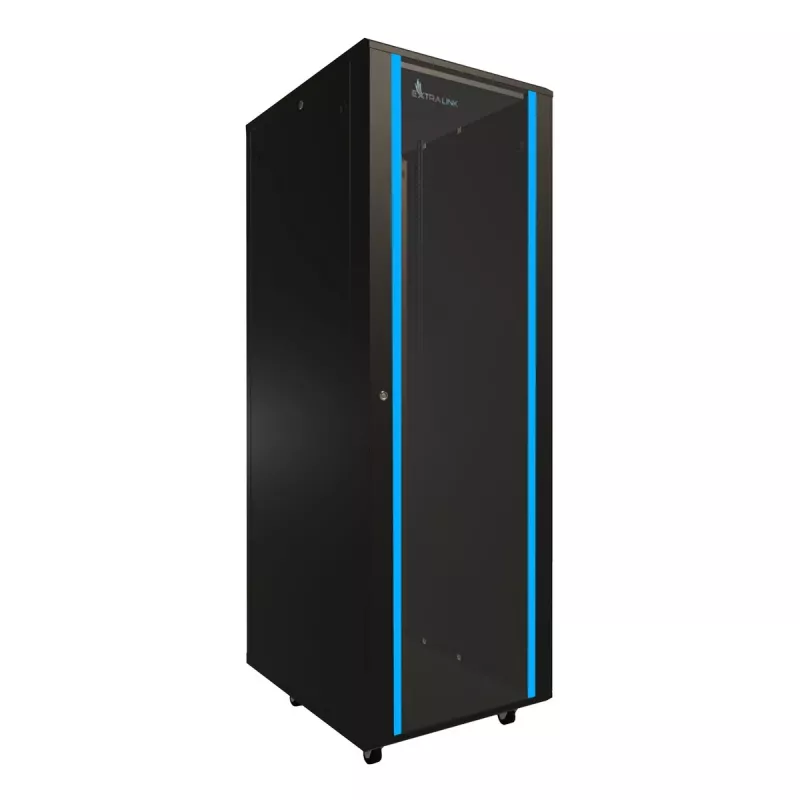

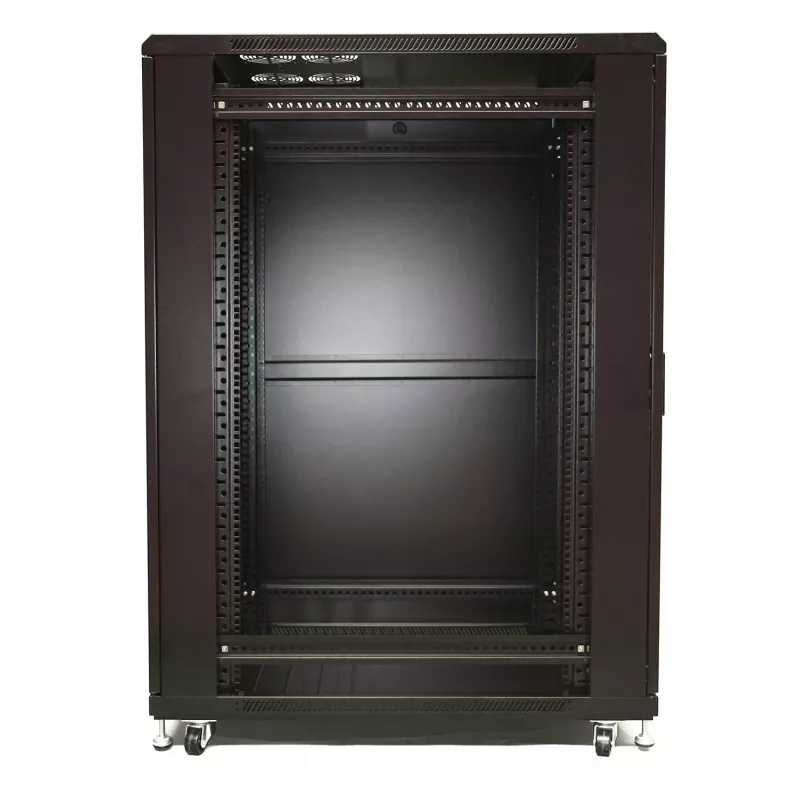

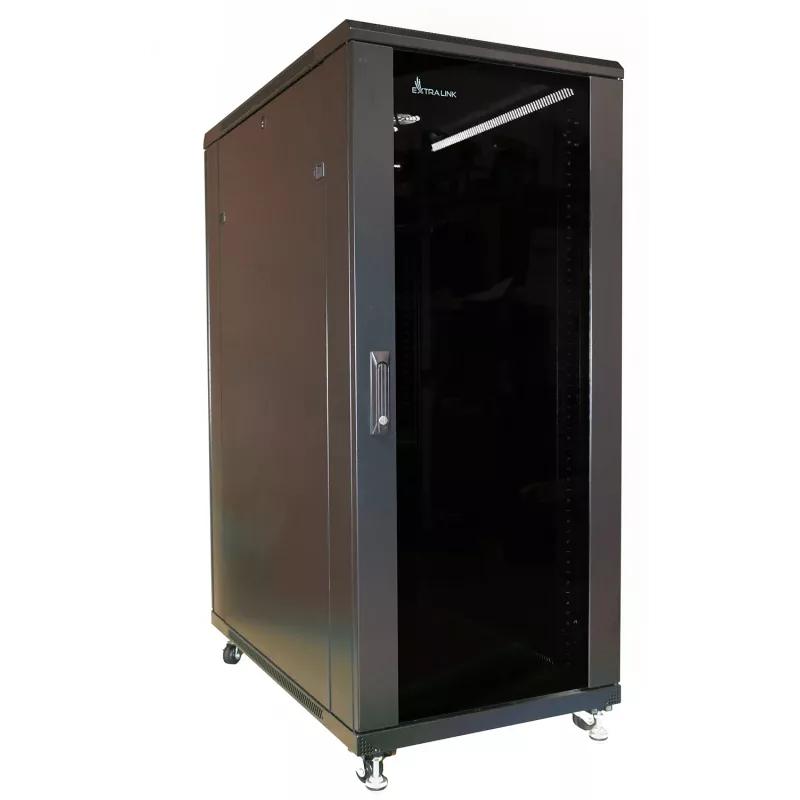

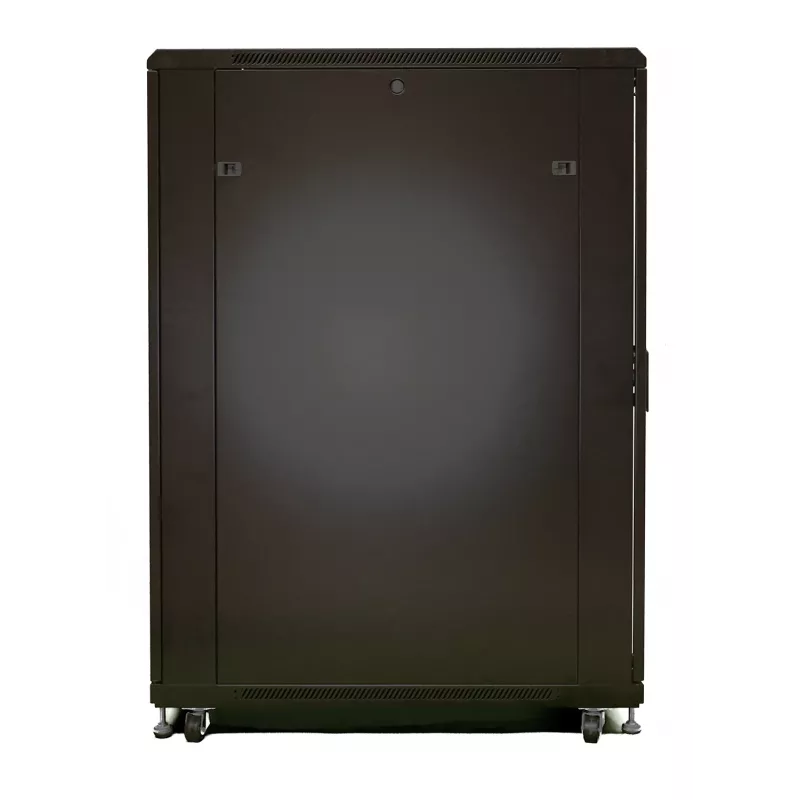

The Extralink Rackmount cabinet 37U 600x800 Black is a freestanding network cabinet engineered for secure and organised storage of IT, networking and CCTV equipment. Constructed with cold-rolled steel side panels and a tempered glass front door that can open to the left or right, this 37U cabinet provides a total height of 1765 mm and a compact footprint of 600 x 800 mm. It includes adjustable feet for stable placement, castor wheels for repositioning, vertical rails with 37U height markings for straightforward mounting, and an integrated key lock for controlled access.

Advantages

The cabinet combines robust metal construction with a glazed front door to balance physical protection and visual access to installed devices. Its 600 kg maximum load capacity supports a wide range of servers, switches and recording equipment, while adjustable feet and included castors allow both permanent installation and temporary mobility. Built-in cable entry points, removable side panels and marked rails simplify installation and maintenance tasks.

Suitable for

• Office network equipment and server consolidation
• Small to medium data rooms or server closets
• CCTV control rooms and video recorder storage
• Telecom or network distribution points

Key specifications

• Rack capacity: 37U
• Total height: 1765 mm
• Width: 600 mm
• Depth: 800 mm
• Load capacity: up to 600 kg
• Material: cold-rolled steel side panels; tempered glass front door

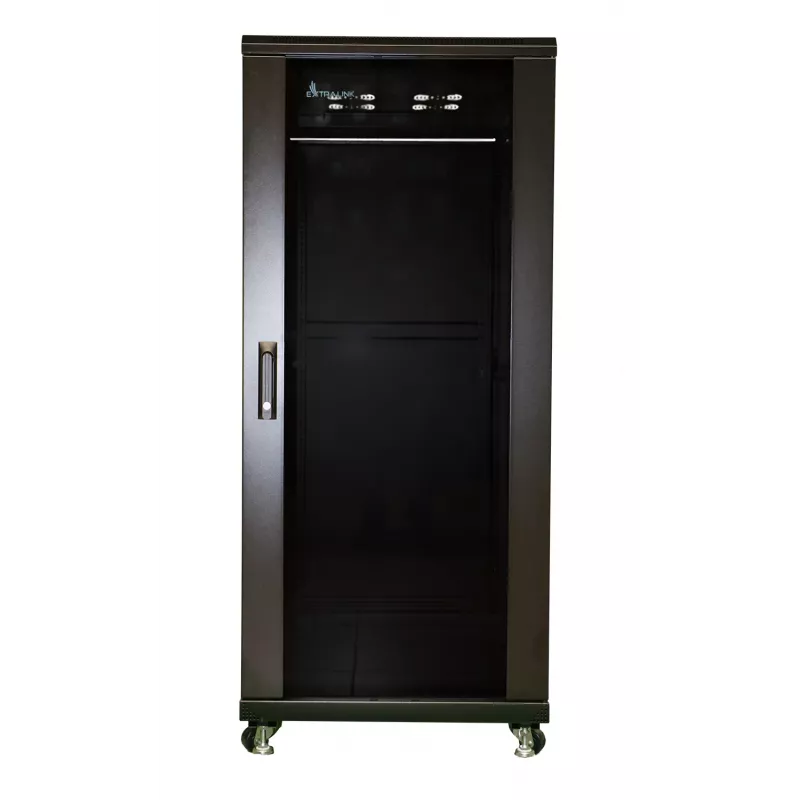

• Front door: tempered glass, reversible opening (left/right)
• Feet: adjustable for leveling
• Mobility: castor wheels included

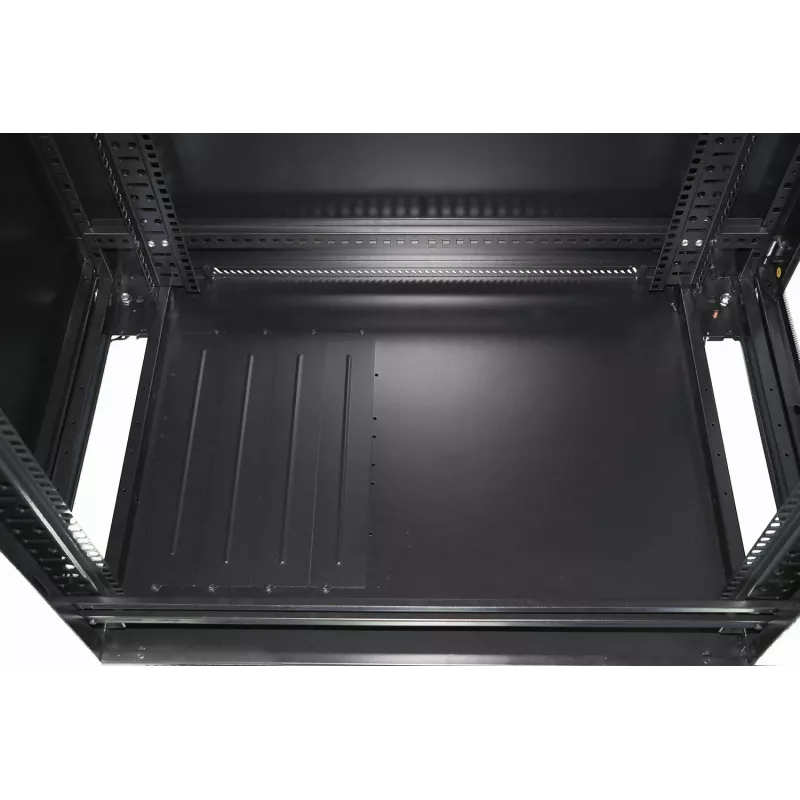

• Cable management: four lower cable entry ports and top conduit

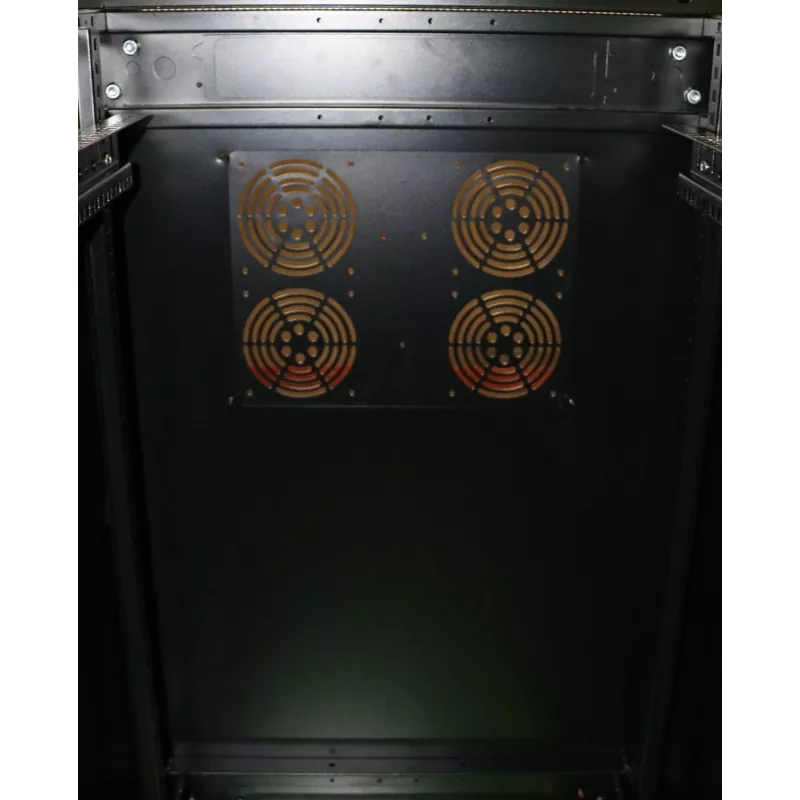

• Ventilation: four ceiling cutouts for fan installation
• Security: key lock provided

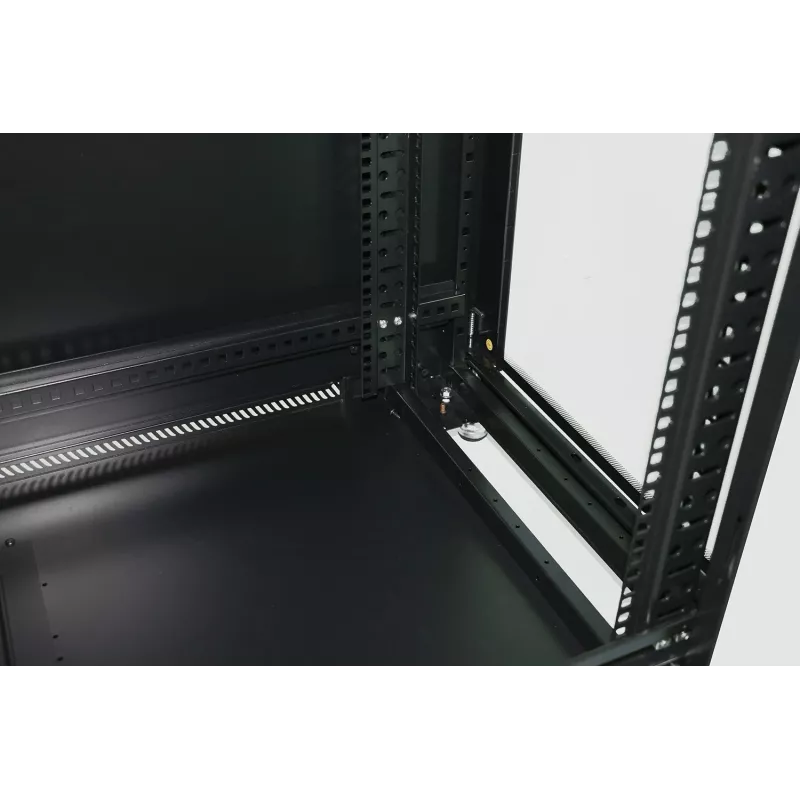

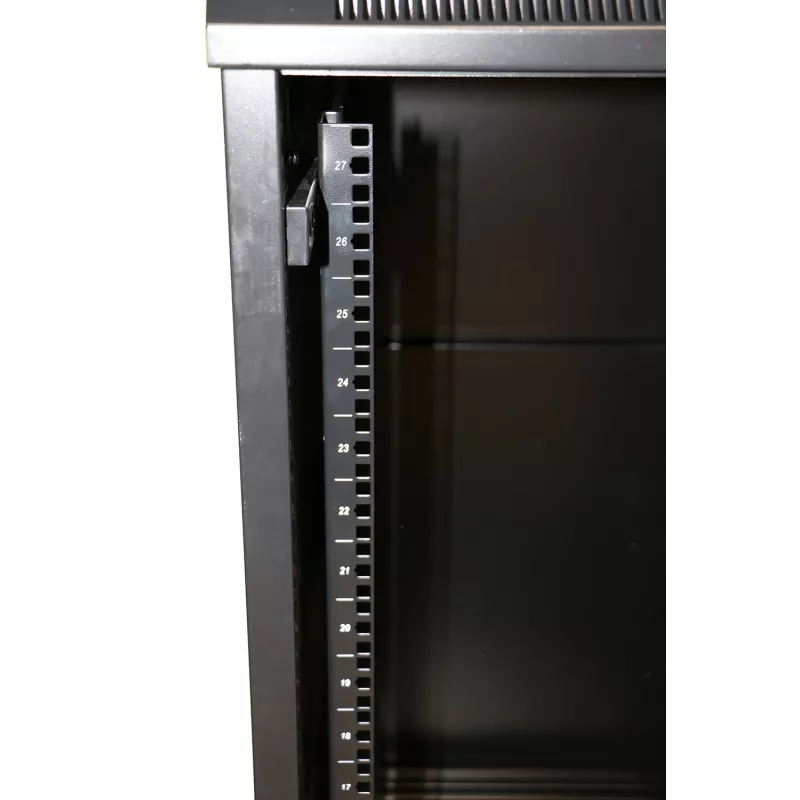

• Rail type: vertical 19" rails with unit markings
• Colour: black

How to use

Place the cabinet in the chosen location and adjust the feet to level it. If temporary mobility is required, fit the castor wheels before moving and then replace with feet or lock wheels for stability. Remove or open the side panels using the snap fasteners to access the interior for rail adjustments and cable routing. Mount equipment on the marked 19" vertical rails, securing devices with appropriate rack screws. Use the lower cable entry ports and top conduit to route power and network cables, and install up to four fans in the ceiling cutouts if additional airflow is needed. Close the tempered glass door and lock it with the supplied key to restrict access.

Recommendations

Distribute load evenly and keep heavier devices toward the bottom to maintain stability. Use the provided cable entry points and allow space for airflow; install fans in the ceiling cutouts if heat buildup is expected. Regularly check and tighten rail fasteners and ensure the door lock is used when physical security is required.
