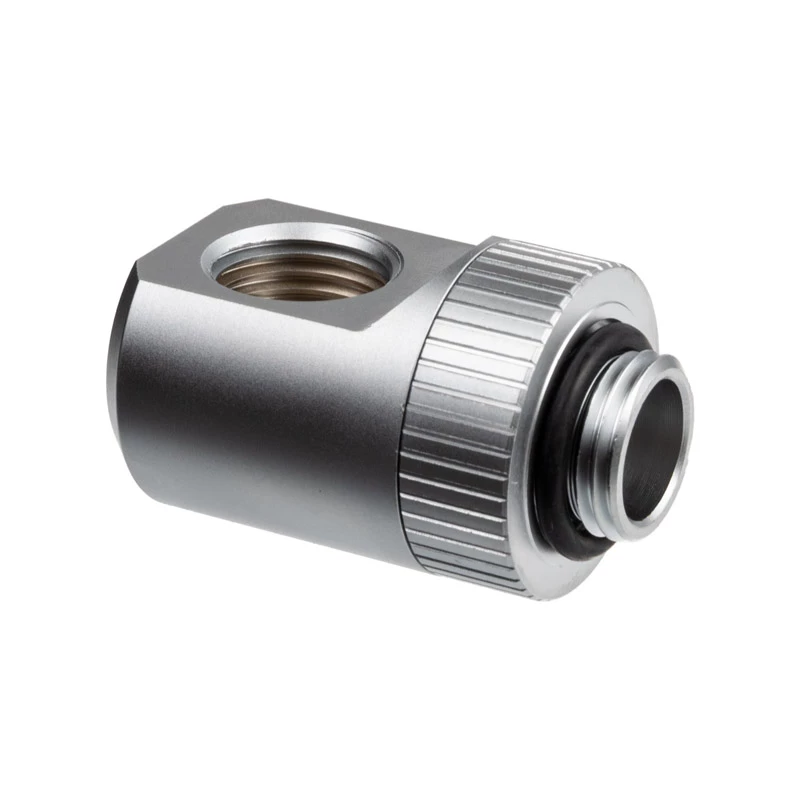

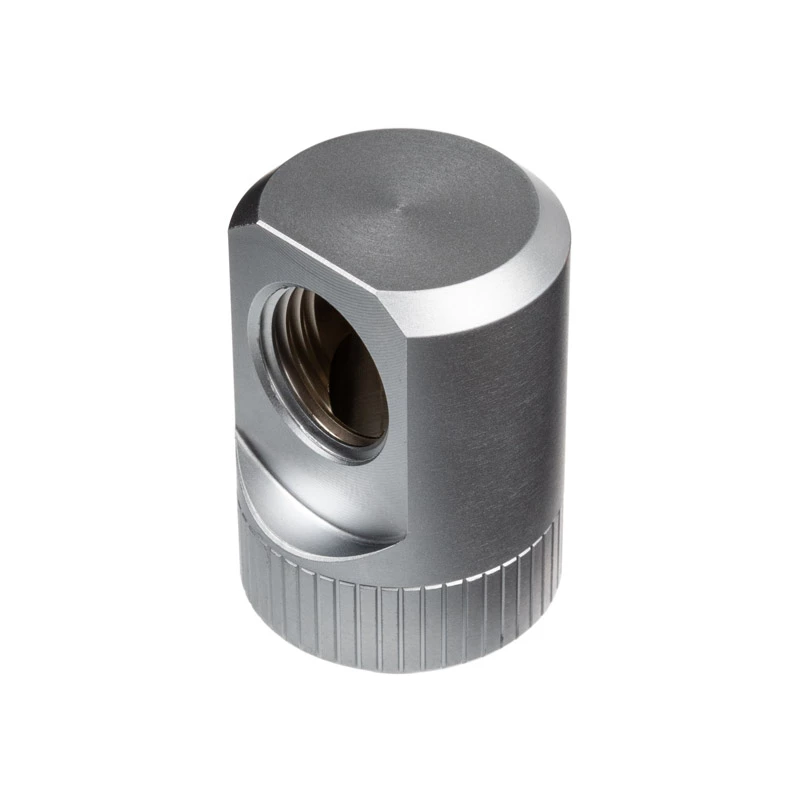

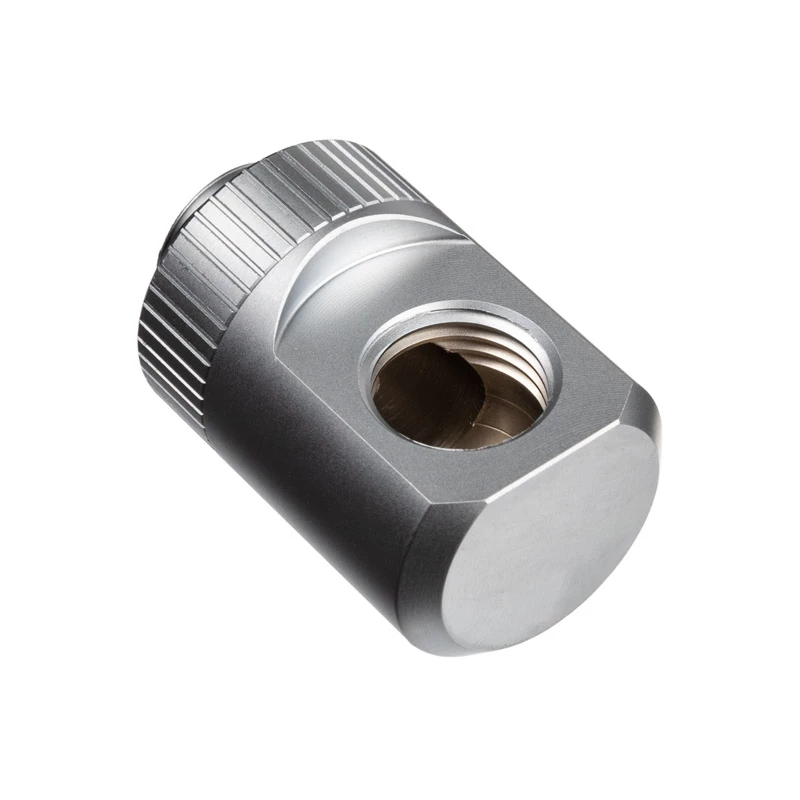

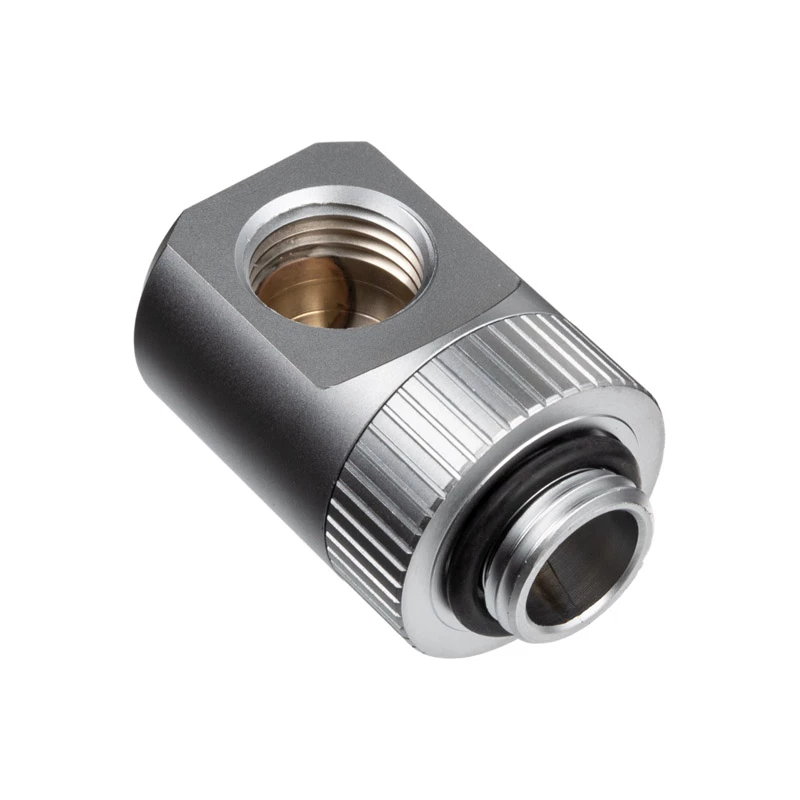

Racor EK Water Blocks EK-Quantum Torque Rotary 90°

EK-Quantum Torque Rotary 90° is a revolvable angled adapter fitting with G1/4" threads, designed for water cooling systems. Machined from brass and finished in satin titanium, the cylindrical fitting provides a secure 90° connection with minimal play in the rotating joint. The seal is ensured by rubber O-rings, and the interior is intentionally left unpainted to reduce potential contaminants in the loop. Dimensions: height 31.5 mm, diameter 23 mm.

Advantages

The fitting offers a sturdy CNC-machined brass construction with a satin titanium external finish, a revolvable 90° joint with no detectable movement, and reliable rubber O-ring sealing. Its uncoated interior reduces risk of loop contamination, while the compact cylinder shape provides durable, long-lasting performance suitable for multiple builds.

Suitable for

• Routing tubing in tight or compact PC water-cooling builds
• Creating 90° turns where fixed-angle fittings are impractical
• Extending connection options between G1/4" threaded components

Key specifications

• Thread: G1/4"
• Material: CNC-machined brass (external satin titanium finish)
• Seal: rubber O-rings
• Height: 31.5 mm
• Diameter: 23 mm
• Orientation: revolvable 90° adapter
• MPN / EAN: 3831109823903

How to use

Install the EK-Quantum Torque Rotary 90° by screwing its G1/4" threads into a compatible port or fitting. Ensure O-rings are seated correctly and hand-tighten before final tightening with an appropriate tool to avoid overtightening. Rotate the fitting to the desired angle to align tubing, then secure connected tubing or compression fittings according to their instructions. Verify leak-tightness after assembly before powering the system.

Recommendations

Use compatible G1/4" components and check O-rings periodically for wear. Avoid applying excessive force when tightening to preserve threads and seals; perform a full leak test after installation.
