Racor EK Water Blocks negro rosca de 1/4 de pulgada 14 mm de altura

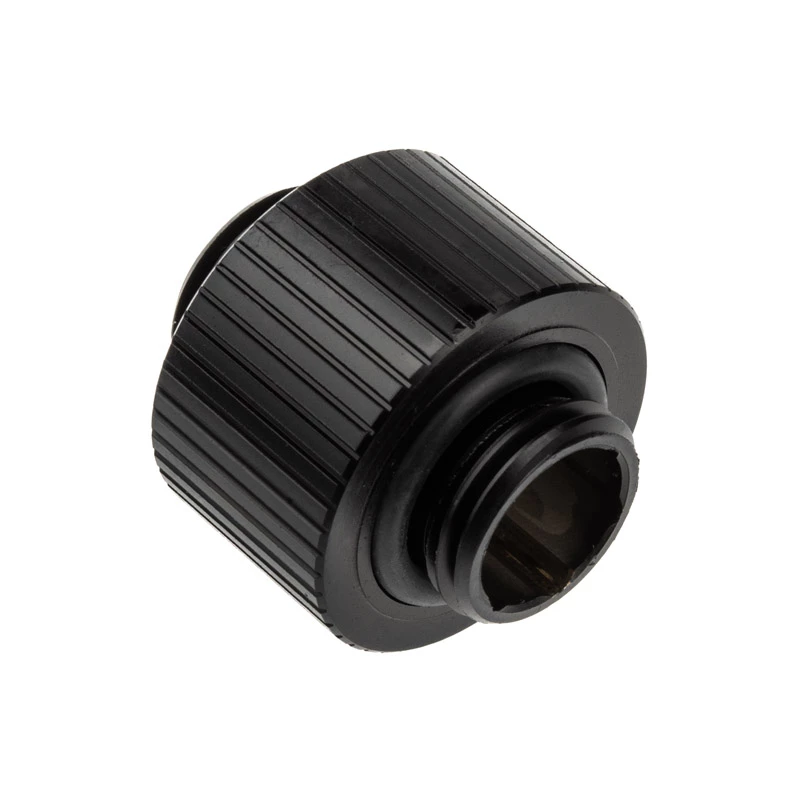

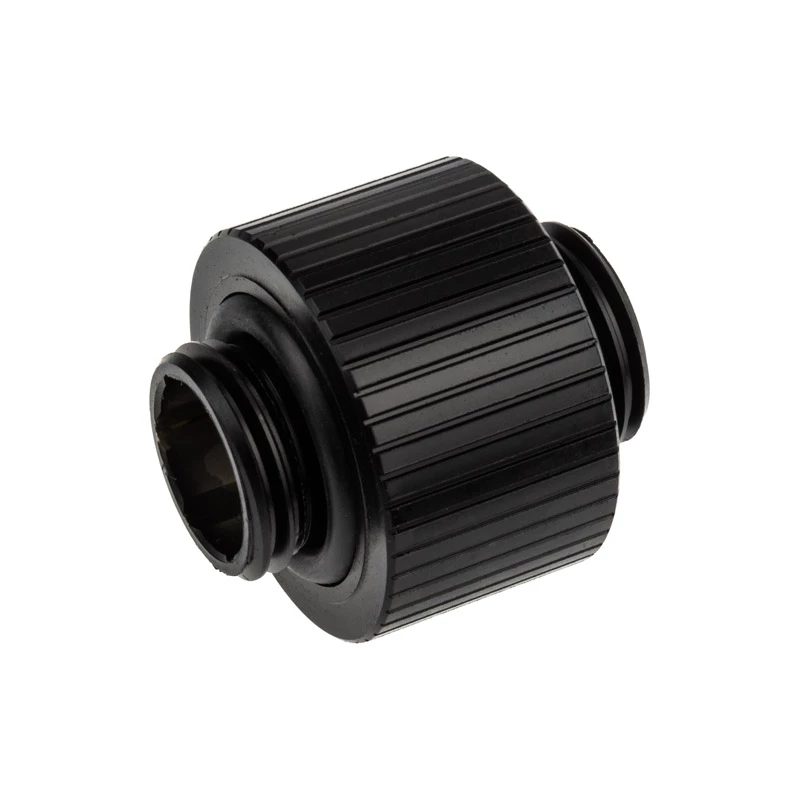

EK-Quantum Torque Extender Static MM 14 is a male-threaded extender with male G1/4 threads on both ends, designed to connect two water-cooling components that each have female G1/4 ports. The extender has a fixed (non-revolvable) design, a height of 14 mm and a black finish suitable for computer liquid-cooling loops.

Advantages

The extender provides a secure, threaded connection between two components without the need for adapters, preserving flow integrity in the cooling loop. Its compact 14 mm height and standardized G1/4 thread make it compatible with most water-cooling fittings and blocks. The fixed construction ensures a stable connection that resists rotation under pressure.

Suitable for

• Connecting two female G1/4 water-cooling ports
• Extending fittings in custom PC liquid-cooling loops
• Use where a short, rigid threaded spacer is required

Key specifications

• Brand: ek water blocks
• Model / MPN: 3831109825570
• Thread type: G1/4 (male on both ends)
• Height: 14 mm
• Diameter: 23 mm (approx.)
• Finish: Black
• Revolvable: No (static)

How to use

Align the male threads of the extender with the female G1/4 ports on the two components to be joined. Carefully screw the extender into each port by hand until snug, then tighten an additional small fraction of a turn with an appropriate tool if necessary. Do not over-tighten to avoid damaging threads or seals. Verify the connection for leaks after filling the loop and run a pressure or leak test before full operation.

Recommendations

Use compatible G1/4 threaded fittings and appropriate thread sealant or O-rings as required by your components. Avoid high torque during installation and perform a leak test after assembly to ensure a secure, leak-free connection.
