RAINPOINT 1 Válvula de riego electrónica AC de 1 pulgada

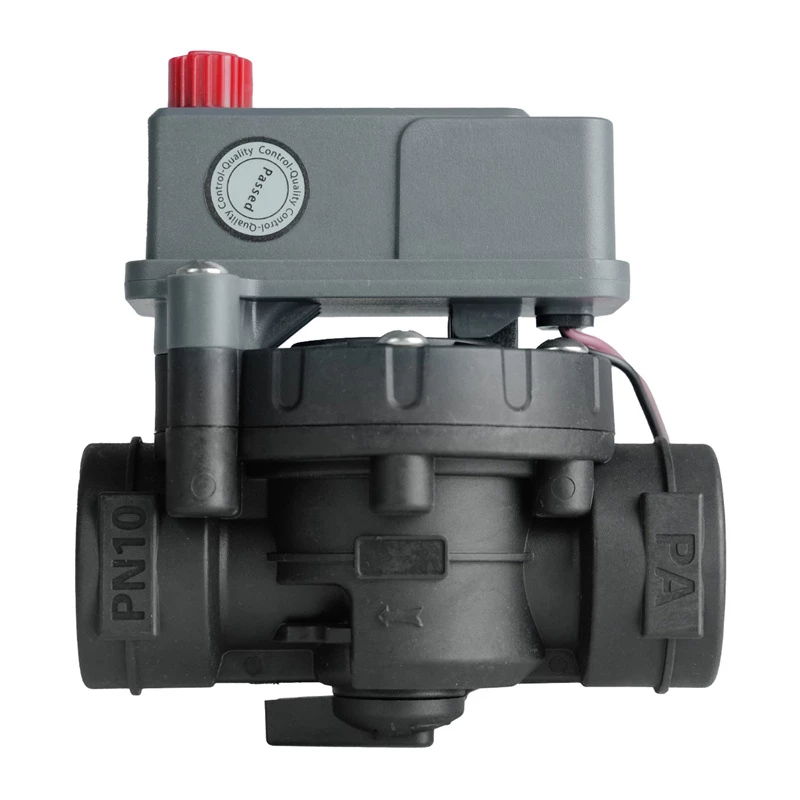

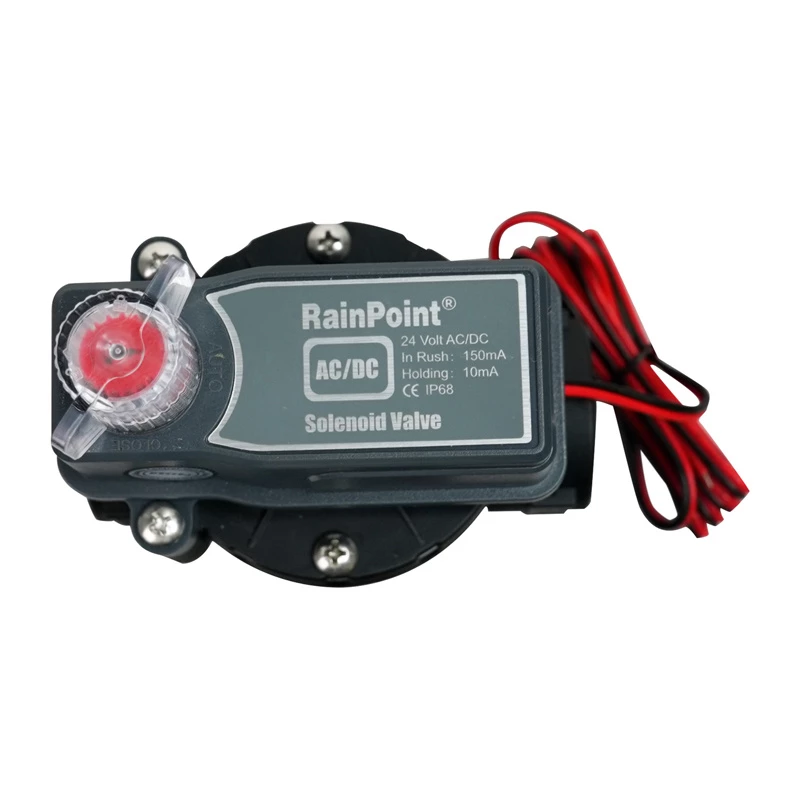

The RainPoint 1” AC/DC Electronic Irrigation Valve provides precise water flow control for irrigation systems. It operates on 24 V AC/DC with a 250 mA inrush current and 15 mA holding current, and features a 1” BSP connection for integration with standard installations.

Key features

• Operates on 24 V AC/DC for flexibility in controller selection
• 1” BSP connection for easy integration with popular irrigation systems
• IP68-rated design for high resistance to moisture and water contact
• Wide operating pressure range of 0.2–10 bar
• Operating temperature up to 60°C

Specifications

• Brand: RainPoint
• Model: BIV025ESC-AC
• Connection diameter: 1”
• Operating voltage: 24 V AC/DC
• Inrush current: 250 mA
• Standby current: 15 mA
• Operating pressure: 0.2–10 bar
• Operating temperature: up to 60°C
• Protection rating: IP68
