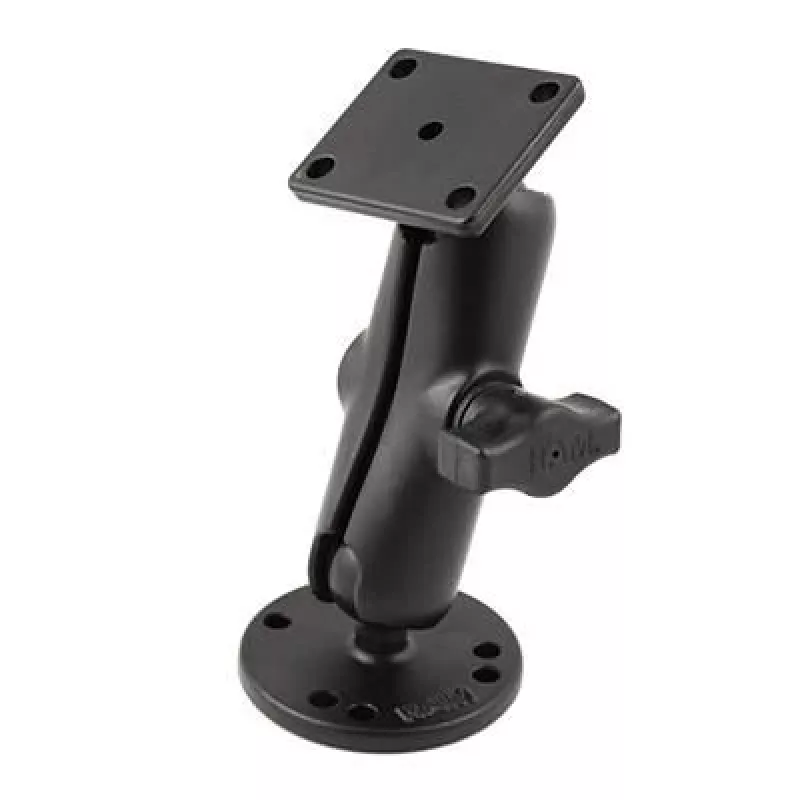

Soporte de doble rótula con placa rectangular AMPS RAM Mount — rótulas de 2,54 cm, aluminio, negro

RAM Mount double ball mount with a rectangle AMPS plate provides a compact, adjustable interface for attaching electronics and accessories. The unit features two 2.54 cm (1") aluminium balls and a rectangular AMPS plate, finished in black. It is intended for secure, adjustable positioning of devices such as GPS units, radios, tablets or other instruments in vehicles, boats and industrial environments.

Advantages

The aluminium construction combines light weight with corrosion resistance for long service life in mixed environments. The dual 2.54 cm balls and patented rubber ball-and-socket system offer a wide range of tilt and rotation for precise positioning. The rectangular AMPS plate provides a standardized mounting interface for many housings and adapters, simplifying installation and interchangeability.

Suitable for

• Mounting GPS devices and navigation instruments
• Securing communication radios and handheld units
• Attaching small tablets, displays or control modules with AMPS-compatible plates
• Use in vehicles, marine vessels and industrial workstations

Key specifications

• Ball diameter: 2.54 cm (1") — two balls
• Material: aluminium
• Finish: black
• Mounting interface: rectangular AMPS plate (universal AMPS hole pattern)
• Weight: 0.2495 kg

How to use

Attach the rectangular AMPS plate to the device or housing using the AMPS hole pattern. Secure the mount to a compatible RAM arm or base by clamping the 2.54 cm balls into the corresponding sockets. Adjust the ball-and-socket joints to achieve the desired angle and tighten the socket clamps to lock the position. Verify that all fasteners are secure before placing the device into service.

Recommendations

For reliable performance, use hardware of appropriate grade for the installation surface and environment. Periodically check socket tightness and fasteners, especially in high-vibration or marine conditions. Avoid over-torquing clamping knobs to prevent thread wear; follow manufacturer torque guidance where available.
