Receptor AV Kramer Electronics PT-572+

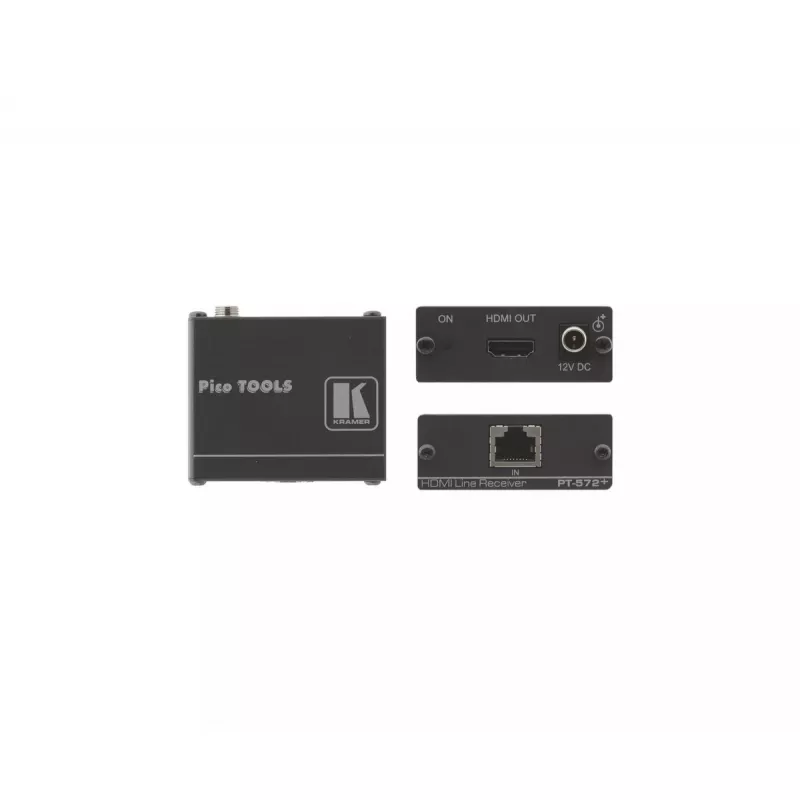

The AV receiver Kramer Electronics PT-572+ is a compact DGKat™ twisted-pair receiver that restores HDMI signals converted by a compatible transmitter. It supports HDMI 1.4 features including 3D, Deep Color, x.v.Color™, uncompressed audio channels, Dolby TrueHD and DTS‑HD, and provides transmission bandwidth up to 1.65 Gbps. The unit is small and lightweight for flexible installation in professional and residential AV systems.

Advantages

The PT-572+ offers DGKat™ signal integration for transmitting TMDS, control and communication over shielded twisted-pair cable, EDID pass-through between source and display, and a Status LED that indicates power and link conditions. It supports 3D pass-through, is HDCP compliant and can be powered through a paired transmitter or receiver using the Power Connect™ system when devices are within 90 m (295 ft). The ultra-compact Pico TOOLS™ form factor allows four units to be rack-mounted side-by-side in 1U with an optional adapter.

Suitable for

• Extending HDMI video and audio over shielded twisted-pair cable in AV installations
• Home theater systems requiring 1080p/1080i distribution with HDCP and 3D support
• Professional AV setups where compact receivers and rack mounting are needed

Key specifications

• Max data rate: 1.65 Gbps
• HDMI version: 1.4 (3D, Deep Color, x.v.Color™, uncompressed audio, Dolby TrueHD, DTS‑HD)
• System range (on Kramer shielded cables): up to 90 m at 1080i; up to 30–90 m at 1080p depending on cable (see product data)
• Cable requirement: Shielded Twisted Pair (STP); recommended Kramer BC-DGKat524, BC-DGKat623, BC-DGKat7a23
• EDID pass-through: Yes
• Status LED: Indicates power and input/output link (red/orange/yellow)
• Power Connect™: Allows single-end powering when within 90 m (295 ft)
• Dimensions and weight (manufacturer data): 62 x 52 x 24 mm; 140 g
• Compliance: HDTV compatible, HDCP compliant

How to use

Connect the PT-572+ to the receiver end of a DGKat™ twisted-pair link that was created by a compatible transmitter (for example the PT-571). Use shielded twisted-pair cable with both shield ends grounded; Kramer recommends BC-DGKat524, BC-DGKat623 or BC-DGKat7a23 for optimum range. Attach the HDMI output from the PT-572+ to the display and the transmitter to the source. If the transmitter or receiver provides Power Connect™ within 90 m, a single power connection will power both units. Check the Status LED to verify power and link status.

Recommendations

For reliable performance and maximum range, use Kramer shielded DGKat™ cables and ensure both ends of the cable shield are properly soldered to ground. Note that achievable distance depends on resolution, graphics source and display; non-Kramer CAT5/6/7 cables may not reach the specified ranges.
