Reely Polyacetal Engranaje cónico módulo 1.0, 30 dientes, relación 1:1, 1 par (KH103030-1:1HF)

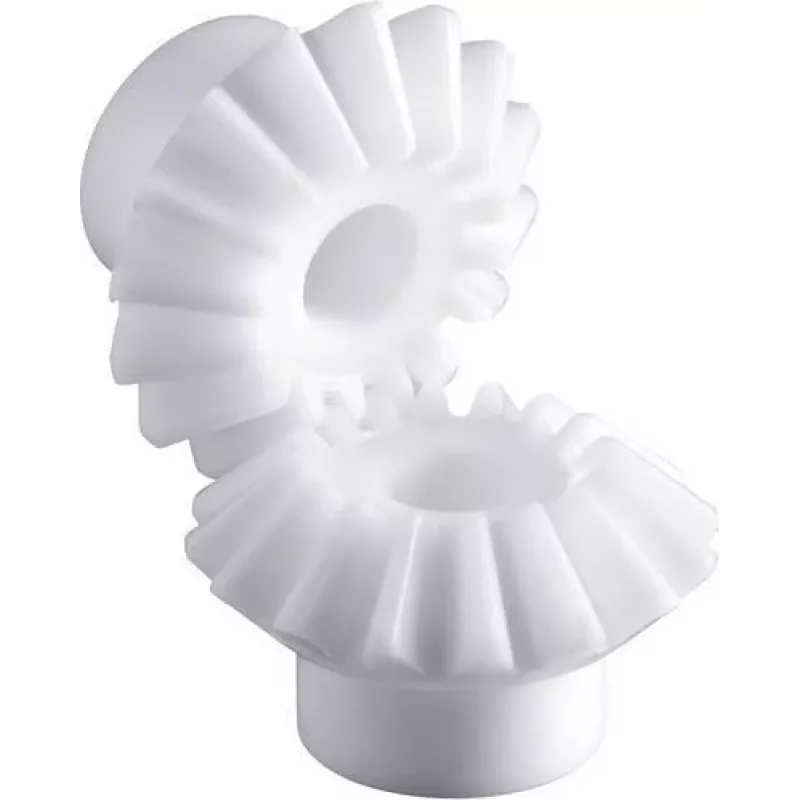

This bevel gear set from Reely offers a reliable 1:1 transmission for model building and light mechanical drives. The gears are made of polyacetal (POM), known for high wear resistance and low friction, ensuring smooth and quiet operation.

Advantages

The polyacetal material provides excellent dimensional stability and operates within a wide temperature range from -40°C to +100°C. Its low-friction properties reduce energy loss and noise, making it ideal for precision applications.

Suitable for

• Model building
• Robotics
• Light mechanical drives

Key specifications

• Gear type: Bevel gear, straight profile
• Module: 1.0
• Number of teeth: 30 per gear
• Gear ratio: 1:1
• Material: Polyacetal (POM)
• Pressure angle: 20°
• Quantity: 1 pair (2 gears)

Recommendations

For best results, ensure proper alignment and lubrication suitable for plastic gears. Avoid excessive loads beyond the material's mechanical limits.
