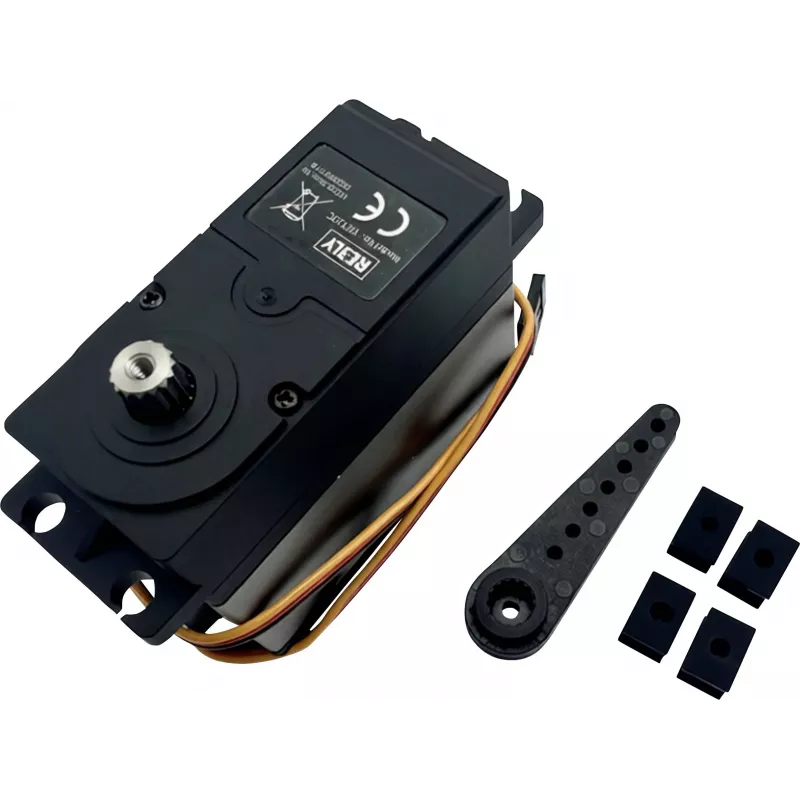

Reely RE-11059002 Servo de dirección de repuesto (RE-11059002)

The Reely RE-11059002 is a dedicated replacement steering servo engineered for 1:10 RC vehicles. Unlike generic servos, it offers a precise 25T output spline compatible with Futaba-style servo horns, ensuring a direct fit for many popular models. Its analog control and bushing-supported output shaft deliver dependable steering response for everyday driving.

Highlights

• Analog servo with PWM control and 5 µs dead band
• Stall torque up to 3.5 kg-cm at 6.0 V
• Operating speed as fast as 0.16 s/60° at 6.0 V
• Plastic gears and housing keep weight low
• JR/Futaba 3-pin connector with ~200 mm cable

In daily use

This servo runs on a standard 4.8–6.0 V receiver supply, making it a drop-in replacement for most 1:10 electric models. The brushed DC motor and plastic gear train are suited for on-road and light off-road use where water resistance is not required. With a 25T spline and common JR/Futaba connector, installation is straightforward.

Full specifications

• Servo type: Analog
• Application: Steering
• Operating voltage: 4.8–6.0 V DC
• Stall torque: 3.0 kg-cm (4.8 V), 3.5 kg-cm (6.0 V)
• Operating speed: 0.18 s/60° (4.8 V), 0.16 s/60° (6.0 V)
• Gear material: Plastic
• Bearing type: Bushing
• Output shaft spline: 25T (Futaba compatible)
• Connector type: JR/Futaba (3-pin)
• Motor type: Brushed DC
• Housing material: Plastic
• Recommended scale: 1:10 RC vehicles
• Control system: PWM
• Dead band width: 5 µs
• Cable length: 200 mm
• Water resistance: No

Final note

A practical replacement for keeping your 1:10 RC vehicle steering sharp, with standard connections and a proven analog design.
