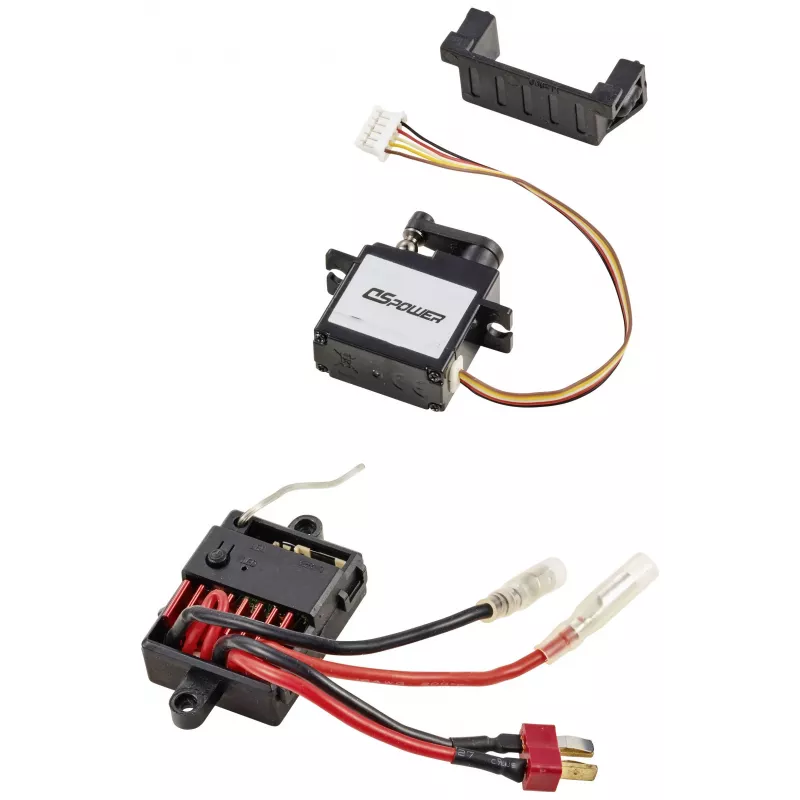

Reely RE-8705337 Set electrónico para Carbon Fighter III (receptor 2,4 GHz, variador de velocidad con escobillas 40A, servo de dirección)

Restore full control of your Reely Carbon Fighter III 1:6 scale RC buggy with this complete electronics set. The original receiver, speed controller, and steering servo are critical for responsive driving, and this set replaces all three with matched components tuned for the vehicle.

Who is it for

Owners of the Reely Carbon Fighter III who need to replace faulty or damaged electronics. It is also useful for hobbyists who want a spare set of core electronics for their RC buggy.

Main features

• 2.4 GHz 3-channel receiver for reliable, interference-free control
• Brushed electronic speed controller (ESC) with 40 A continuous current and 60 A burst
• ESC supports 6-7 cell NiMH (7.2-8.4 V) or 2S LiPo (7.4 V) batteries
• Standard-size steering servo with approximately 6 kg-cm torque at 6 V
• Basic splash protection on receiver and ESC for dusty or damp conditions

Specifications

• Receiver frequency band: 2.4 GHz
• Receiver channels: 3
• ESC type: Brushed
• ESC continuous current: 40 A
• ESC burst current: 60 A
• ESC input voltage: 6-7 cell NiMH (7.2-8.4 V) or 2S LiPo (7.4 V)
• ESC functions: Forward, brake, reverse
• BEC output: 5 V / 1 A
• Servo torque: Approx. 6 kg-cm at 6 V
• Servo gear material: Plastic
• Battery connector: Tamiya plug
• Motor connector: 4 mm bullet connectors

Tips

Before installation, check that your battery and motor connectors match the ESC. The ESC is configured for brushed motors only; do not use with brushless motors.
