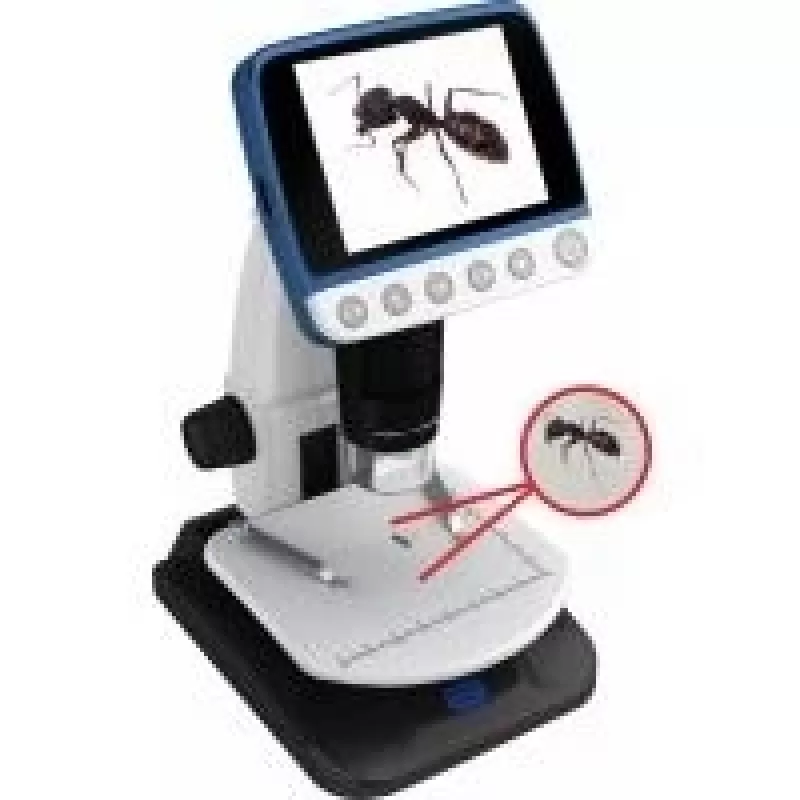

Reflecta DigiMicroscope LCD Professional 500x

The Reflecta DigiMicroscope LCD Professional 500x is a high-performance digital microscope designed for detailed inspection and analysis. Featuring a 3.5-inch TFT LCD display and a 5 MP CMOS sensor, it delivers clear and magnified images from 20x to 500x digital zoom. Ideal for professionals in electronics, jewelry, biology, and education, this microscope combines portability with advanced features such as adjustable LED illumination, video recording, and PC software for measurement and calibration.

Advantages

With its built-in LCD screen, the Reflecta DigiMicroscope eliminates the need for a computer during basic observations, offering standalone operation. The rechargeable battery provides up to 2.5 hours of use, making it perfect for fieldwork. The included professional metal stand ensures stability, while the 8 white LEDs with adjustable brightness guarantee optimal lighting for various surfaces. The ability to capture still images and videos directly to a MicroSD card (up to 32GB) enhances workflow efficiency.

Suitable for

• Electronics repair and PCB inspection
• Jewelry and watchmaking quality control
• Biological and educational demonstrations
• Industrial surface analysis and documentation

Key specifications

• Magnification: 20x - 500x (digital)
• Display: 3.5" TFT LCD
• Image Sensor: 5 Megapixel CMOS
• Still Image Resolution: up to 12M (interpolated)
• Video Resolution: 640x480 (VGA) at 30 fps
• Illumination: 8 white LEDs, adjustable
• Storage: MicroSD card slot (up to 32GB)
• Connectivity: USB 2.0, AV-out
• Power: Rechargeable Li-ion battery (1050 mAh)
• Battery Life: approx. 2.5 hours
• Software: Measurement, calibration, capture (Windows/Mac)

Recommendations

For best results, use the included metal stand to minimize shake. Ensure the MicroSD card is inserted before recording. The software supports Windows XP/Vista/7/8/10 and Mac OS 10.6+. Calibrate the measurement function with a reference object for accurate dimensions.
