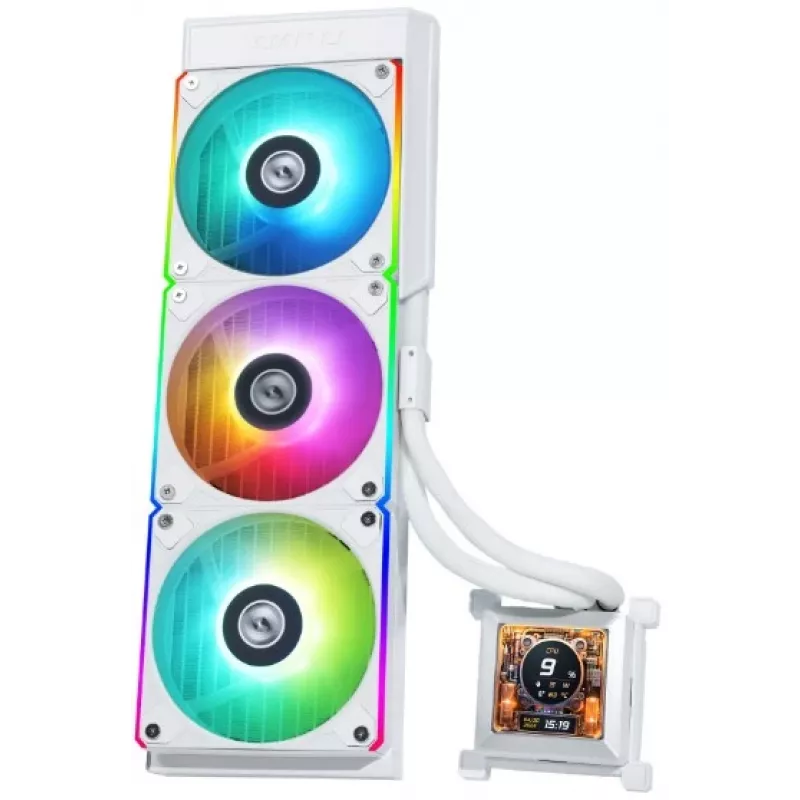

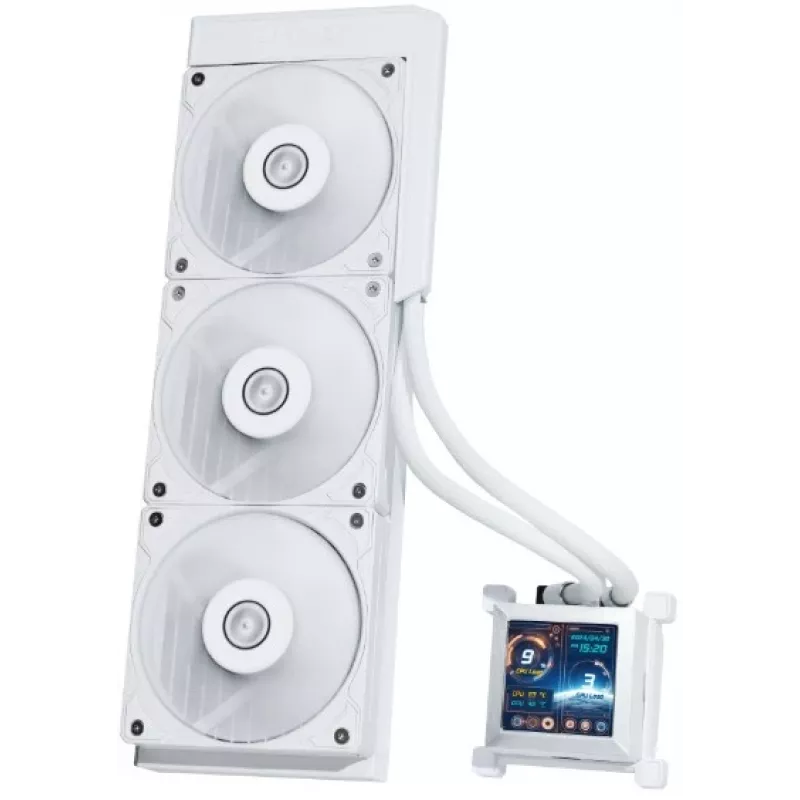

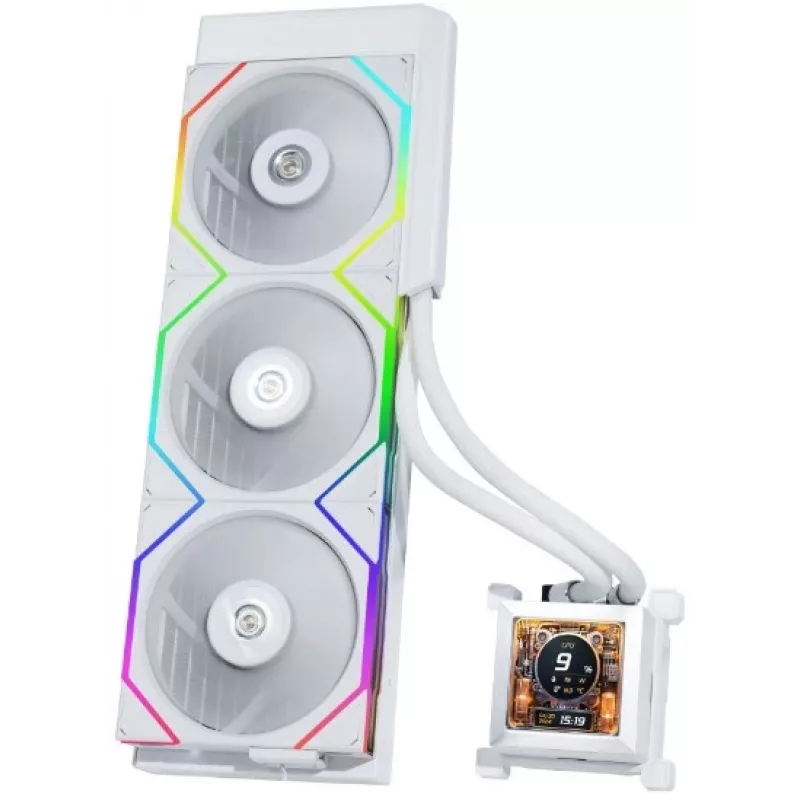

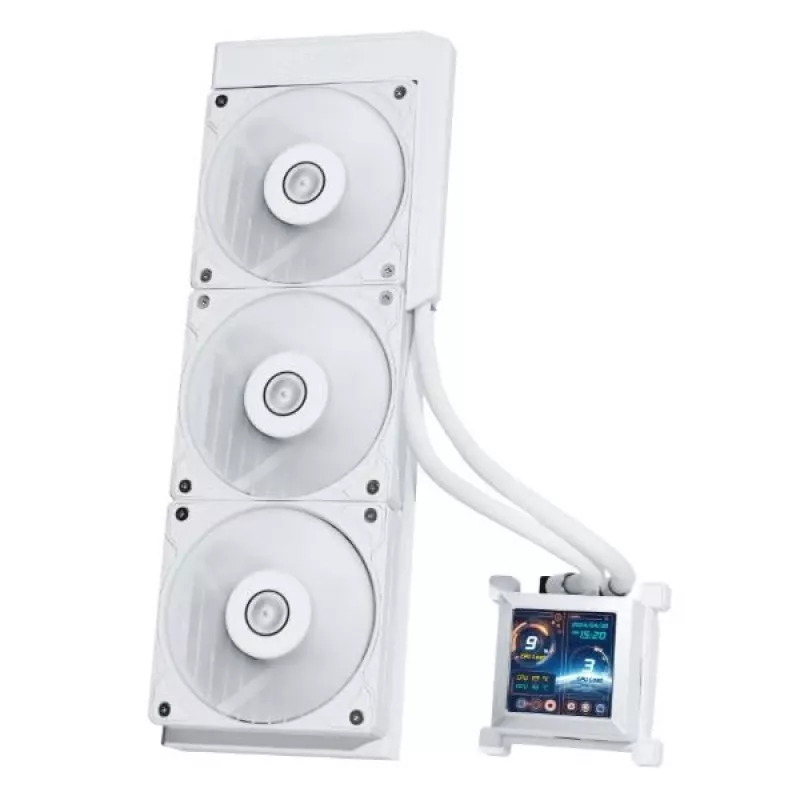

Refrigeración líquida todo en uno Lian Li HSLCD36SW 12 cm Blanco 200–2500 rpm

The Lian Li HSLCD36SW is an all-in-one liquid cooler with a compact, side-mounted coolant pathway that integrates the cooling tubes along the radiator side for a streamlined PC appearance. It includes a 12 cm fan with a speed range of 200–2500 RPM and a fluid dynamic bearing for quieter operation and extended durability. The cooler combines a reduced water chamber design and server-grade ribbed tubes to maintain strong cooling performance in a smaller form factor.

Advantages

The side-mounted design and pre-installed mounting brackets produce a clean, uncluttered installation while an extra bracket supports cases with limited top-mount space. Server-grade ribbed tubes allow tight bends without restricting flow, and integrated cable clips and a pump cover keep tubing and cables organized for a cohesive look. The unit offers an enhanced 480×480, 24-bit color display with 500 nits brightness, real-time monitoring, dynamic visual effects, screenshot and screen-recording features, and multiple themes configurable via L-Connect 3. Cable management is optimized by integrating fan and USB cables into the cooling assembly. The product is backed by a 6-year warranty with leakage-related hardware compensation within three years for non-manmade causes.

Suitable for

• High-performance desktop systems requiring efficient CPU cooling
• Compact builds where reduced radiator and water chamber size are important
• Users who want an integrated visual display for system monitoring

Key specifications

• Brand: Lian Li
• Model / MPN: HSLCD36SW
• Fan size: 120 mm (12 cm)
• Fan speed: 200–2500 RPM
• Maximum airflow: 73.14 CFM
• Bearing type: Fluid dynamic bearing
• Display: 480 × 480 resolution, 24-bit color, 500 nits brightness
• Cable management: Fan and USB cables integrated into pump/tubes
• Warranty: 6 years (leakage hardware compensation within 3 years for non-manmade causes)

How to use

Install the radiator and fans into your case following standard AIO cooler mounting procedures, using the pre-installed brackets to secure the side-mounted tubes. Attach the pump to the CPU socket with the supplied mounting hardware and route the integrated fan and USB cables along the case using the included cable clips. Connect the cooler to the motherboard and power supply, then install L-Connect 3 to configure the display, monitoring layout, themes, and dynamic effects.

Recommendations

For optimal thermal performance and noise control, ensure adequate case airflow, verify compatibility with your case’s top-mount space before installation, and periodically check tube routing and bracket security. Use L-Connect 3 to monitor temperatures and adjust display and fan profiles as needed.
