Regleta de distribución Bachmann DESK 1 3m 3 tomas Schuko negro gris

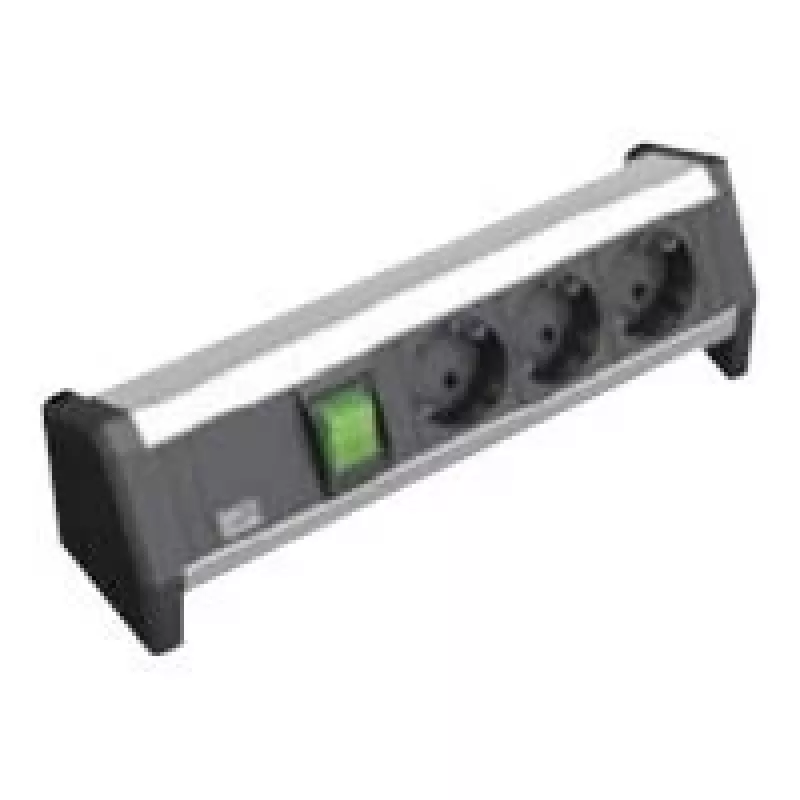

The Bachmann DESK 1 power extension provides three shuttered AC outlets with earthing contact set at a 35° angle and a 3.0 m H05VV-F 3G 1.50 mm² black cable with right-angled earthing contact plug. It includes a 2-pole green illuminated switch, a standard mounting bracket and screws. The unit is designed for desk or workstation use and combines a compact black and grey appearance with practical features for safe mains connection.

Advantages

The angled earthing contact outlets at 35° allow easier access for plugs in tight spaces. Shuttered sockets increase user safety by preventing foreign object insertion. The illuminated 2-pole switch provides a clear on/off indicator and isolates both poles for safer switching. A 3.0 m cable gives flexibility in placement while the right-angled plug reduces cable strain near wall sockets. Included mounting bracket and screws enable fixed installation under desks or on panels.

Suitable for

• Supplying power to computers and peripherals at a workstation
• Powering office equipment such as monitors, printers and chargers
• Mounting under desks, on workbenches or inside small equipment racks

Key specifications

• Brand: Bachmann
• Model: DESK 1 (MPN 339.1001)
• EAN: 4016514018741
• Cable length: 3.0 m (H05VV-F 3G 1.50 mm²)
• AC outlets: 3 shuttered sockets with earthing contact, set at 35°
• Switch: 2-pole, green illuminated
• Plug: right-angled earthing contact plug
• Color: Black, Grey
• Rated mains: 230 V, up to 16 A (per device specifications)

How to use

Position the power extension near the desired workstation and, if required, fix it using the supplied mounting bracket and screws. Connect the right-angled plug to a suitable 230 V mains outlet. Insert equipment plugs into the shuttered 35° angled sockets and operate the green illuminated 2-pole switch to turn power on or off. Ensure the total connected load does not exceed the rated current of the installation.

Recommendations

Use indoors only in dry environments. Do not exceed the rated current; distribute high-power devices across separate circuits if needed. Regularly inspect the cable and plug for damage and disconnect from mains before cleaning or servicing.
