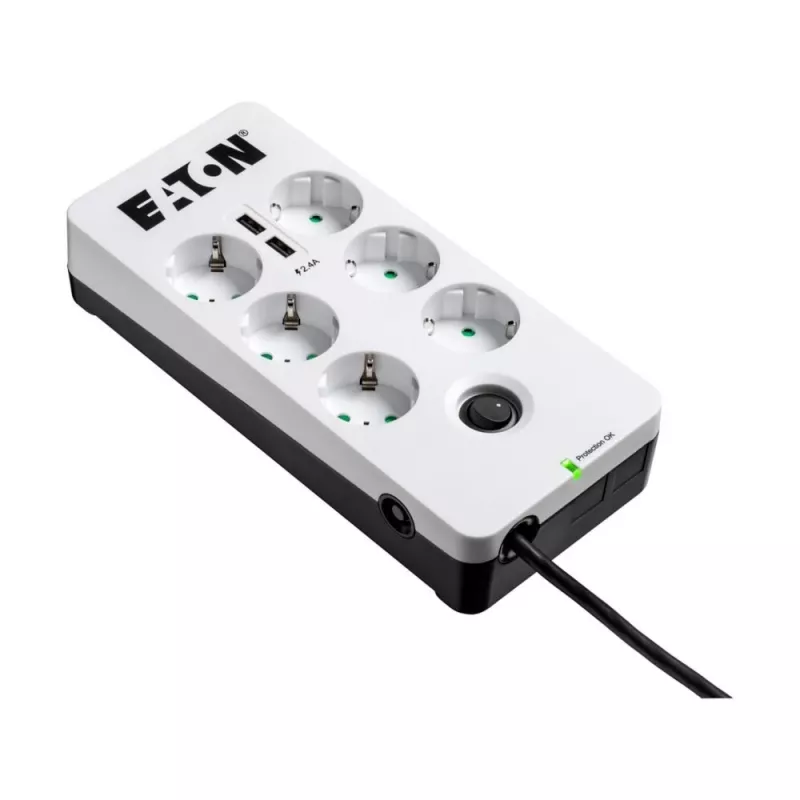

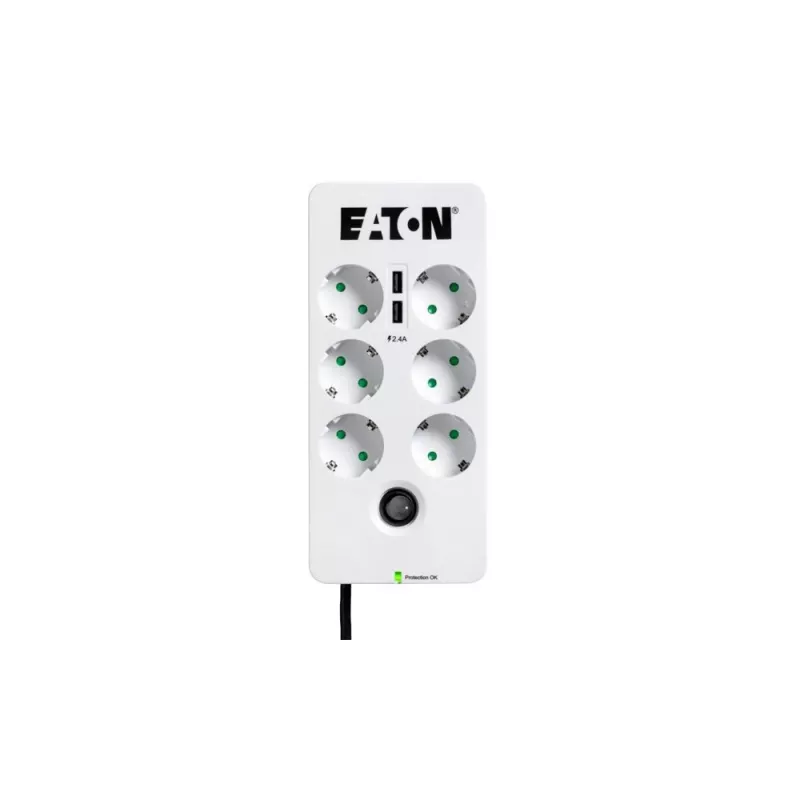

Regleta de enchufes Eaton Protection Box 6 USB DIN

The Eaton Protection Box 6 USB DIN is a compact surge protector designed for installation on DIN rails or for desktop use where six Type F AC outlets and USB charging ports are required. It accepts a nominal input voltage of 220–250 V and provides fast response surge protection with a response time of 0.000001 ms. The unit is available in white and black finishes, features a 1.5 m power cable and a slim housing 110 mm wide, making it suitable for tight spaces in electrical cabinets or workstations. Certified to CE, EAC and CM standards, the product balances space-saving design with essential power distribution and protection functions.

Advantages

The Eaton Protection Box 6 USB DIN offers six Type F AC outlets combined with integrated USB charging to serve multiple devices from a single compact unit. Its very fast surge response time helps limit transient overvoltages to connected equipment. The 1.5 m cable and narrow 110 mm housing allow flexible placement close to equipment racks or on DIN rails, while the device’s certifications (CE, EAC, CM) indicate compliance with relevant safety and conformity requirements. At 0.612 kg, the product is lightweight for easier handling during installation.

Suitable for

• Small office workstations with multiple AC and USB-powered devices
• Electrical cabinets and DIN-rail installations requiring organized power distribution
• Home entertainment setups where compact surge protection is needed
• Light industrial or technical rooms with standard 220–250 V mains

Key specifications

• AC outlets: 6 Type F sockets
• Input voltage: 220–250 V nominal
• Surge response time: 0.000001 ms
• Cable length: 1.5 m
• Width: 110 mm
• Weight: 0.612 kg
• Available colours: White, Black
• Certifications: CE, EAC, CM

How to use

Place the Eaton Protection Box 6 USB DIN on a flat surface or mount it on a compatible DIN rail following the installation guidance in the technical documentation. Connect the unit to the mains supply using the attached 1.5 m cable and plug in devices into the Type F AC outlets and USB ports as required. Ensure that the combined power draw of connected equipment does not exceed the installed circuit capacity. Follow local electrical codes and, if required, have a qualified electrician perform the installation in fixed or rail-mounted setups.

Recommendations

For best performance, install the unit in a dry, ventilated location away from direct heat sources. Regularly inspect connections and the mains cable for wear, and do not use the device if any damage is present. Use within the specified input voltage range (220–250 V) and avoid overloading the outlets by distributing high-current devices across separate circuits when possible.
