Regulador de nivel de amplificador/zonas Omnitronic ELA 6M-Zonen LS-Regler 5W, control de llamada/nivel de 6 zonas, 5 W de salida

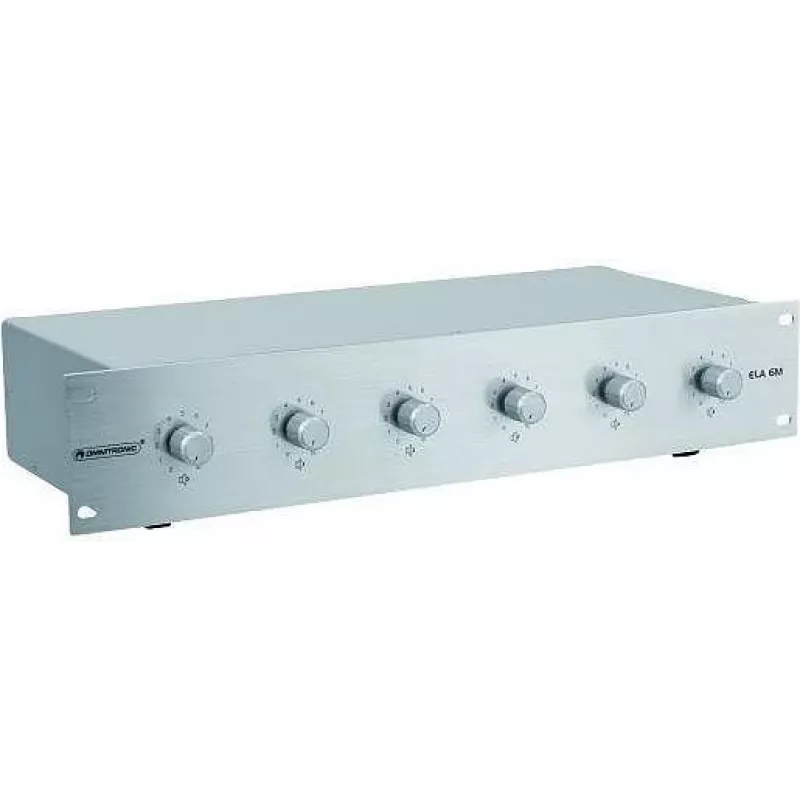

The Omnitronic ELA 6M-Zonen LS-Regler 5W is a compact 6-zone level controller and paging amplifier designed for distributed audio and public address systems. It provides individual level control for six separate zones with a total output power of 5 W, allowing localized volume adjustment and on-site paging within small commercial, retail or venue installations. The unit is intended to integrate into background music and voice evacuation setups where multiple areas require different output levels.

Advantages

The device combines zone-specific level control with paging capability in a single compact housing, enabling straightforward management of audio levels across six zones without separate amplifiers for each area. Its 5 W output makes it suitable for low-power installations where clear voice reproduction and background audio are required. Installation and wiring are simplified by the dedicated zone outputs and controls, allowing quick configuration and adjustment on site.

Suitable for

Key specifications

How to use

Mount the unit in a suitable location near the audio source and connections for the target zones. Connect the input from the audio source or paging console to the device input, then run speaker or line outputs to each of the six zones. Use the individual zone level controls to set the required volume for each area. For paging, route the microphone or paging console input to the amplifier and adjust the zone levels as needed to ensure clear intelligibility in occupied areas. Follow local wiring standards and ensure power and speaker loads are compatible with the installation.

Recommendations

For reliable operation, use the Omnitronic unit within its intended low-power application range, place it in a ventilated location away from heat sources, and verify speaker impedance and cable lengths during installation to maintain audio clarity and prevent overload conditions.
