Regulador de volumen giratorio Omnitronic 80711003

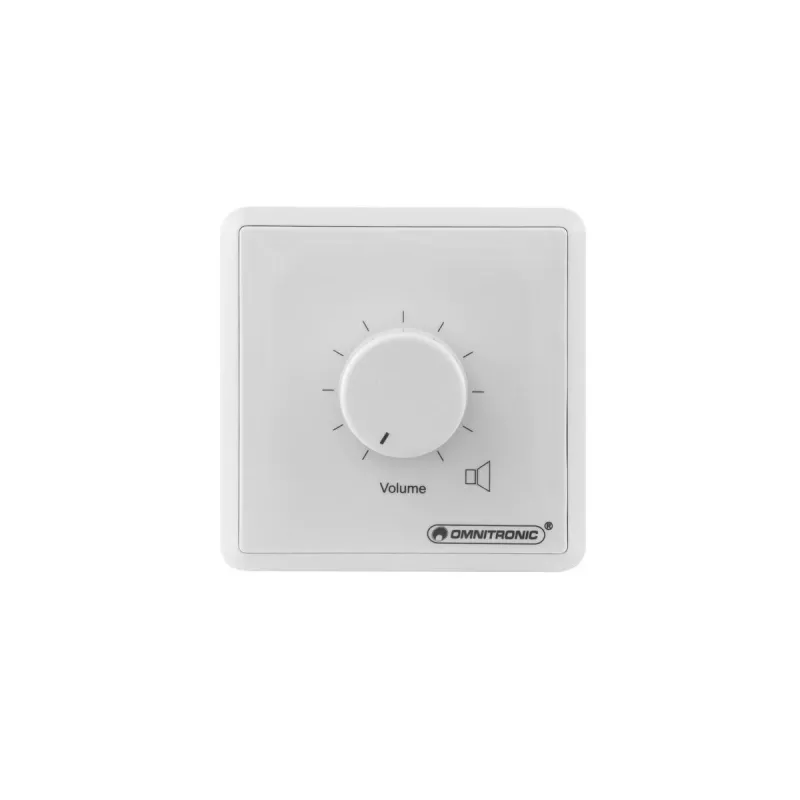

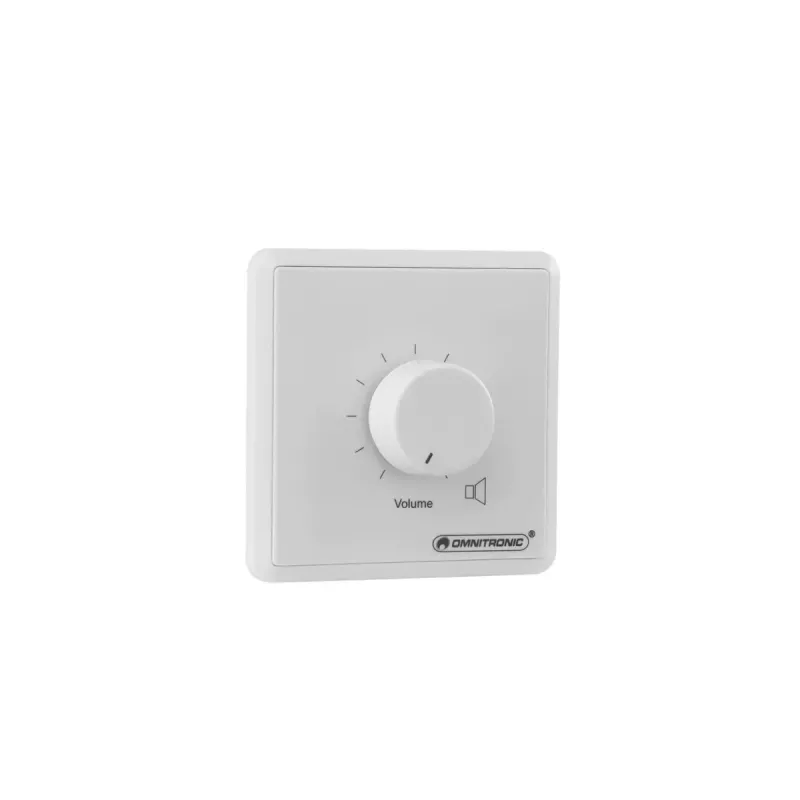

The Omnitronic 80711003 is a wall-mountable rotary PA volume controller with integrated 24 V emergency priority relay, designed for simple level control in public-address and background-music systems. It has a rated power handling of 20 W, covers a frequency range from 50 Hz to 18 kHz and accepts a maximum input voltage of 24 V. The compact white housing (80 x 67 x 80 mm) allows discreet installation on walls and in small control locations.

Advantages

The unit provides reliable, manual volume adjustment for PA and paging systems while supporting emergency priority via a 24 V relay. Its modest power rating and wide frequency response suit voice and music reproduction. The small footprint and neutral white finish make it easy to integrate into different interiors and mounting locations.

Suitable for

Key specifications

How to use

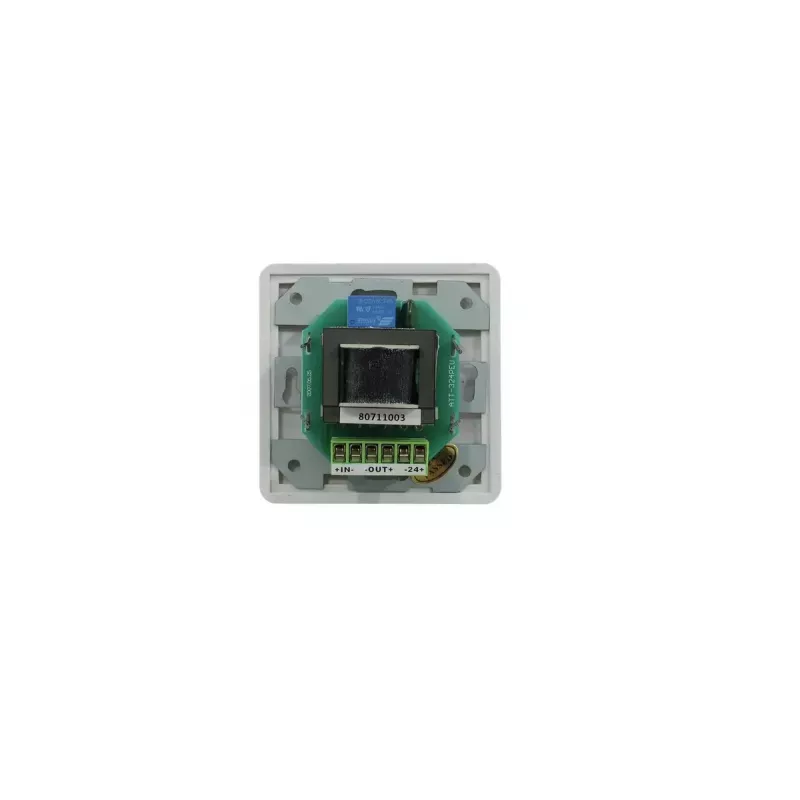

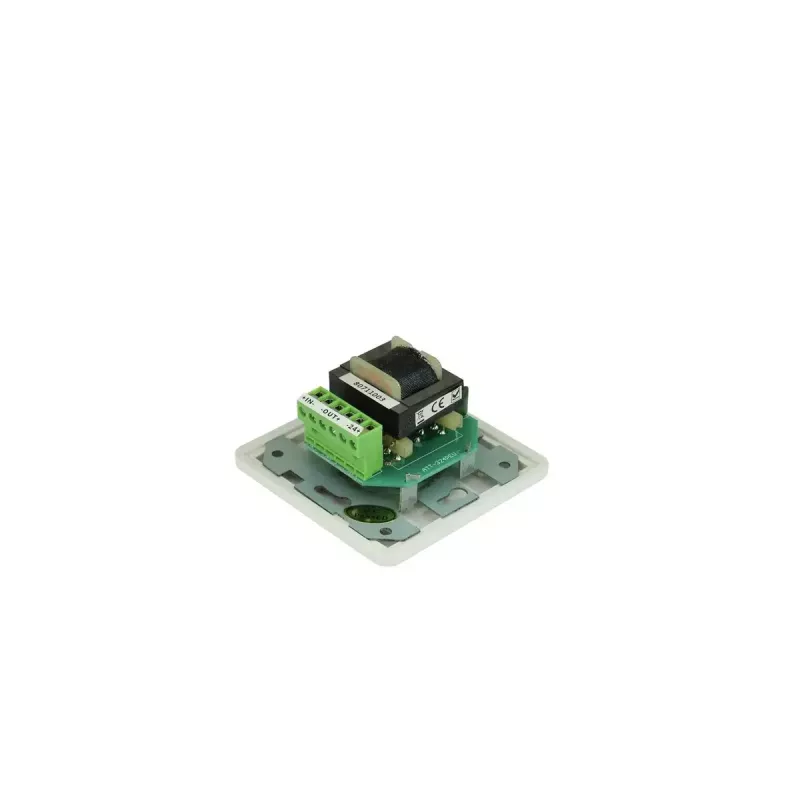

Install the rotary volume control on a suitable wall surface using appropriate screws and mounting hardware. Connect the audio input and output according to the system wiring diagram, ensuring the controller is rated appropriately for the connected amplifier and speaker load. Wire the 24 V emergency priority circuit so that an emergency signal can override the local volume when activated. Adjust the volume by turning the rotary knob to the desired level.

Recommendations

Ensure the controller is used within its rated power and voltage limits and that wiring complies with local electrical and safety regulations. For best performance, pair with compatible PA amplifiers and confirm that the emergency priority wiring is tested during installation.
