Regulador de volumen giratorio Omnitronic 80711092

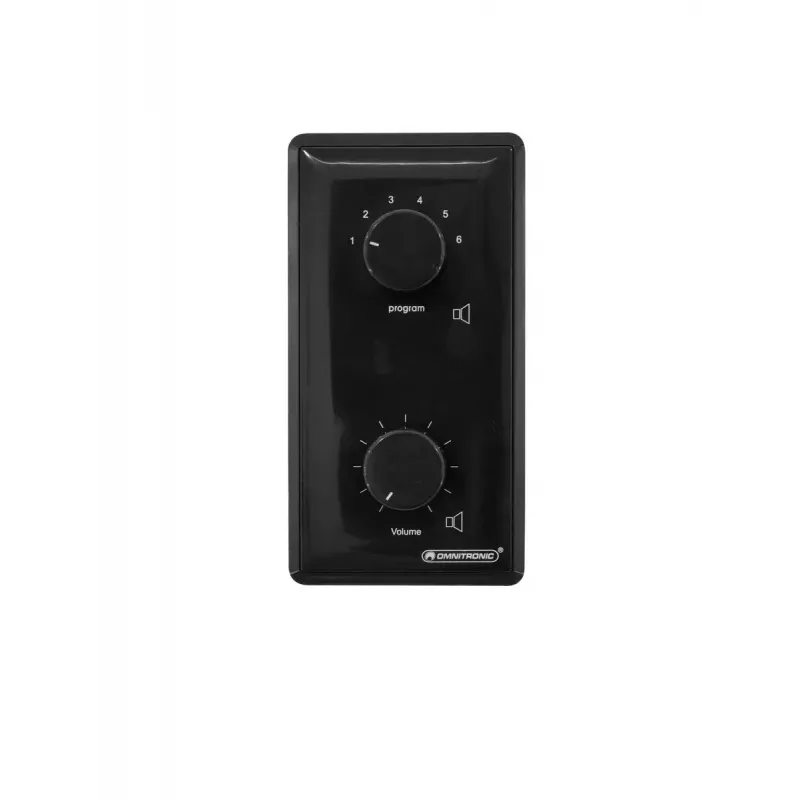

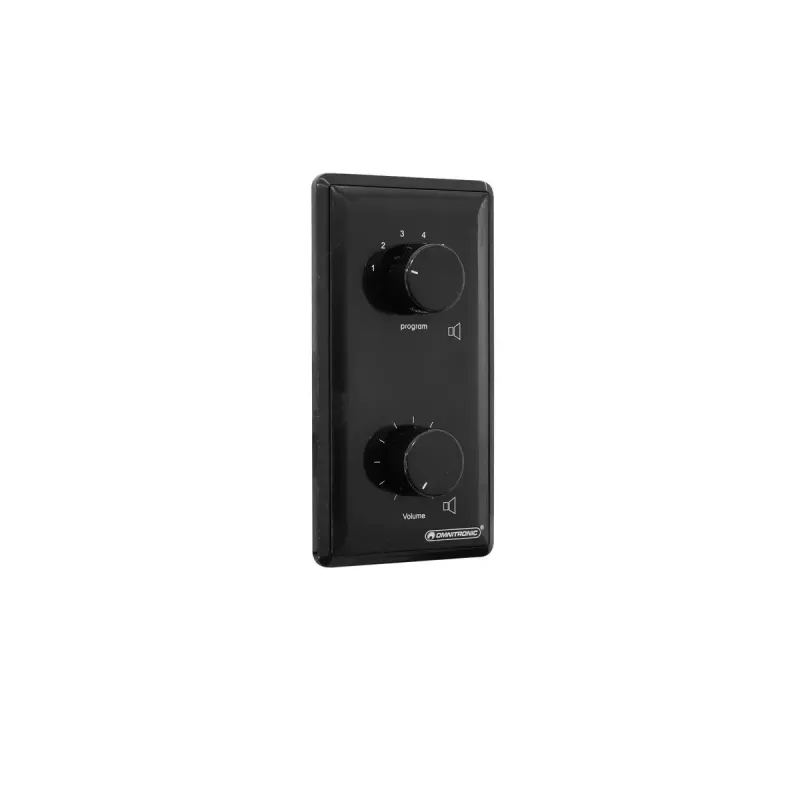

The Omnitronic 80711092 is a wall-mountable rotary PA program selector and volume controller designed for public address systems. It handles up to 45 W, accepts a maximum input voltage of 24 V and covers an audio frequency range from 50 to 18,000 Hz. The unit is housed in a compact black enclosure (80 × 67 × 154 mm) for straightforward installation in control rooms, corridors or wall panels.

Advantages

The device combines program selection and level control in a single wall-mounted unit, saving space while simplifying operation. Its 24 V emergency priority relay ensures compatibility with PA emergency systems. With a rated power handling of 45 W and a wide frequency response, it reliably manages spoken announcements and general audio playback. The compact dimensions and black finish provide discreet integration into various environments.

Suitable for

Key specifications

How to use

Mount the unit on a suitable wall surface or flush-mount box and connect audio input and speaker output according to the system wiring diagram. Provide a 24 V control line if using the emergency priority relay feature. Use the rotary control to select the active program and adjust the output level to the required volume. Verify wiring and settings before putting the device into regular operation.

Recommendations

For reliable performance, install the Omnitronic 80711092 in a dry, ventilated location and ensure the connected speakers and amplifier do not exceed the 45 W rating. Test the 24 V emergency priority function during system commissioning to confirm correct integration with the PA emergency system.
