Regulador giratorio con control de volumen Omnitronic 80711095

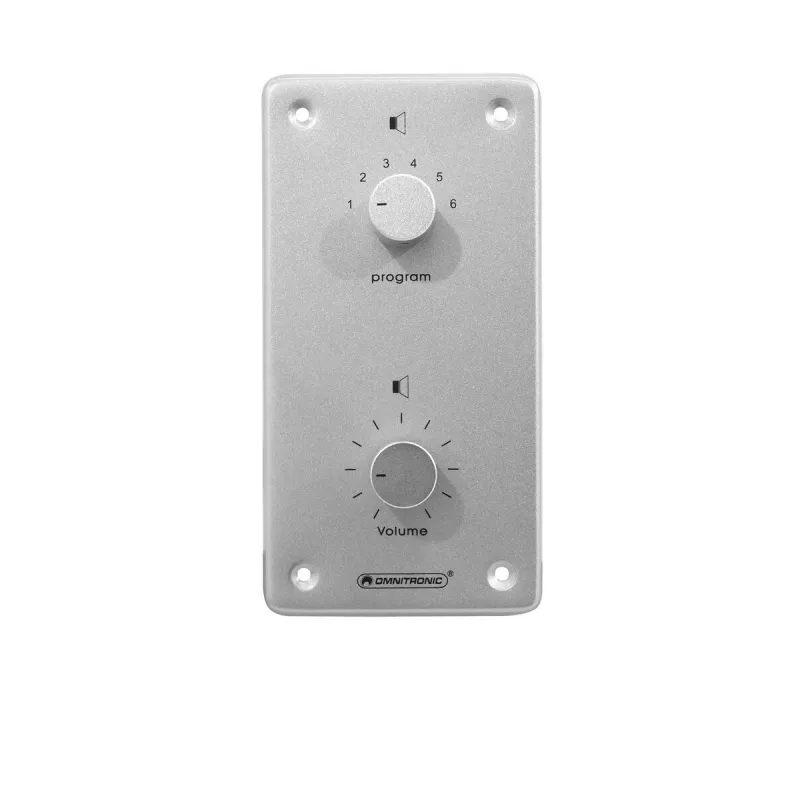

The Omnitronic 80711095 is a mountable PA program selector and rotary volume control designed for wall installation. It provides up to 10 W power handling and accepts input voltages up to 24 V. The unit covers an audio frequency range of 50–18,000 Hz and has a compact white housing measuring 80 mm (W) × 67 mm (D) × 154 mm (H), suitable for integration into public-address and background-music systems.

Advantages

The Omnitronic 80711095 combines program selection with a rotary volume control in a single, space-saving wall-mounted enclosure. Its 24 V emergency priority relay allows integration with emergency paging systems. The wide frequency response supports clear speech and background music reproduction, while the compact dimensions and neutral white finish simplify installation and aesthetic integration.

Suitable for

Key specifications

How to use

Install the unit on a standard mounting surface or wall box, ensuring secure mechanical fastening and proper access to wiring. Connect audio input and output wiring according to system topology and respect polarity. Wire the 24 V emergency priority relay into the paging/emergency system following the system manufacturer’s wiring diagram. After connections, set the desired program source and adjust the rotary knob to the required volume. Verify operation at low volume before normal use.

Recommendations

Use the Omnitronic 80711095 within its specified frequency and power limits. For reliable emergency-priority operation, connect the 24 V relay only to approved emergency paging circuits and test the relay function periodically. Avoid exposing the unit to moisture and excessive heat; perform installation according to local electrical and safety codes.
