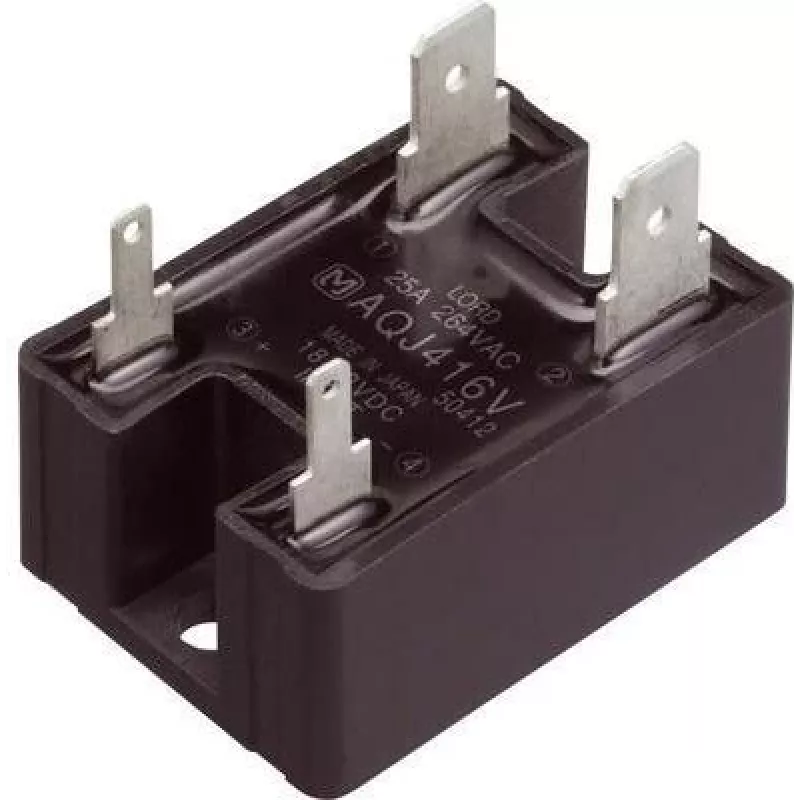

Relé de estado sólido Panasonic AQJ419VJ, conmutación por cruce por cero, corriente de carga máx. 25 A, tensión de conmutación máx. 264 V AC

Panasonic AQJ419VJ is a solid-state relay for AC switching with zero-cross detection, intended for silent, wear-free control of resistive and inductive AC loads. It supports a maximum load current of 25 A and a maximum switching voltage of 264 V AC, making it suitable for industrial control panels, automation systems and heating or motor control applications where mechanical relay contact wear and switching noise are undesirable.

Advantages

The zero-cross switching method reduces inrush current and electromagnetic interference at the moment of turn-on, improving longevity of connected equipment. Solid-state construction eliminates mechanical contacts, providing silent operation and high switching frequency capability. Compact package and standardized mounting allow integration into control cabinets and automation modules with minimal vibration sensitivity.

Suitable for

• Switching resistive heating elements and electric heaters
• Controlling AC motors and fans with reduced switching transients
• Industrial automation panels and PLC output stages
• Lighting and stage equipment where silent switching is required
• Applications requiring long service life and low maintenance

Key specifications

• Operating mode: zero-cross AC switching
• Maximum load current: 25 A
• Maximum switching voltage (AC): 264 V
• Load type: AC resistive and inductive loads
• Switching behaviour: solid-state (semiconductor) with no mechanical contacts

How to use

Install the relay on a suitable heatsink or panel according to thermal dissipation requirements and follow the manufacturer's recommended mounting orientation. Wire the AC load and supply lines to the designated load terminals, and connect the control input to the specified control voltage source using proper polarity and isolation practices. Ensure that the connected load current and voltage do not exceed the specified limits and that ambient temperature and ventilation meet thermal constraints for reliable operation.

Recommendations

Use appropriate snubber networks or RC suppression when switching highly inductive loads to limit voltage spikes, and provide adequate heat sinking when operating near the maximum rated current. Verify the application's inrush current and consider soft-start measures if required; ensure control circuitry provides correct input signal levels for reliable zero-cross switching.
