Relé eléctrico ALLNET ALL4427 blanco

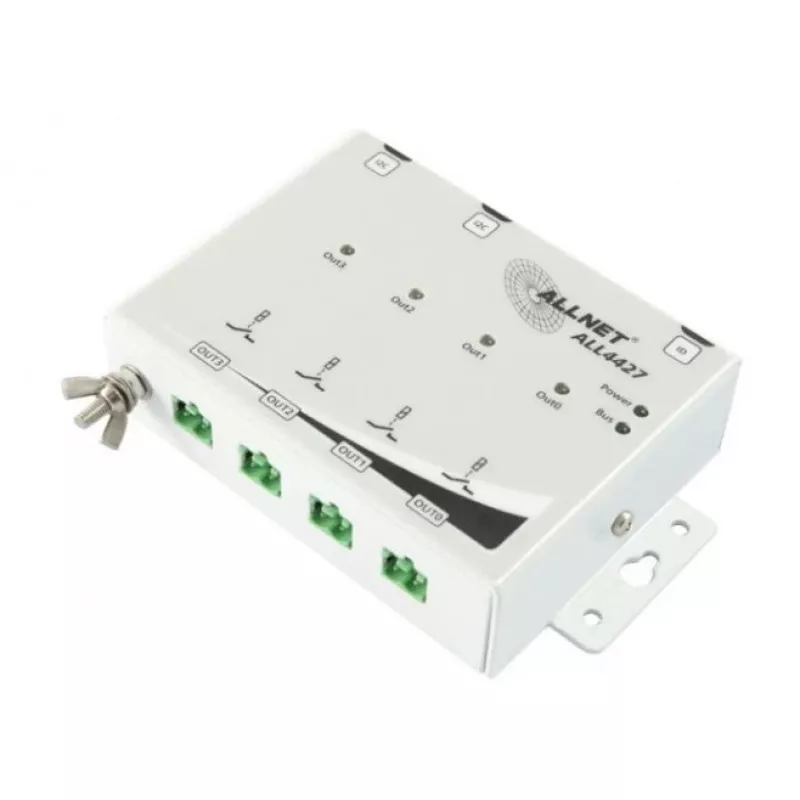

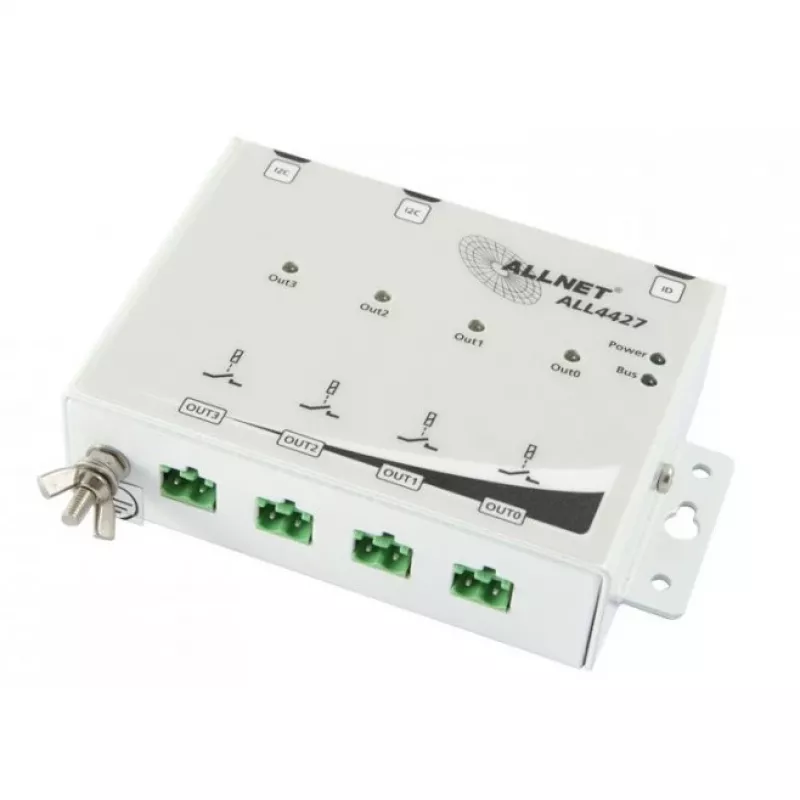

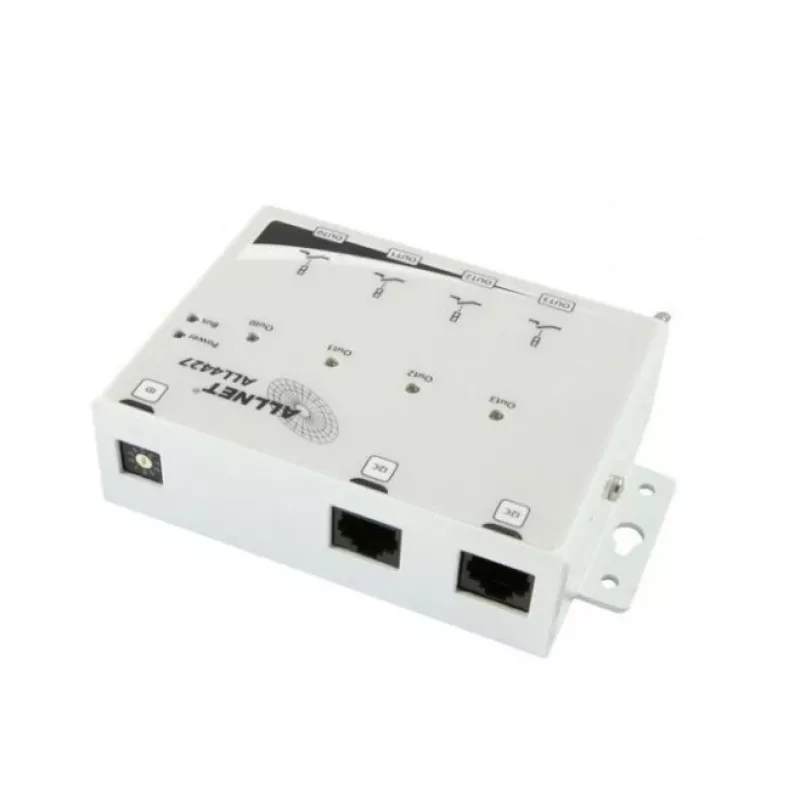

The ALLNET ALL4427 White is a compact 4-port relay output module in a metal case designed for mounting on a wall. Compatible with ALL3418v2, ALL3500, ALL4500 and ALL5000 series devices, it provides reliable switching of AC circuits up to 250 V and 10 A per relay. The unit is finished in white and intended for use where a durable relay output module with a neat appearance is required.

Advantages

The metal housing offers mechanical protection and supports wall-mount installation. Four independent relay channels allow separate ON/OFF control of multiple circuits. Each relay is rated for switching 250 V AC at up to 10 A, suitable for a variety of loads. The compact design simplifies installation in control panels or small electrical enclosures.

Suitable for

• Remote switching of lighting circuits
• Control of small motors and pumps within the 10 A limit
• Integration with ALL3418v2 / ALL3500 / ALL4500 / ALL5000 systems
• Home automation and building control projects

Key specifications

• Brand: ALLNET
• Model / MPN: ALL4427
• EAN: 4038816988256
• Number of relay outputs: 4
• Switching capacity: 250 V AC, 10 A per relay
• Housing: metal, wall-mount option
• Compatible with: ALL3418v2, ALL3500, ALL4500, ALL5000 (not compatible with older ALL3000/ALL4000 series)

How to use

Mount the ALL4427 on a suitable wall or inside an electrical enclosure using the built-in fixing points. Connect control inputs and the load circuits according to the wiring diagram provided by the system you integrate with (ALL3418v2 / ALL3500 / ALL4500 / ALL5000). Ensure all power is disconnected before wiring. After installation, apply power and operate each relay via the compatible controller to switch the connected loads ON or OFF. Follow standard electrical safety procedures during installation and commissioning.

Recommendations

Do not exceed the specified 10 A per relay and 250 V AC limits. Verify compatibility with your controller series before installation and avoid using the unit with older ALL3000 or ALL4000 series devices. For permanent installations, secure wiring and use appropriately rated protective devices (fuses or circuit breakers).
