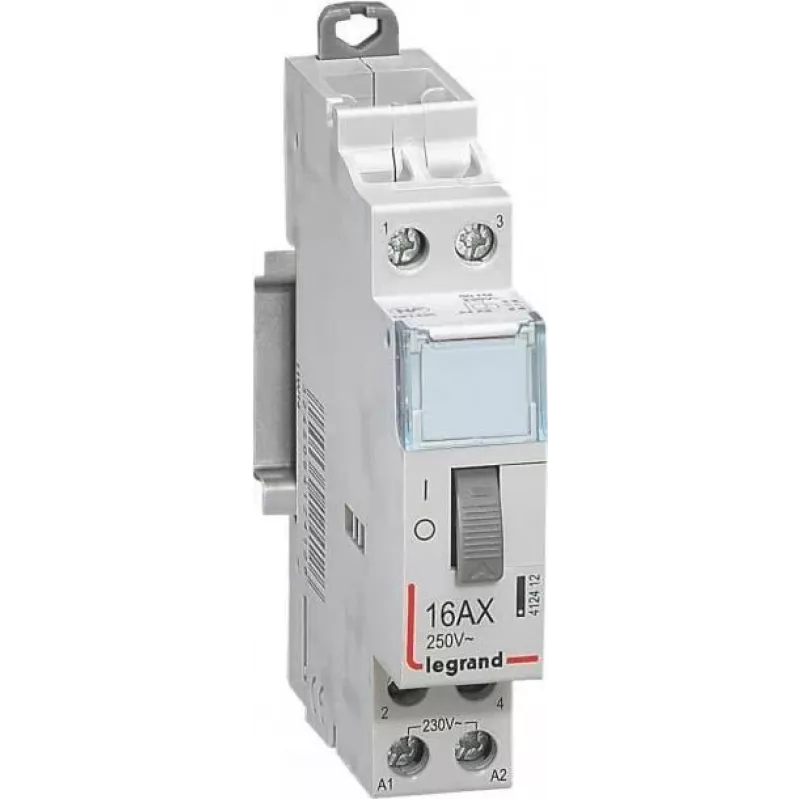

Relé eléctrico Legrand 412412 multicolor 125 g

The Legrand 412412 multicolour electrical relay is a single-module latching relay designed for control circuits and switching applications. It complies with EN 60669-2-2 and provides two normally open contacts with a control voltage of 230 V. The relay supports installation with up to two auxiliary devices and is supplied in a compact 1-module format; weight approximately 125 g.

Advantages

This Legrand relay adheres to the EN 60669-2-2 standard, offers reliable switching with two N/O contacts, and operates on a 230 V control voltage. Its single-module size saves DIN-rail space, while support for up to two auxiliary devices allows flexible system configuration. The multicolour design aids in visual identification during installation and maintenance.

Suitable for

Key specifications

How to use

Mount the relay on a compatible DIN rail or into the designated panel location according to the installation instructions. Connect the control supply of 230 V to the control terminals and wire the load to the two normally open contacts. If auxiliary devices are required, install no more than two per latching relay and verify correct wiring before energising. Follow local electrical codes and safety procedures during installation and testing.

Recommendations

Use the Legrand 412412 relay within its specified ratings, ensure correct polarity and tight terminal connections, and perform functional tests after installation. Replace auxiliary devices or the relay only when the circuit is de-energised.
