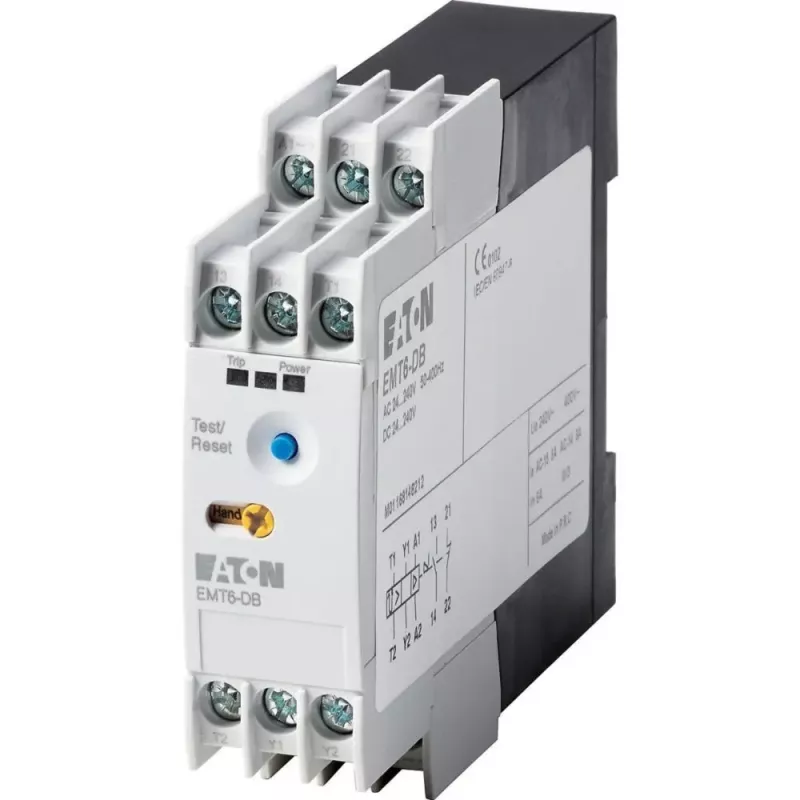

Relé electrónico de protección de motor Eaton EMT6-DB 0,3-1,5A 24-240V AC/DC, negro/blanco 066167

With a rated operational voltage up to 690 V AC, the Eaton EMT6-DB electronic motor protection relay delivers reliable protection for three-phase motors in demanding industrial environments. This compact device combines overload, phase failure, phase unbalance, and locked rotor protection in a single unit, ensuring maximum uptime and safety.

Overview

The Eaton EMT6-DB is part of the proven EMT6 series, designed for direct mounting on contactors or standalone installation with an adapter. It features a wide control voltage range of 24-240 V AC/DC, making it suitable for global applications. The relay offers a fixed CLASS 10 overload release, providing fast and accurate tripping under overload conditions. Its auxiliary contact configuration of 1 NO + 1 NC allows flexible integration into control circuits.

What stands out

• Comprehensive protection: overload, phase failure, phase unbalance, and locked rotor.
• Wide control voltage range: 24-240 V AC/DC for versatile use.
• LED indication for operational status and trip events.
• Manual, automatic, and remote reset options for flexible operation.
• Compact design with IP20 protection and screw terminals for easy wiring.

Technical details

• Product type: Electronic motor protection relay
• Current setting range: 0.3 - 1.5 A
• Rated operational voltage: up to 690 V AC
• Control circuit voltage: 24-240 V AC/DC
• Overload release class: CLASS 10 (fixed)
• Auxiliary contacts: 1 NO + 1 NC
• Reset type: Manual, automatic, remote
• Mounting: Direct on contactor or stand-alone with adapter
• Degree of protection: IP20
• Connection type: Screw terminals
• Operating temperature range: -25 to +60 °C
• Standards: IEC/EN 60947-4-1, UL, CSA
• Number of poles: 3-pole
• LED indicators: Operational, trip

Our verdict

The Eaton EMT6-DB is a robust and versatile motor protection relay that offers comprehensive protection in a compact package. Its wide voltage range and multiple reset options make it suitable for a wide range of industrial applications. With reliable performance and compliance with international standards, it is an excellent choice for safeguarding your motors.
